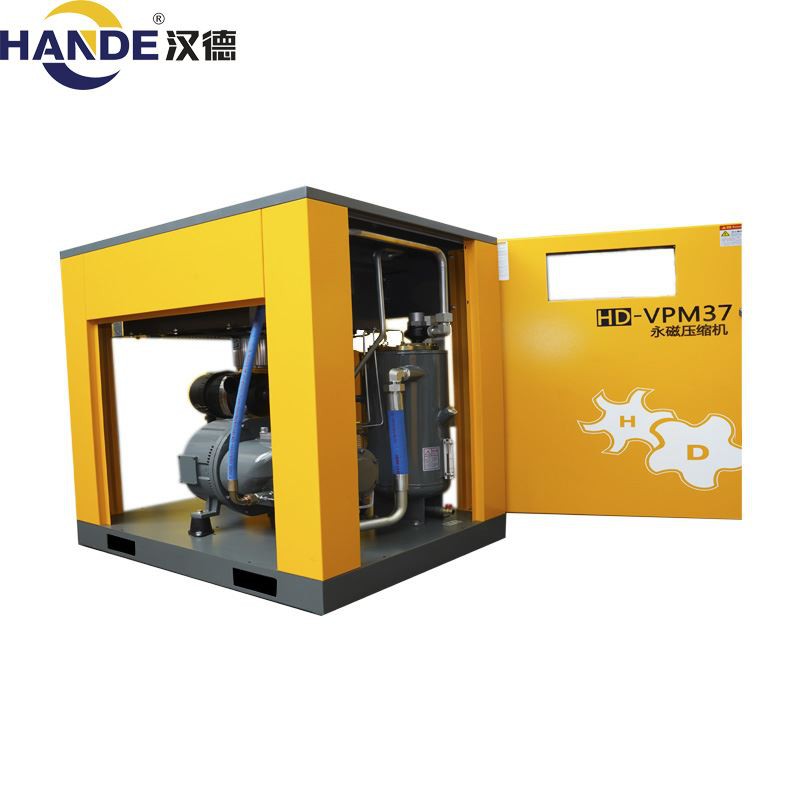

Compressor Line

1.Use enhanced energy saving screw air compressor reached the super energy saving level.

2.The energy consumption is 10%~15% lower than normal.

3.Air compressor design with several types of technology patent, real bigger air flow.

4.State-of-the-art screw element, original air end.

Rules to be followed in the use of air compressors

1. The operating environment of the air compressor should be kept clean and dry. The gas tank must be placed in a well-ventilated place, and no welding or thermal processing operations are allowed within a radius of 15mm. compressor line

2. Gas storage tanks and gas pipelines should be tested for hydraulic pressure once every two years, and pressure gauges and safety valves should be calibrated at least once a year.

3. Starting the air compressor must be carried out in a no-load state. After it runs normally, it will gradually enter the load operation.

4. Before opening the air supply valve, the gas pipeline should be connected. The gas pipeline should be kept unobstructed and not twisted and the relevant personnel can be notified. No one is allowed to work or stand in front of the air outlet. The gas storage tank should be placed in In a ventilated place, special sunlight and high-temperature baking are strictly prohibited. compressor line

5. The maximum pressure in the gas storage tank should not exceed the nameplate, and the safety valve should be sensitive and effective.

6. There should be no abnormal noise or overheating of the intake and exhaust valves, bearings and various parts.

7. When one of the following situations is found, stop and check immediately, find out the reason and wait until the fault is rectified before working: water mixing, air leakage, leakage or sudden interruption of cooling water; the indication value of pressure gauge, temperature gauge, and ammeter exceeds the regulations; The exhaust pressure suddenly rises, the exhaust valve and the safety valve fail; the machine has abnormal noise or the motor brush has strong sparks. compressor line

8. If the cylinder is overheated and shut down due to water shortage during operation, cold water cannot be added immediately, and water must be added after the cylinder body naturally cools down to below 60°C.

9. The installation of the electric air compressor power cord must meet the requirements of safe electricity usage, repeated grounding is firm, and the electric shock protector is sensitive. In case of a power failure during operation, the power supply should be cut off immediately and restarted after the power is received.

10. When stopping, first remove the load, then disconnect the main clutch; then stop the operation of the internal combustion engine or electric motor.

11. After shutting down, close the cooling water valve, open the air release valve, and release the oil, water and gas in the various coolers and gas storage tanks. When the temperature is lower than 5℃, the water in all parts should be drained before it can go high. compressor line

12. When using compressed air to blow parts, it is strictly forbidden to aim the air outlet at the human body or other equipment.

13. After the work is completed, release the remaining air in the gas storage tank. Cooling water should be discharged in winter.
