| Model | HD-VPM22 | ||
| Working pressure: | 8bar | 10bar | 12bar |
| Air Delivery (m³/min) | 3.6 | 3.2 | 2.7 |
| Air Delivery (CFM) | 127 | 113 | 95 |
| Motor power | 30HP/22KW | ||
| Power voltage: | 380V/50hz/3phase (different voltage is available) | ||
| Compressor type: | Permanent magnet variable speed screw air compressor | ||
| Cooling Mode | Air cooling | ||
| Starting mode | Variable Frequency start | ||
| Ambient temperature | -5℃ ~ +45℃ | ||
| Discharge temperature | ≤Ambient temperature+15℃ | ||
| Dimension (mm) | 1080*850*1200 |

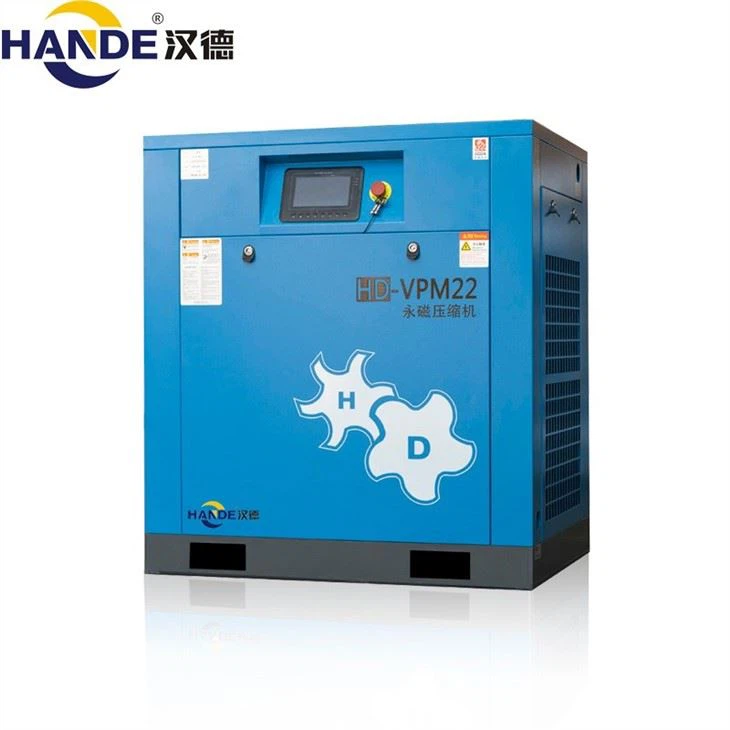

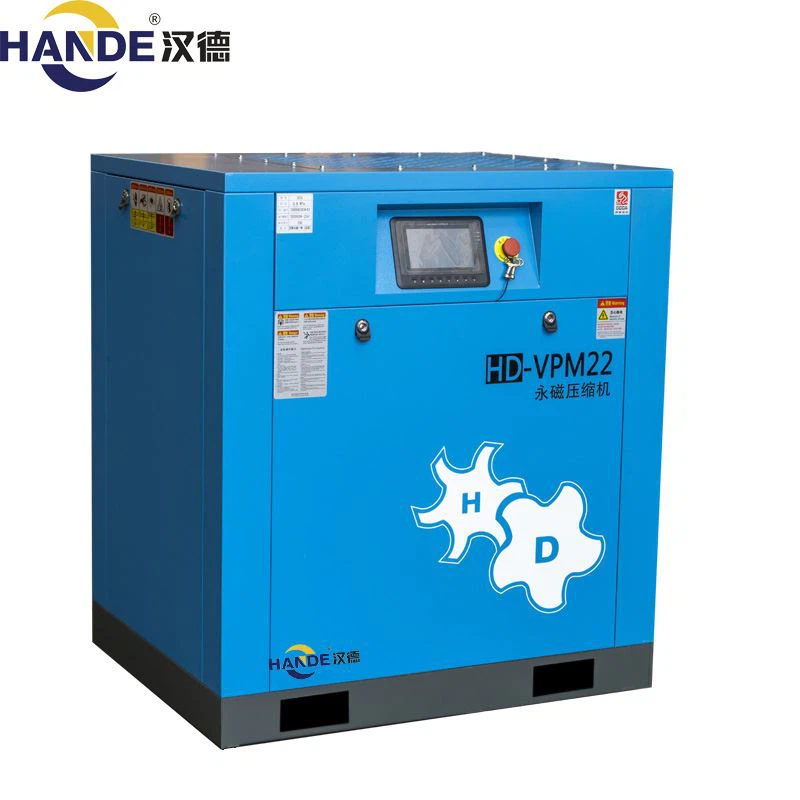

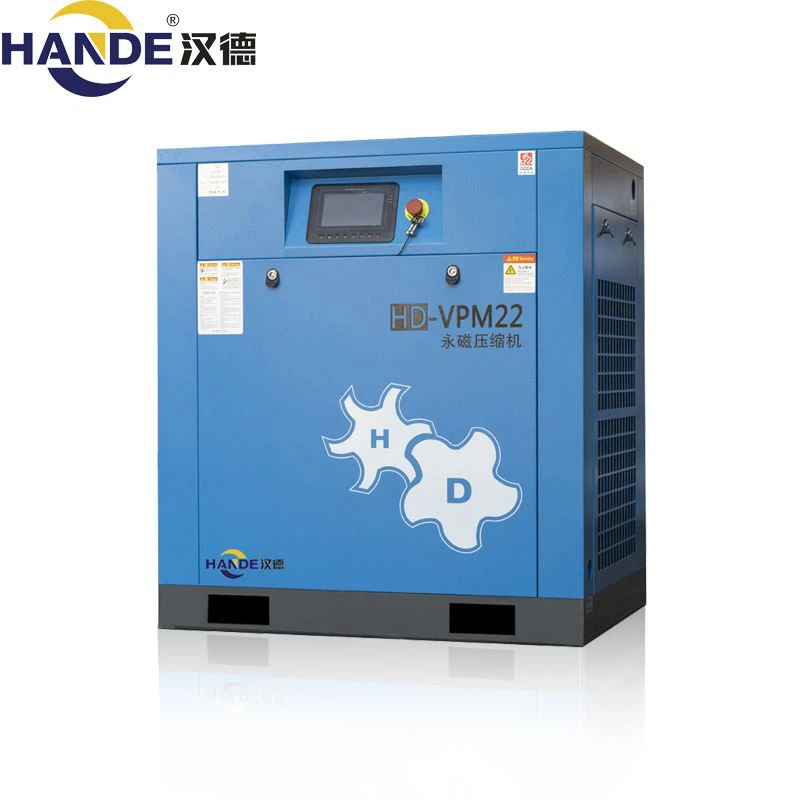

| Product display： |
| Product Description |
Screw Air Compressor Distributor is one of many air compressors, which is a spiral type. It has a rotating main screw and a sub-screw inside. The sub-screw is mainly used to rotate and inhale air for compression and discharge to achieve air compression. It has the advantages of high performance, high efficiency, maintenance-free, high reliability, etc. And just because of its advantages, Screw Air Compressor Distributor is widely used by all walks of life and provides high-quality compressed air for all walks of life.
| Features |
1. Screw Air Compressor Distributor is made of stainless steel, which makes it has good corrosion resistance.
2. With internal lubrication, the main screw can directly drive the auxiliary screw.
3. It has the advantages of high stability, high efficiency, low vibration and low noise.
4. Compared with the piston engine, this compressor has fewer wearing parts and lower failure rate.
