Technical Parameter Table of E-Series PM VFD Screw Air Compressor With Centrifugal Fan：
| 机型Model 参数Parameters | EHD-VPM7D5 | EHD-VPM11 | EHD-VPM15 | EHD-VPM18D5 | EHD-VPM22 | EHD-VPM30 | EHD-VPM37 | EHD-VPM45 | |
| 排气量/排气压力（m³/min/Mpa） F.A.D/Max Pressure | 1.1/0.8 | 1.8/0.8 | 2.2/0.8 | 3.0/0.8 | 3.6/0.8 | 5.0/0.8 | 6.3/0.8 | 7.3/0.8 | |
| 0.9/1.0 | 1.5/1.0 | 2.0/1.0 | 2.7/1.0 | 3.2/1.0 | 4.5/1.0 | 5.6/1.0 | 6.6/1.0 | ||
| 0.72/1.2 | 1.2/1.2 | 1.7/1.2 | 2.1/1.2 | 2.7/1.2 | 3.6/1.2 | 4.5/1.2 | 5.2/1.2 | ||
| 环境温度 Ambient Temperature | ℃ | 一5～+45 | |||||||
| 冷却方式 Cooling Mode | 风冷/Air-cooling | ||||||||
| 排气温度 Discharge Temperature | ℃ | ≤环境温度+15℃/Ambient Temperature+15℃ | |||||||
| 润滑油量 Lubricant Oil | 升Liter | 4 | 10 | 16 | 22 | ||||
| 噪音Noise | Db(A) | 66±2 | 66±2 | 66±2 | 68±2 | 68±2 | 72±2 | 72±2 | 72±2 |
| 驱动方式 Drive Mode | 永磁同步/Permanent Magnet Synchronous | ||||||||
| 电源Voltage | 380V/50Hz/3Ph | ||||||||
| 功率Power | KW | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
| 启动方式 Start Mode | 变频启动/Variable Frequency Start | ||||||||
| 外型尺寸 Dimensions | 长Length mm | 900 | 1180 | 1180 | 1300 | 1300 | 1440 | 1440 | 1440 |
| 宽Width mm | 670 | 790 | 790 | 930 | 930 | 980 | 980 | 980 | |
| 高Height mm | 880 | 1230 | 1230 | 1360 | 1360 | 1540 | 1540 | 1540 | |
| 重量Net Weight | kg | 170 | 225 | 231 | 291 | 308 | 324 | 505 | 507 |
| 出口管径 Outlet Pipe Diameter | inch | Rp1/2 | Rp3/4 | Rp3/4 | Rp1 | Rp1 | Rp1-1/2 | Rp1-1/2 | Rp1-1/2 |
| 机型Model 参数Parameters | EHD-VPM55 | EHD-VPM75 | EHD-VPM90 | EHD-VPM110 | EHD-VPM132 | EHD-VPM160 | EHD-VPM185 | EHD-VPM220 | |
| 排气量/排气压力（m³/min/Mpa） F.A.D/Max Pressure | 9.2/0.8 | 12.6/0.8 | 15.0/0.8 | 19.8/0.8 | 23.2/0.8 | 26.6/0.8 | 30.4/0.8 | 38.2/0.8 | |
| 8.2/1.0 | 11.0/1.0 | 13.8/1.0 | 16.8/1.0 | 20.5/1.0 | 22.6/1.0 | 26/1.0 | 33.2/1.0 | ||
| 7.1/1.2 | 9.5/1.2 | 12.3/1.2 | 14.8/1.2 | 17.4/1.2 | 19.5/1.2 | 22.8/1.2 | 30.5/1.2 | ||
| 环境温度 Ambient Temperature | ℃ | 一5～+45 | |||||||
| 冷却方式 Cooling Mode | 风冷/Air-cooling | ||||||||
| 排气温度 Discharge Temperature | ℃ | ≤环境温度+15℃/Ambient Temperature+15℃ | |||||||
| 润滑油量 Lubricant Oil | 升Liter | 48 | 65 | 72 | 90 | 125 | |||
| 噪音Noise | Db(A) | 78±2 | 83±2 | 85±2 | 88±2 | ||||
| 驱动方式 Drive Mode | 直联/Direct Drive | ||||||||
| 电源Voltage | 380V/50Hz/3Ph | ||||||||
| 功率Power | KW | 55 | 75 | 90 | 110 | 132 | 160 | 185 | 220 |
| 启动方式 Start Mode | 变频启动/Variable Frequency Start | ||||||||
| 外型尺寸 Dimensions | 长Length mm | 2200 | 2200 | 2300 | 2300 | 2300 | 2500 | 3600 | 3600 |
| 宽Width mm | 1450 | 1450 | 1470 | 1470 | 1470 | 1470 | 2100 | 2100 | |
| 高Height mm | 1600 | 1600 | 1840 | 1840 | 1840 | 1840 | 2280 | 2280 | |
| 重量Net Weight | kg | 1020 | 1130 | 1290 | 1970 | 2010 | 2800 | 3500 | 3600 |
| 出口管径 Outlet Pipe Diameter | inch | Rp2 | Rp2 | Rp2 | Rp2-1/2 | Rp2-1/2 | Rp2-1/2 | DN100 | DN100 |

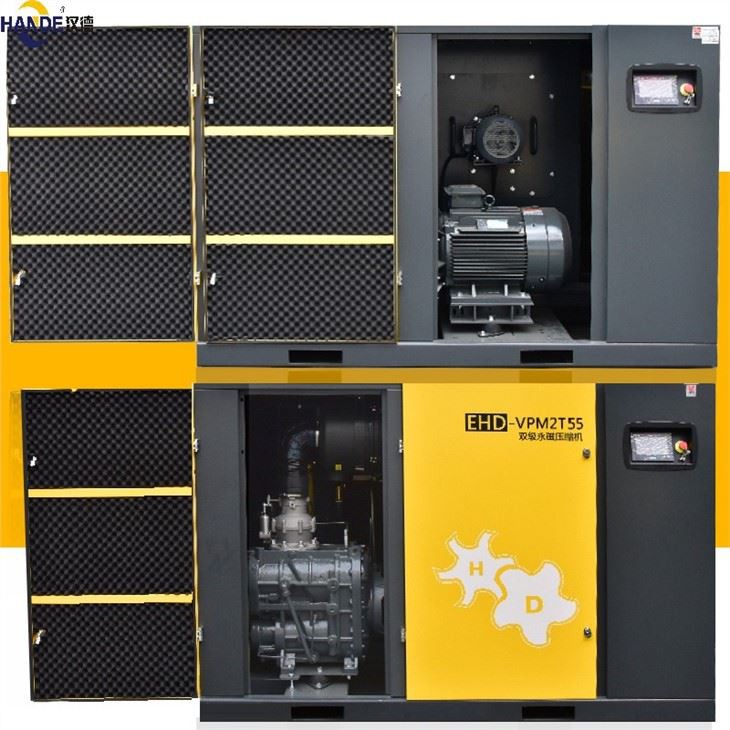

Product display：
Screw Air Compressor
Two Stage Screw Air Compressor
Centrifugal air compressor
Advantages：
Product Description
Compared with axial flow fans, air compressor centrifugal fans have the following advantages:
2.Maintenance is very convenient. Some models can be equipped with cleaning doors.
3.Ventilation effect is good, especially suitable for pipe ventilation or air supply, heat dissipation effect is more significant and no heat dissipation blind spot, centrifugal fan ventilation effect is 3--5 times higher than axial flow fan!
4.The impeller of the centrifugal fan is of reasonable design and is of backward tilt type. It has no friction during operation, very low noise and is not easy to get dust, which is very convenient for maintenance.
5.The surface is sprayed, strong oxidation resistance, not easy to be corroded, the case and impeller are made of high-quality steel, making the centrifugal fan very strong and durable.
HANDE new generation PM VFD series, using HANBELL AB grade host, centrifugal fan, high exhaust efficiency, good heat dissipation effect, low noise, more stable operation
2.High-efficiency motor
3.Centrifugal fan
4.Taper connection
5.High temperature resistant 180ºC, non degaussing
Use HANBELL dual stage compression host, no wear lines design, double head horizontal layout, low center of gravity, vibration small, since the nose with double drive permanent magnet frequency conversion motor, with embedded integrated shaft directly connected structure, no motor bearing, coupling, and gear box structure, to avoid the transmission loss, unique bearing storage tank technology, ensure start moment lubrication, the nose structure is compact, IP54 protection, appearance is novel and attractive
Company introduction：
Production Capability：
Corporate Qualifications：
Global exhibition & Training
FAQ:
FAQ
Q1: Are you factory or trade company?
A1: We are factory.
Q2: What the exactly address of your factory?
A2: Shimi Industrial Road, Xiuli Road, Yuanzhou Town, Boluo County, Huizhou City, Guangdong Province
Q3: Warranty terms of your air compressor machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the air compressor?
A4: We offer all kinds of products related to air compressor. (Air dryer, Air tank, etc)
Q5: How long will you take to arrange production?
A5: 380V 50HZ we can delivery the goods within 10 days. Other electricity or other color we will delivery within 22 days
Q6: Can you accept OEM orders?
A6: Yes,OEM orders are our mainly service.
