Technical Parameter Table of Dual Stage Compression PM VFD Screw Air Compressor：
| 机型Model 参数Parameters | HD-VPM2T22 | HD-VPM2T30 | HD-VPM2T37 | HD-VPM2T45 | HD-VPM2T55 | HD-VPM2T75 | HD-VPM2T90 | |
| 排气量/排气压力（m³/min/Mpa） F.A.D/Max Pressure | 4.1/0.8 | 6.4/0.8 | 7.1/0.8 | 9.7/0.8 | 12.5/0.8 | 16.3/0.8 | 19.8/0.8 | |
| 3.5/1.0 | 4.9/1.0 | 6.3/1.0 | 7.8/1.0 | 9.6/1.0 | 12.4/1.0 | 16.9/1.0 | ||
| 3.2/1.2 | 4.2/1.2 | 5.4/1.2 | 6.5/1.2 | 8.6/1.2 | 11/1.2 | 14.3/1.2 | ||
| 环境温度 Ambient Temperature | ℃ | —5～+45 | ||||||
| 冷却方式 Cooling Mode | 风冷/Air-cooling | |||||||
| 排气温度 Discharge Temperature | ℃ | ≤环境温度+15℃/Environment Temp+15℃ | ||||||
| 润滑油量 Lubricant Oil | 升/Liter | 13 | 24 | 75 | 90 | |||
| 噪音Noise | Db(A) | 68±2 | 74±2 | |||||
| 驱动方式 Drive Mode | 直联/Direct Drive | |||||||
| 电源Voltage | 380V/50Hz/3Ph | |||||||
| 功率Power | KW | 22 | 30 | 37 | 45 | 55 | 75 | 90 |
| 启动方式 Start Mode | 变频启动/Variable Frequency Start | |||||||
| 外型尺寸 Dimensions | 长Length mm | 1500 | 1660 | 1660 | 2180 | 2180 | 2180 | 2500 |
| 宽Width mm | 1030 | 1115 | 1115 | 1390 | 1390 | 1390 | 1630 | |
| 高Height mm | 1250 | 1400 | 1400 | 1660 | 1660 | 1660 | 1930 | |
| 重量 Net Weight | kg | 589.5 | 810 | 848 | 1800 | 1860 | 1960 | 2360 |
| 出口管径 Outlet Pipe Diameter | inch | Rp1 | Rp1,1/2 | Rp1,1/2 | Rp2 | Rp2 | Rp2 | Rp2,1/2 |
机型 Model 参数Parameters | HD-VPM2T110 | HD-VPM2T132 | HD-VPM2T160 | HD-VPM2T185 | HD-VPM2T200 | HD-VPM2T220 | HD-VPM2T250 | |
| 排气量/排气压力（m³/min/Mpa） F.A.D/Max Pressure | 23.5/0.8 | 28/0.8 | 34/0.8 | 38.4/0.8 | 43/0.8 | 47/0.8 | 52/0.8 | |
| 19.7/1.0 | 23.5/1.0 | 30/1.0 | 32.5/1.0 | 38.5/1.0 | 41/1.0 | 46/1.0 | ||
| 17.6/1.2 | 19.8/1.2 | 23.8/1.2 | 28.6/1.2 | 32.8/1.2 | 34.6/1.2 | 40.1/1.2 | ||
| 环境温度 Ambient Temperature | ℃ | —5～+45 | ||||||
| 冷却方式 Cooling Mode | 风冷/Air-cooling | |||||||
| 排气温度 Discharge Temperature | ℃ | ≤环境温度+15℃/Environment Temp+15℃ | ||||||
| 润滑油量 Lubricant Oil | 升/Liter | 90 | 128 | 138 | ||||
| 噪音Noise | Db(A) | 78±2 | 82±2 | 84±2 | ||||
| 驱动方式 Drive Mode | 直联/Direct Drive | |||||||
| 电源Voltage | 380V/50Hz/3Ph | |||||||
| 功率Power | KW | 110 | 132 | 160 | 185 | 200 | 220 | 250 |
| 启动方式 Start Mode | 变频启动/Variable Frequency Start | |||||||
| 外型尺寸 Dimensions | 长Length mm | 2500 | 2500 | 3630 | 3630 | 3630 | 3630 | 3630 |
| 宽Width mm | 1630 | 1630 | 2160 | 2160 | 2160 | 2160 | 2160 | |
| 高Height mm | 1930 | 1930 | 2310 | 2310 | 2310 | 2310 | 2310 | |
| 重量 Net Weight | kg | 2390 | 2445 | 3800 | 4100 | 4800 | 5100 | 5600 |
| 出口管径 Outlet Pipe Diameter | inch | Rp2,1/2 | Rp2,1/2 | DN100 | DN100 | DN100 | DN100 | DN100 |
Product display：
Air Compressors
Air Compressor
Air Compressor Parts
Advantages：
Air Compressors Air Compressor Parts Rotary centrifugal fan air compressor
High Efficiency Two stage Air Compressor for Industries low noise
High Efficiency, Energy-Saving, Convenient Maintenance

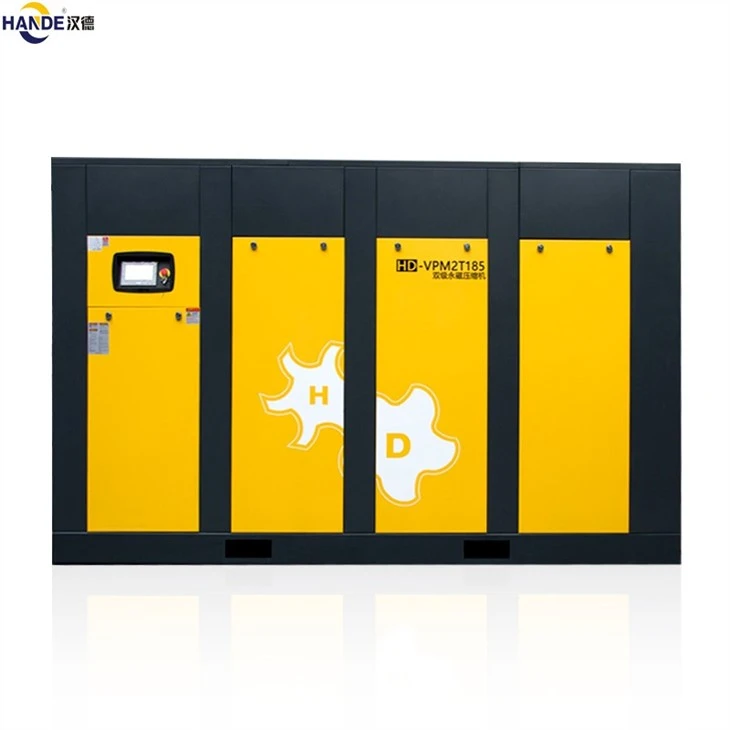

Dual stages 185KW Screw Air Compressor
The new energy-saving configuration saves electricity by 35% comparing with ordinary constant frequency machine
Handbell Air end works with inovance's converter and controller
*Dual-stage compression reduces the compression radio of each stage, reduces internal leakage,improves volumetric efficiency, reduces bearing load, and increase the life of rotos.
*Using dual-stage compression rather than single one, the increase of air output volume can be 15%, means 15% energy saving.
*The rotor adopts the newly designed rotor UV patented profile, has been through more than 20 processes of finishing, to ensure the accuracy, reliability and effectiveness of e rotor profile.
*The dual-stage compression is more efficient and energy saving, has been through saving energy as much as 35% comparing with ordinary constant frequency machine.
Company introduction：
Production Capability：
Corporate Qualifications：
Global exhibition & Training
FAQ:
FAQ
Q1: Are you factory or trade company?
A1: We are factory.
Q2: What the exactly address of your factory?
A2: Shimi Industrial Road, Xiuli Road, Yuanzhou Town, Boluo County, Huizhou City, Guangdong Province
Q3: Warranty terms of your air compressor machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the air compressor?
A4: We offer all kinds of products related to air compressor. (Air dryer, Air tank, etc)
Q5: How long will you take to arrange production?
A5: 380V 50HZ we can delivery the goods within 10 days. Other electricity or other color we will delivery within 22 days
Q6: Can you accept OEM orders?
A6: Yes,OEM orders are our mainly service.
