| Model | HD-VPM2T220 | ||
| Working pressure: | 8bar | 10bar | 12bar |
| Air Delivery (m³/min) | 47 | 41 | 34.6 |
| Motor power | 220KW/300HP | ||
| Power voltage: | 380V/50hz/3phase (different voltage is available) | ||
| Compressor type: | Dual Stage Compression PM VFD Screw Air Compressor | ||
| Cooling Mode | Air cooling | ||
| Starting mode | Variable Frequency Start | ||
| Ambient temperature | -5℃ ~ +45℃ | ||
| Discharge temperature | ≤ Ambient temperature+15℃ | ||
| Dimension (mm) | 3630*2160*2310 |

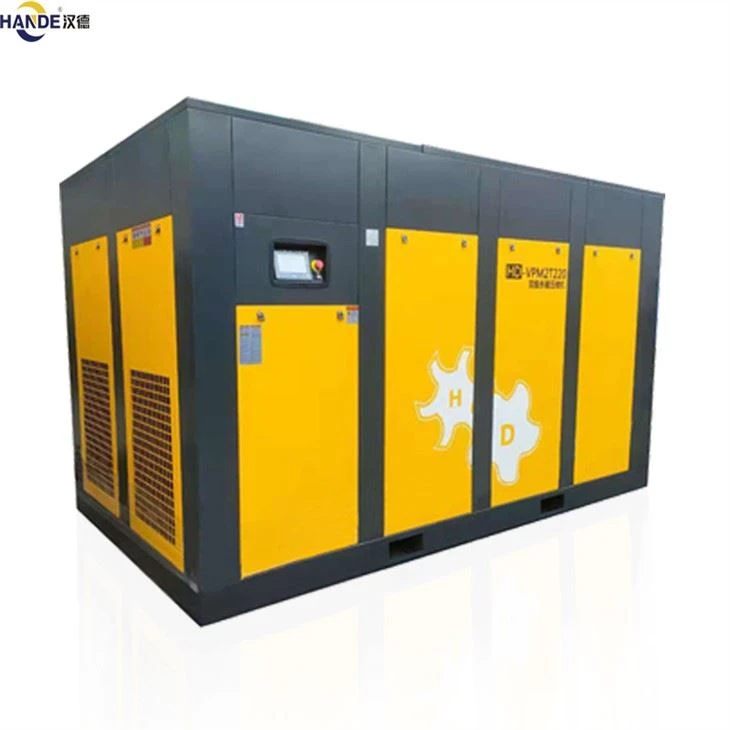

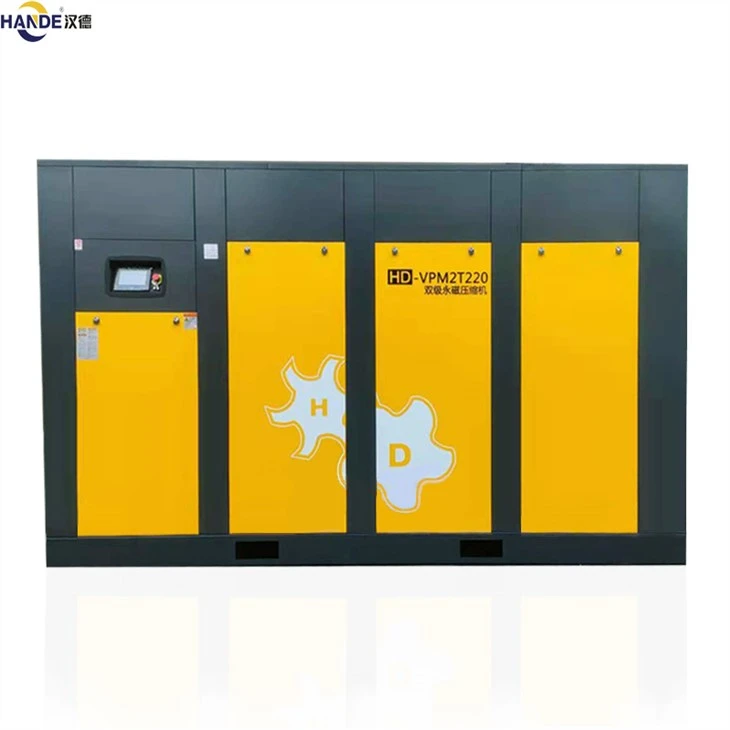

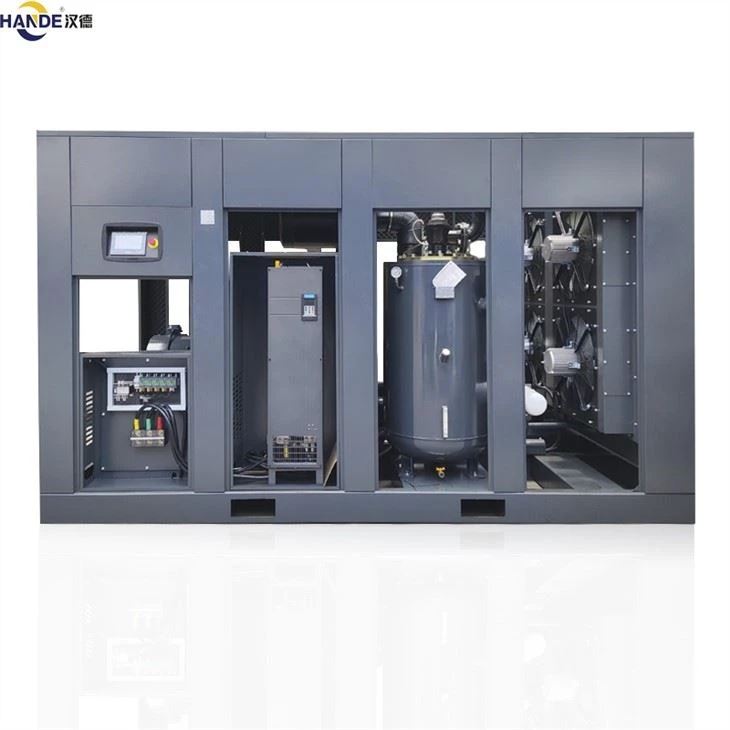

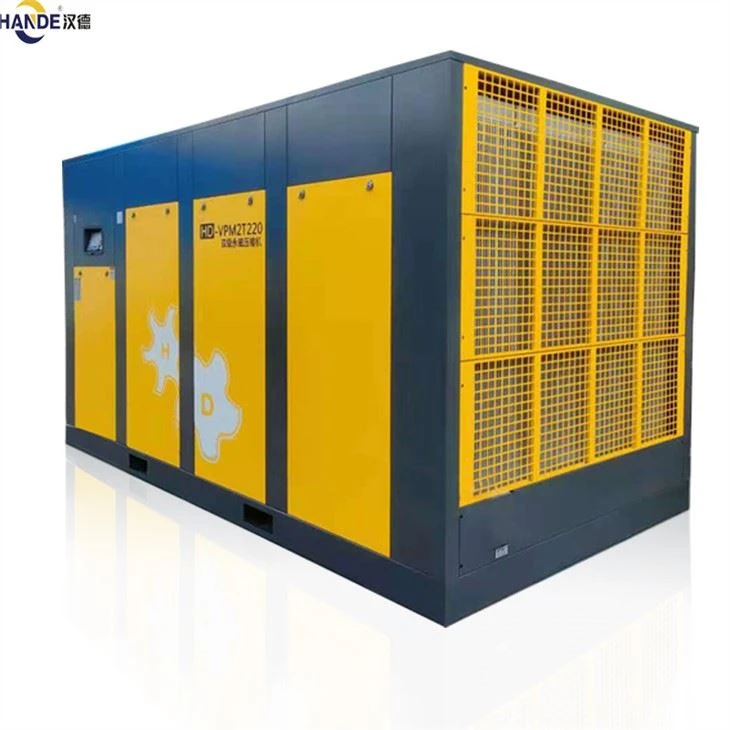

HD-VPM2T220 Air Compressor （Dual stage）
| Product display： |
| Product advantage: |
Rotary Double Stage Screw Air Compressor compression air-end
The Double Stage compression adopts an intermediate cooling method to make the gas before the second compression close to the gas that has just entered the air compressor.
We all know that the higher the temperature of gas compression requires more energy than the general temperature gas compression at room temperature consumes more energy.
Therefore, the additional cooler in the intermediate process of the Double Stage Screw Air Compressor can save part of the energy consumption.
