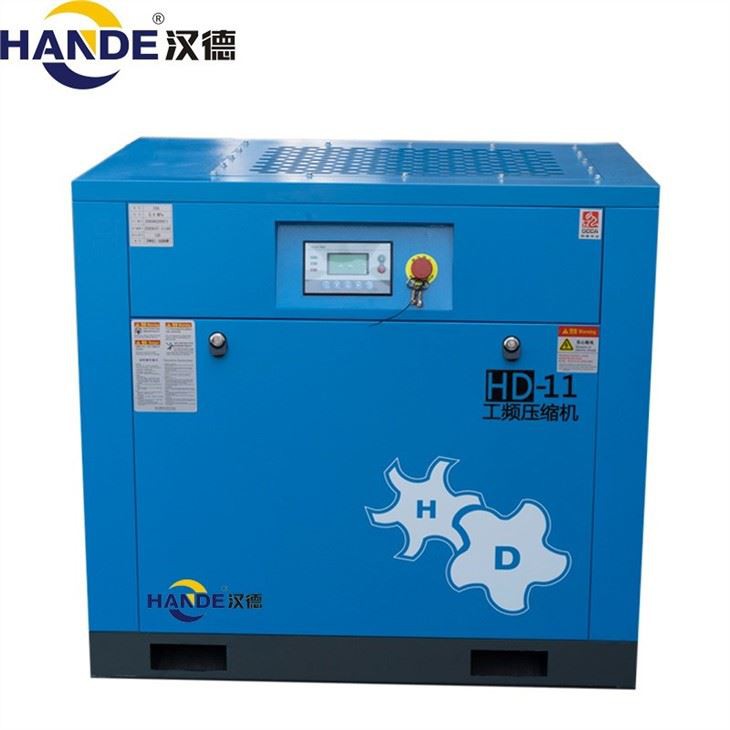

20HP 15KW Rotary Screw Air Compressor

20HP 15KW Rotary Screw Air Compressor

【Simple Installation】HANDE compressors are equipped with easy-to-use, robust and intelligent microprocessor controllers, long-lasting and efficient transfer system,is the leading rotary screw compressor for industrial applications.
20 hp rotary screw air compressor oil Separator is an integrated separator with element and its own housing. It offers an easy and quick replacing solution for maintenance of air compressors. It significantly reduces oil content of compressed air and returned the filtered oil to compressor air end.

Product Introduction

序号/Sr.No.

项目/Item Name

单位/Unit

参数/Datas

备注/Remarks

1

公称容积流量/额定排气压力/F.A.D/Pressure

m3/min)/ MPa

2.0/0.8


2

环境温度/Ambient Temperature

-5~+45


3

冷却方式/Cooling Mode


风冷/Air Cooling


4

排气温度/Discharge Temperature



≤环境温度+15

/≤Ambient Temperatur+15


5

润滑油量/Oil Volume

L/kg

10L


6

传动方式/Driven Mode


直联/Direct


7

气量调节方式/Adjusting way of air capacity


ON/OFF


8

气体含油量/Oil Content in Discharge Air

ppm

≤3


9

噪声/Noise

dB(A)

68±2


10

润滑油牌号/Oil Brand


Shell,S46


11

安全阀设定压力/Safety valve setting pressure

MPa

额定工作压力x1.2

/Nominal Working Pressure x1.2


12

电动机/Motor







功率/Motor Power

kW

15


转速/Main Motor Nominal Rpm

rpm

2980


起动方式/Starting Mode


Y-△启动/Star-delta Start


电压/频率Voltage/Frequency

V/Hz

380/50


防护等级/绝缘等级Protection Class/Insulation Class


IP23/F


13

风机/Fan







功率/Fan Power

kW

0.36


电压/频率Voltage/Frequency

V/Hz

380/50


转速/

Main Fan Nominal Rpm

rpm

1440


风量/Air Volume

m3/h

3800


14

外形尺寸/Dimentions

mm

1080x750x1000


15

重量/N.W

kg

306


16

出口管径/Outlet Connection

in

Rp3/4



【Simple Installation】HANDE compressors are equipped with easy-to-use, robust and intelligent microprocessor controllers, long-lasting and efficient transfer system,is the leading rotary screw compressor for industrial applications.


20 hp rotary screw air compressor


Oil Separator is an integrated separator with element and its own housing. It offers an easy and quick replacing solution for maintenance of air compressors. It significantly reduces oil content of compressed air and returned the filtered oil to compressor air end.


image001image003


image005image007
