Product Introduction
10 Hp Rotary Screw Air Compressor is oil-injected single-stage twin-screw compressors. They are divided into single-screw air compressors and twin-screw air compressors. It uses high-efficiency pulleys to drive the main engine to rotate for air compression. The compressed air is cooled, and the air and oil mixed gas discharged from the main engine are separated through two stages of coarse and fine separation, and the oil in the compressed air is separated, and finally clean compressed air is obtained. 10 Hp Rotary Screw Air Compressor has a more friendly human-machine interface and easier intelligent operation.
| Model | HD-7D5 | ||
| Working pressure: | 8bar | 10bar | 12bar |
| Air Delivery (m³/min) | 1.1 | 0.9 | 0.8 |
| Air Delivery (CFM) | 39 | 32 | 28 |
| Motor power | 7.5KW/10HP | ||
| Power voltage: | 380V/50hz/3phase (different voltage is available) | ||
| Compressor type: | Fixed Speed Rotary Screw Air Compressor | ||
| Cooling Mode | Air cooling | ||
| Starting mode | Star-delta Start | ||
| Ambient temperature | -5℃ ~ +45℃ | ||
| Discharge temperature | ≤ Ambient temperature+15℃ | ||
| Dimension (mm) | 900*670*880 | ||

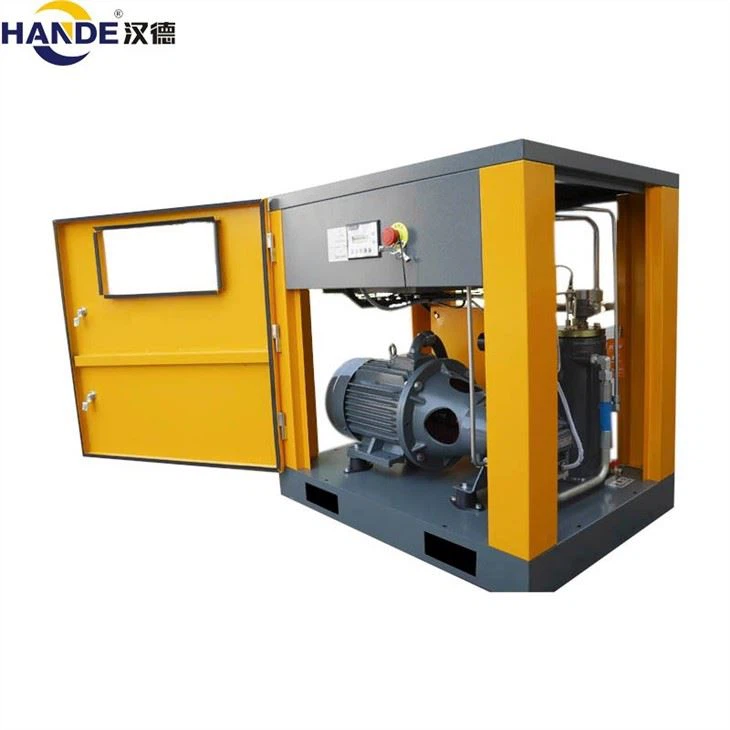

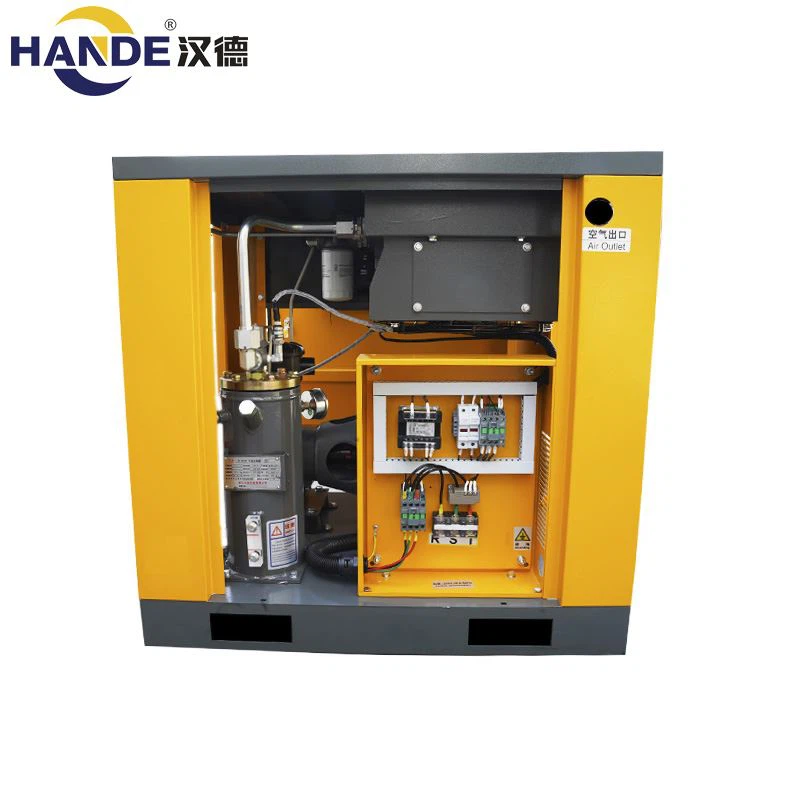

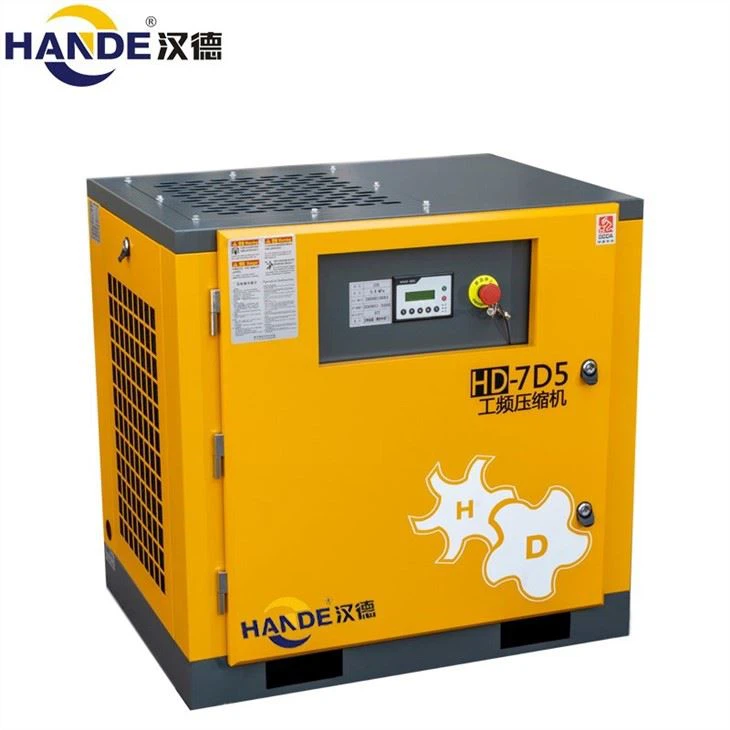

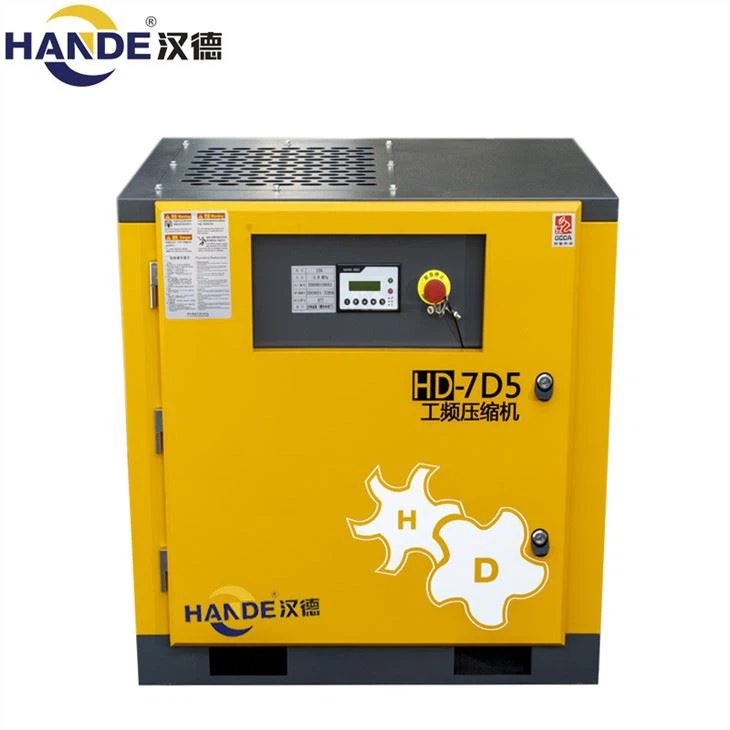

| Product display： |
| Product advantage: |
1.10 Hp Rotary Screw Air Compressor adopts dual variable frequency inverter.
2.Dual variable frequency system: permanent magnet motor variable frequency + cooling fan motor variable frequency , one-piece integrated structure, extreme energy saving.
3.Constant pressure air supply: the supply pressure is precisely controlled under 0.01 MPa.
| Company introduction |
| Production Capability |
| Corporate Qualifications |
| Global exhibition & Training |
| Packing and delivery |
