25HP Best Air Compressor

25HP Best Air Compressor

18.5KW 25HP fixed speed rotary screw compressor Specification
Model: HD-18D5
Power: 25HP/18.5kw
Working pressure: 8bar - 12bar
Air delivery: 3m³/min (106cfm)
Power voltage: 380V/50hz/3phase (different voltage is available)
OEM & ODM service support.

Product Introduction
ModelHD-18D5
Working pressure:8bar10bar12bar
Air Delivery (m³/min)32.22
Air Delivery (CFM)1067871
Motor power18.5KW/25HP
Power voltage:380V/50hz/3phase (different voltage is available)
Compressor type:Fixed Speed Rotary Screw Air Compressor
Cooling ModeAir cooling
Starting modeStar-delta Start
Ambient temperature-5℃ ~ +45℃
Discharge temperature≤ Ambient temperature+15℃
Dimension (mm)1380*850*1160

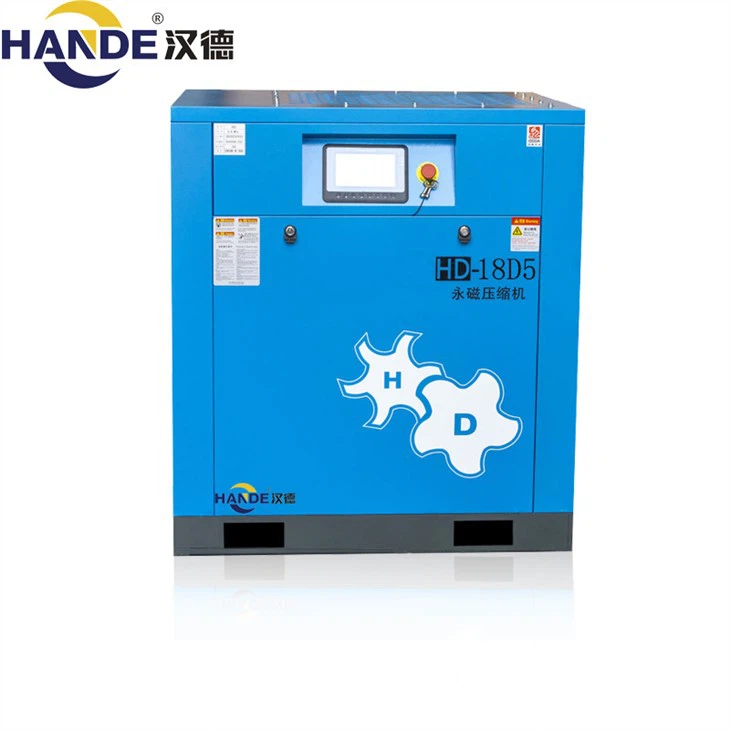

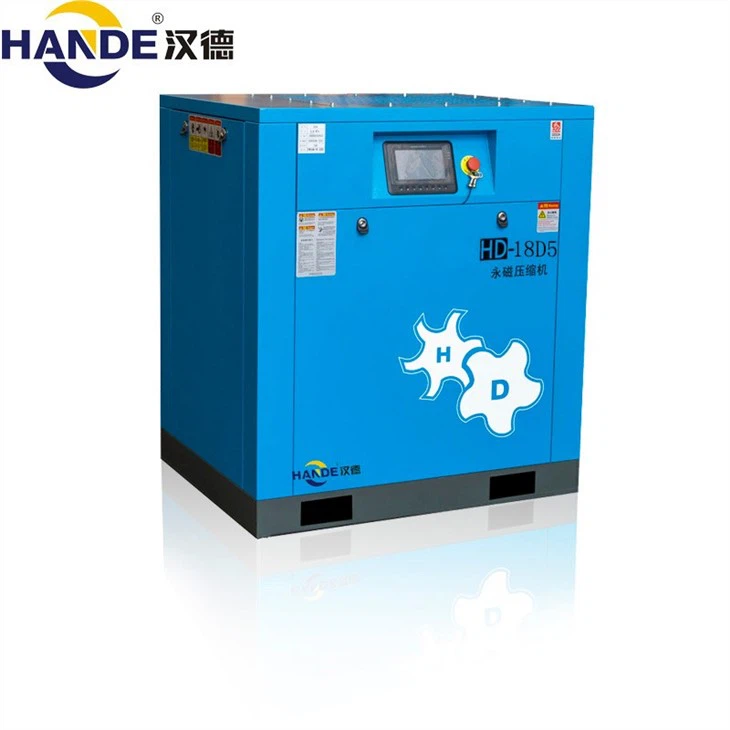

Product display:


Product advantage:

1.Adopt enhanced energy saving screw air compressor.

2.Design with several types of technology patent, real bigger air flow.

3.Equipped with intelligent controller.

Eight precautions during the operation of screw air compressors

As a kind of power energy, screw air compressor plays an important role for enterprises. However, equipment failures caused by various factors during the operation of air compressors often cause immeasurable losses to the enterprise. Therefore, it is more important to be familiar with equipment knowledge and standardize operations. 25HP Best Air Compressor

1. Do not store flammable and explosive materials around the equipment. At the same time, it should be noted that it is not allowed to block the suction port during operation.

2. There is pressure in the operating pipeline. Do not loosen the bolts and valves of the pipeline, such as traps and sewage.

3. Always check the lubricating oil usage. If you find that the amount of oil is insufficient and the oil temperature gradually rises, stop the machine. Replenishing lubricating oil should be carried out under the condition of no pressure on the machine. 25HP Best Air Compressor

4. Always check whether the automatic steam trap of the screw air compressor works normally, otherwise the water will be brought into the system.

5. The oil and gas barrels should discharge sewage and water times every week. The unit must be kept on for at least 2 hours a week.

6. In the daily operation check, pay attention to whether the pressure switch and the joint control program are working normally. Abnormal operation of the machine will increase energy consumption, and in severe cases, the motor will burn out. 25HP Best Air Compressor

7. When abnormal noise or abnormal vibration occurs during the operation of the machine, it should be shut down immediately for inspection.

8. The operating pressure of the air compressor should be consistent with that marked on the nameplate so as to ensure operating efficiency and reduce energy consumption.
