| 序号 | 项目 project | 单位 | 参数 | |
| 1 | 公称容积流量/额定排气压 Nominal volume flow/rated discharge pressure | （m3/min)/ MPa | 0.84/0.8 | |
| 2 | 环境温度 ambient temperature | ℃ | -5～+45 | |
| 3 | 冷却方式 cooling method | 风冷 air cooling | ||
| 4 | 排气温度 Exhaust gas temperature | ℃ | ≤环境温度+15 ≤ambient temperature+15 | |
| 5 | 传动方式 transfer method | 皮带传动 belt drive | ||
| 6 | 气量调节方式 Air volume adjustment method | ON/OFF | ||
| 7 | 气体含油量 gas oil content | ppm | 无油 oil free | |
| 8 | 噪声 noise | dB(A) | 68±2 | |
| 9 | 安全阀设定压力 Safety valve set pressure | MPa | 额定工作压力x1.2 Rated working pressure x1.2 | |
| 10 | 电动机 Motor | 功率 power | kW | 3.7X2 |
| 转速 Rotating speed | rpm | 2900 | ||
| 起动方式 Starting method | 直启 direct start | |||
| 电压/频率 Voltage/frequency | V/Hz | 380/50 | ||
| 防护等级/绝缘等级 Protection class/insulation class | IP55/F | |||
| 11 | 风机fan | 转速 Rotating speed | rpm | 1440 |
| 功率 power | w | 65 | ||
| 电压/频率 Voltage/frequency | V/Hz | 380/50 | ||
| 风量Air volume | m3 /h | 1200 | ||
| 12 | 外形尺寸 Dimensions | mm | 1000x680x1280 | |
| 13 | 重量 weight | kg | 220 | |
| 14 | 出口管径 Outlet diameter | in | Rp1/2 | |

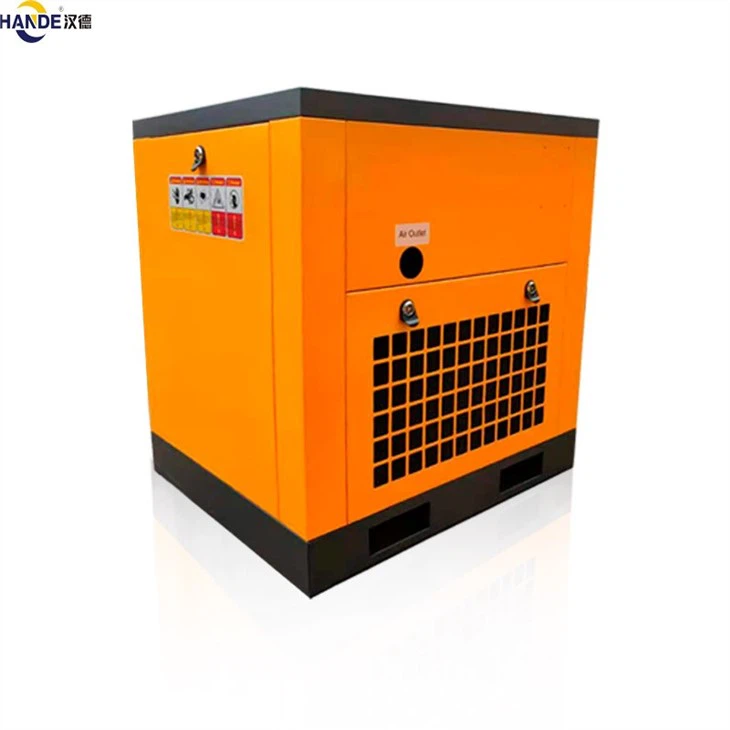

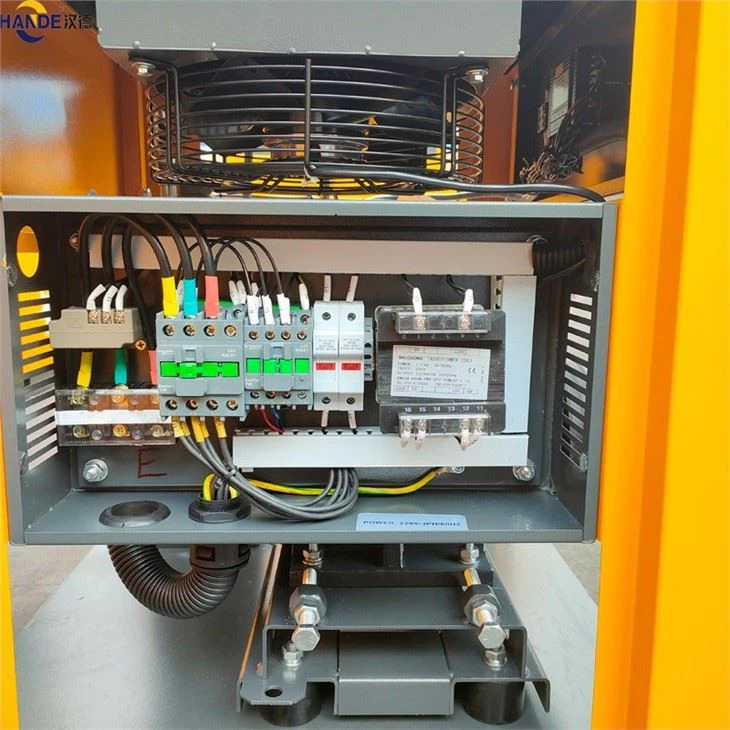

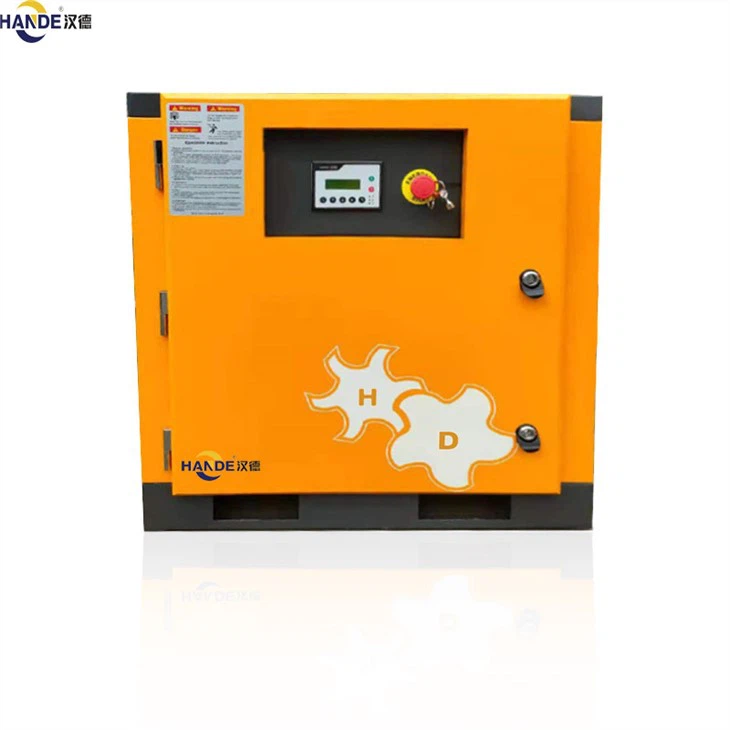

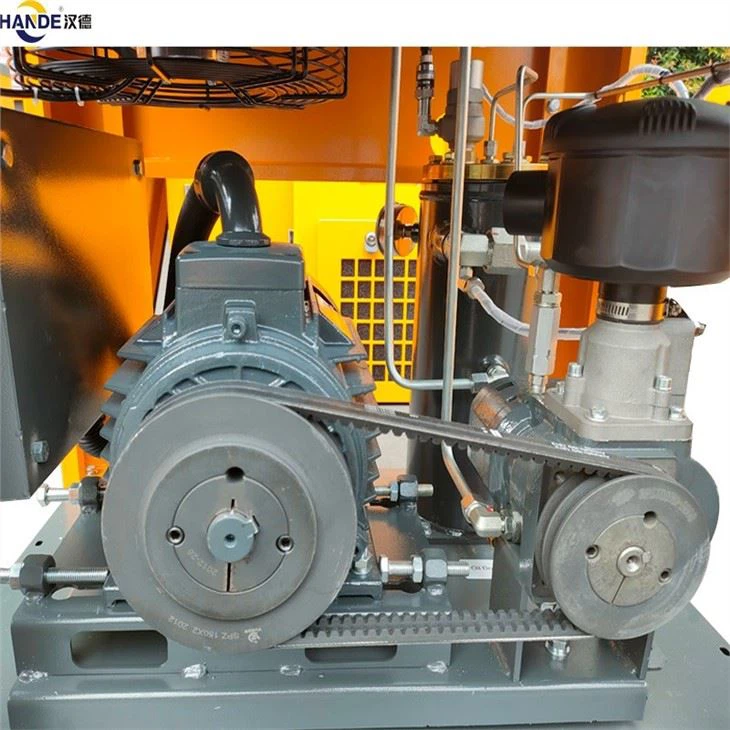

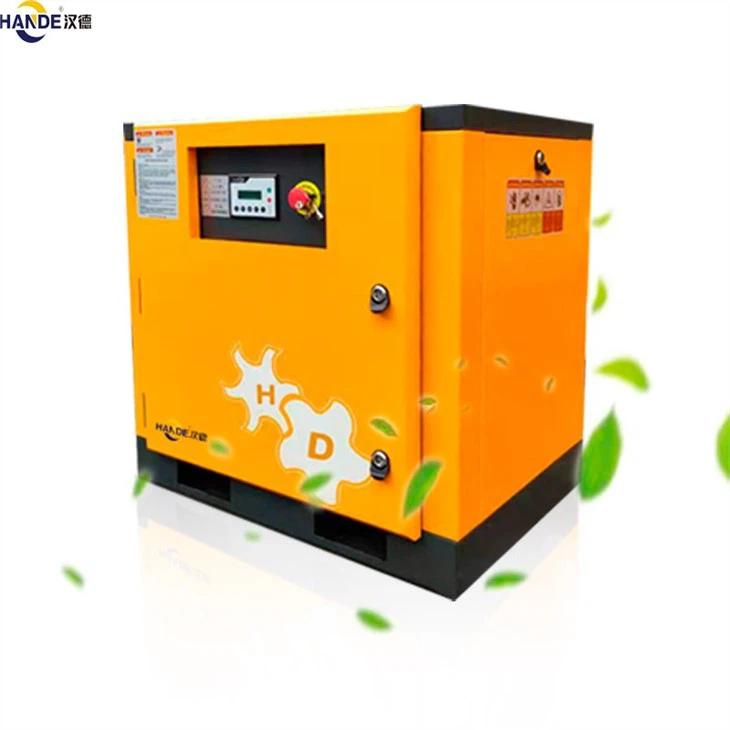

| Product display： |
