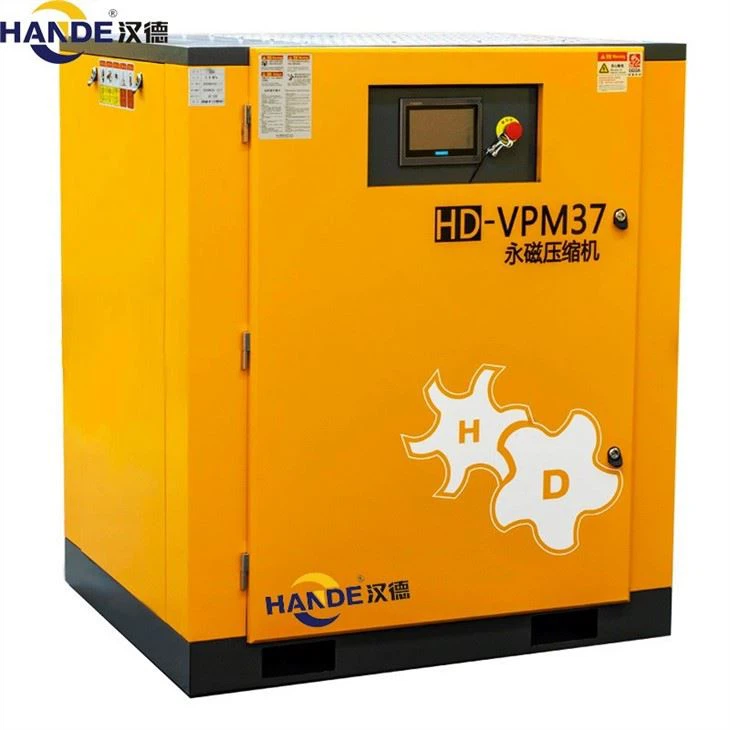

37kw 50HP Inverter Screw Air Compressor

37kw 50HP Inverter Screw Air Compressor

Single Stage 37kw 7-12bar Frequency Converter Rotary Screw Air Compressors for General Construction
Working pressure: 7-12.5Bar
Air delivery: 6.2m³/min (219cfm)
Wholesale, OEM and ODM service support

Product Introduction
ModelHD-VPM37
Working pressure:8bar10bar12bar
Air Delivery (m³/min)6.35.64.5
Air Delivery (CFM)222197159
Motor power37KW/50HP
Power voltage:380V/50hz/3phase (different voltage is available)
Compressor type:Two stage Permanent magnet VSD screw air compressor
Cooling ModeAir cooling
Starting modeVariable Frequency start
Ambient temperature-5℃ ~ +45℃
Discharge temperature≤Ambient temperature+15℃
Dimension (mm)1200*1000*1400
Product display:


Product advantage:

Product features of low pressure screw air compressor:

1. Adopt large rotor and low speed to ensure the high performance of the Screw Air Compressor;

2. Increase oil and gas separation equipment to ensure that the export oil content is ≤3ppm;

3. The air source of the low-pressure screw air compressor is clean, which reduces the number of cleaning nozzles of texturing machines and other equipment, and improves the quality of the finished product;

4. The air compressor heat dissipation area of the oil cooler is increased by more than 30% to ensure normal operation in summer without over-temperature;

5. Independently design the internal pressure ratio of the host to ensure a better specific power;

6. Intelligent control system, automatically adjust the exhaust volume according to the customer's usage (frequency conversion model).

7. For the texturing industry, ensure long-term continuous operation, set fault warnings, and do not stop immediately, so that customers are fully prepared for shutdown;

8. Adopting dual air outlet design for 37kw 50HP Inverter Screw Air Compressor, the air outlet temperature can be adjusted according to climate changes, meeting customer needs to a greater extent, and achieving high efficiency and energy saving at the same time.
