20 Hp Air Compressor With Dryer And Tank

Each and every one of our rotary screw air compressors is built to exacting standards, to provide years of reliable service, under demanding conditions. And because we use only high-quality brand-name components, we offer a full ten year warranty, on all of our rotary screw air compressors.

This 20 HP Air Compressor with Dryer Package offers many features, including a PLC that will allow for easy and intuitive scheduling and operation. Paired with Eaton Compressor’s world-class customer service, after the sale, we’re confident this air compressor will meet your compressed air needs for years to come.

20 hp air compressor with dryer is also be named regular rotary screw air compressor, the type of compressor is power frequency air compressor.

The air compressor can operate at a 100% duty cycle and are ideal for continuous-use applications where reliable, dry, clean air is required. Innovative component integration results in a compact, quiet air system engineered for efficiency & performance, providing high-capacity air delivery and stable system pressure with minimal installation space.

Specifications:

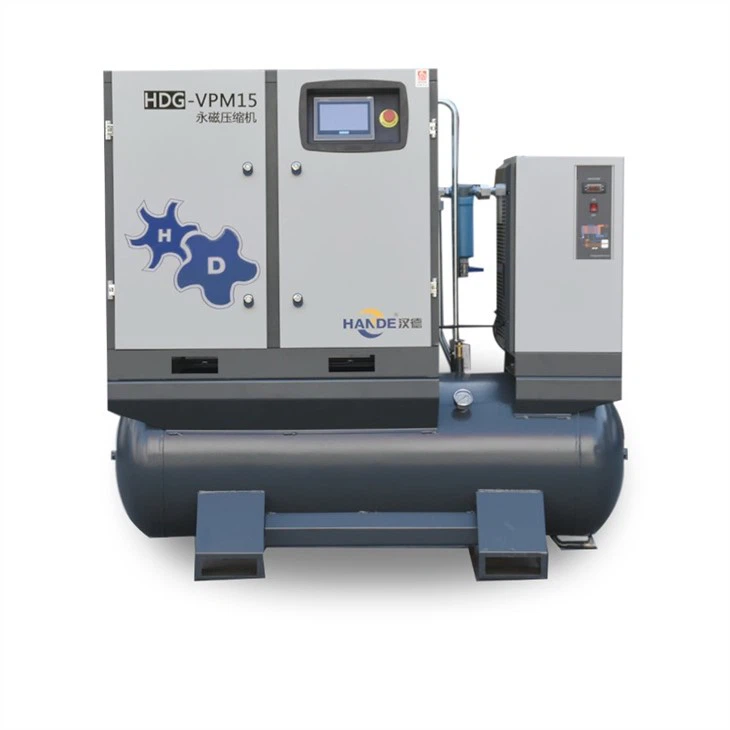

4 in 1 Permanent Magnet Rotary Screw Type Air Compressor

Model : HDC-VPM15

Max.F.A.D : 2.2m³/min(8Bar);2.0m³/min(10Bar);1.7m³/min(12Bar);

Motor : 15KW/20HP,IP54

Supply Voltage : 380V/3Ph/50Hz

Cooling & Drive Mode : Air Cooled & Direct drive

Starting Mode: Variable Frequency start

Air end (Screw) : HANBELL AC

Allowed Ambient Temperature: -5~+45°C (max.)

Noise Level: 66±2 dBA

Compressor Oil Fill Amount: 10 Liter (Filled) is avaiable

Air Outlet Connection: RP3/4

Air tank: 400L

Air dryer: TR02-HD
                Power:0.52KW
                Rated air capacity:2.4m³/min
                Voltage/Frequency: 220v/50HZ
                Inlet gas temp.:≤65℃

Air line filter: 4 units

Dimension: 1730*780*1640mm (W x D x H)

Weight: 480 Kg

Packing :Plywood case

Advantages

Our rotary screw air compressors offer 100% duty cycle which means that you can operate your compressor 24×7 without the need to shut it down to avoid overheating.

These high-efficiency pumps are more expensive to utilize in our manufacturing process but the years of dependable service they provide is worth the additional investment. We have thousands of satisfied customers across the country who agree.

Long HOUR BEARING PERFORMANCE

Most rotary screw air compressors, on the market, are only good for 20,000 to 40,000-hour pump bearing life spans.

PREMIUM INDUSTRIAL MOTORS

We use premium Motors brand electric motors that meet or exceed general industrial Manufacturers Standards. This helps save money, due to increased energy efficiency over other air compressors on the market.

Motor is not only built with a larger conduit box for easier connection, it has superior sealing for better environmental protection.

Full cast iron construction is more robust than the standard rolled steel, ensuring reliability in extreme duty applications.

With longer fins for better cooling, the motor runs at a lower temperature, increasing the life of the winding insulation. A cooler running motor delivers higher efficiency.
