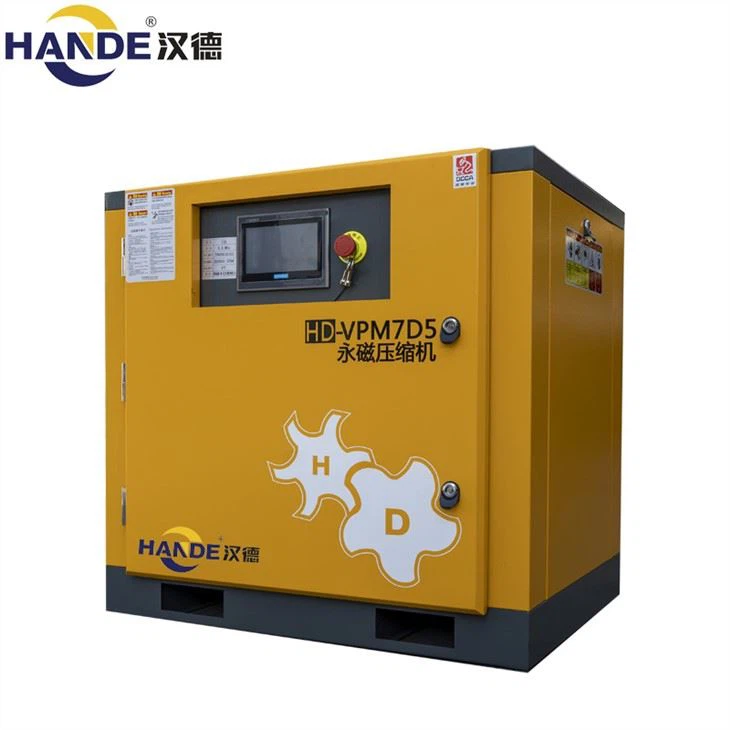

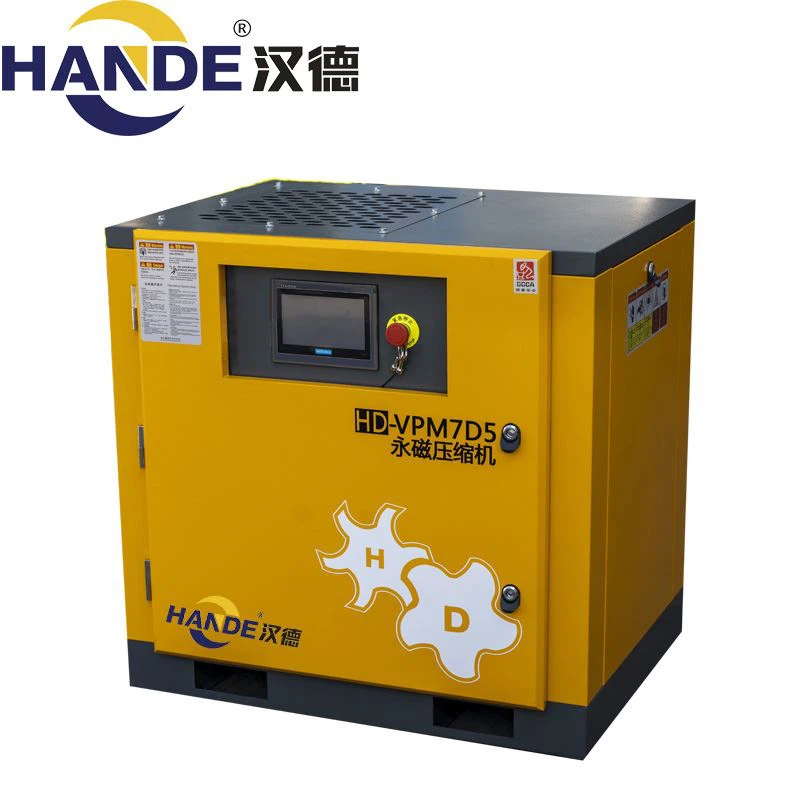

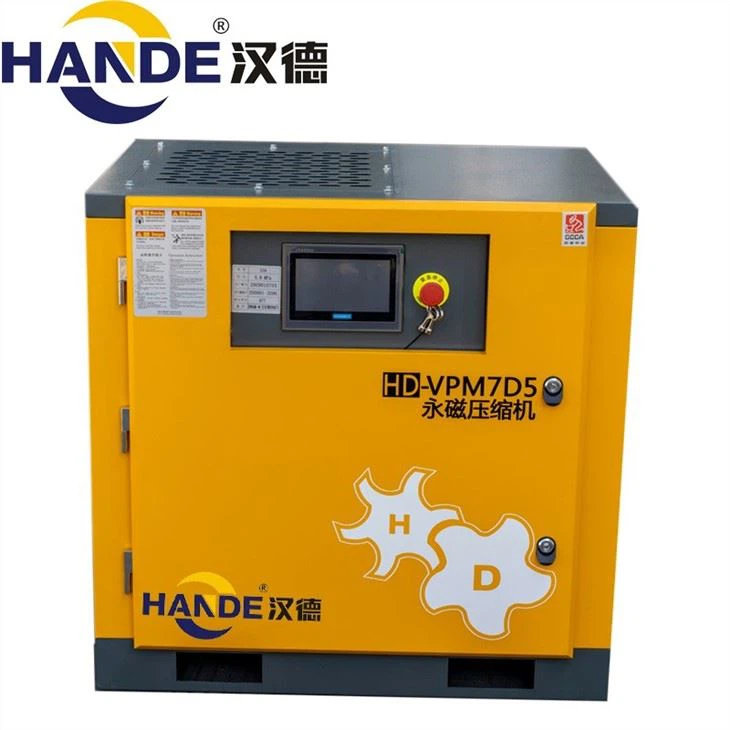

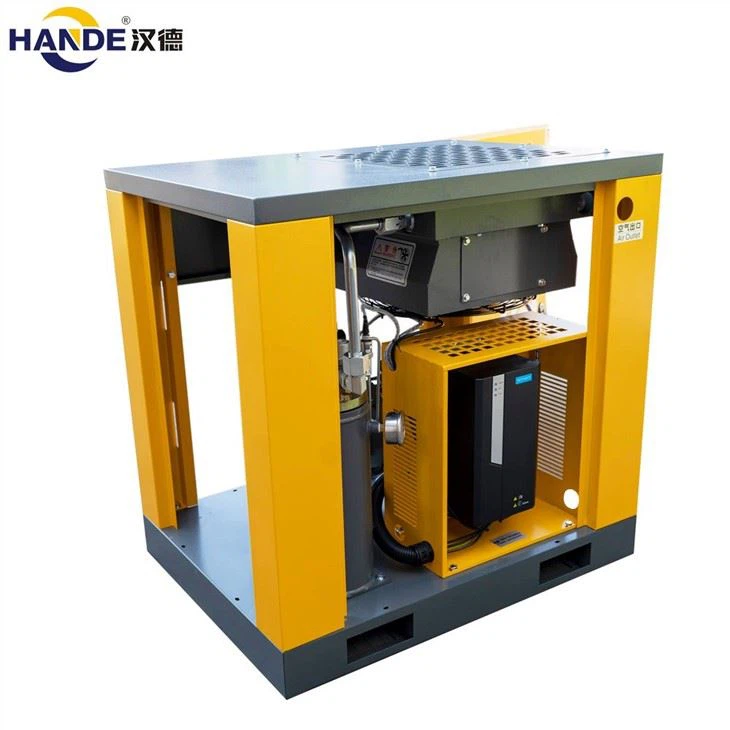

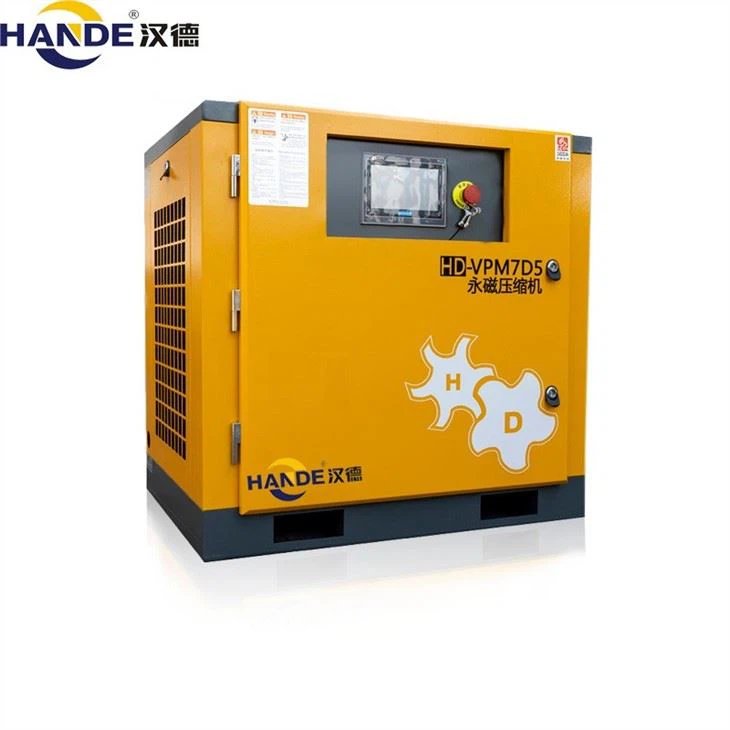

Small Portable Compressor

1. Adopt latest technology cooperation, high reliability.

2. Oil Cooling Permanent Magnetic Motor.

3. IP54 protection grade & heavy duty air filter, suitable for high dusty environment.

4. IE4 Efficiency motor efficiency.

5. Most energy saving mode, Only work at loading.

6. Wide frequency range 25%-100%.

7. Premium Magnetic material resist more than 180℃ temp.

What matters should be paid attention to in the installation and disassembly of the screw air compressor?

In the process of installation and disassembly of the screw air compressor, if you do not pay attention to the details, the parts of the equipment may be damaged. So what should be paid attention to in the installation and disassembly of the small portable compressor?

1. Matters needing attention in installation:

1. It must be placed on the floor or floor that is sufficient to bear the weight of the body;

2. Pay attention to the levelness of the machine base;

3. Try to stay away from places with high humidity, such as not getting too close to the cooling water tower or steam outlet;

4. Sufficient space for maintenance and heat dissipation must be kept;

5. Advocate that the surrounding space of the equipment is not less than 90 cm. If the small portable compressor must be installed against the wall or corner due to site restrictions, please consult the equipment supplier.

2. Matters needing attention when disassembling:

1. When disassembling the bearing, each sealed machine and hanging the rotor, you must be careful, and it is strictly prohibited to knock and collide to avoid damage to the machine;

2. The whole machine with the same appearance should be numbered and grouped, and the matching parts should be marked and stored correspondingly to prevent incorrect installation;

3. Complete sets of machines, such as coupling bolts, floating ring seal components, radial bearings, thrust bearings, etc., should be stored as a complete set;

4. It is strictly forbidden to hammer or pry with an iron bar on the mating stop surface and sealing surface (if hitting or prying is required, a soft metal pad must be used) to avoid damage to the mating processing surface;

5. After the radial bearing is removed, it is strictly forbidden to turn or move the rotor to prevent damage to the seal;

6. When disassembling radial bearings, mechanical seals or floating ring seals, the rotor should be slightly lifted to avoid strain and match the whole machine;

7. After dismantling the radial bearing, floating ring seal, and coupling hub, the shaft neck portion of the bearing and floating ring seal and the shaft cone section of the coupling hub should be wrapped and maintained;

8. When disassembling parts and lifting parts, the parts to be lifted should be lifted off with a top wire, opened with a crowbar or knocked to loosen them. It is strictly forbidden to pull it hard. Lifting should be stable, pay attention to whether there are any obstructions in various directions such as inside and outside, height, left and right, front and rear;

9. Before lifting the cylinder head, the thrust bearing should be removed, and the rotor should be placed next to the axial displacement;

10. The suspension and placement positions must be fair, the binding must be protected, and the placement must be safe and stable. It is not allowed to use the impeller to support the rotor at any time;

11. When lifting the cylinder head, the split surface should be horizontal, or the four corners and the split surface of the cylinder should be equally spaced, and it should not be jammed with the guide rod. During the lifting process, carefully observe the relevant parts, the lower partition and the rotor. Don’t wait for it to come up;

12. When lifting components such as cylinders, partitions, rotors, etc., you must understand the weight of the equipment and the lifting position. The choice of rigging diameter should be no less than 10 times the insurance factor. The rigging and equipment edges and corners, and the processing surface contact using skid wood or soft materials Pad well.

When installing and disassembling the small portable compressor, try to do the above small details as much as possible, so as to avoid the damage of the screw air compressor during the installation and disassembly process, so as to maintain the company's assets and avoid unnecessary expenses.
