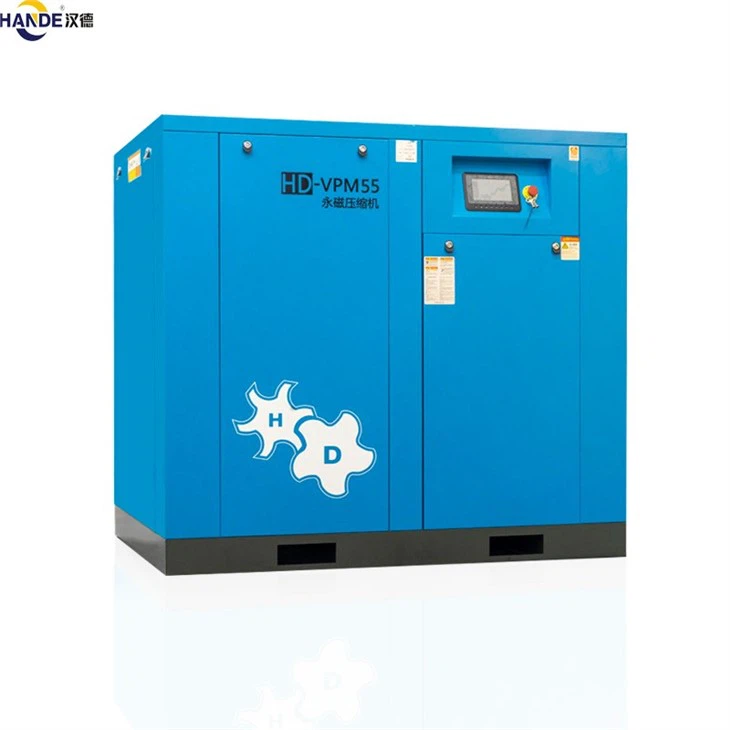

Name: Scr Air Compressor PM VSD Energy Saving Screw Air Compressor
Brand: Hande
SKU: 171355742

Scr Air Compressor PM VSD Energy Saving Screw Air Compressor

We selected high-quality parts suppliers and use imported SKF technology screw airend original imported airend.
We introduced in advanced quality management system.
Each compressor undergoes a 4-hour performance test before delivery.
Currently, the company has introduced in Industry 4.0 system for remote monitoring of products which can achieve consistency and stability of product operation.

Excellent Quality and Stable Performance

序号/Sr.No.	项目/Item Name		单位/Unit	参数/Datas	备注/Remarks
1	公称容积流量/额定排气压力/F.A.D/Pressure		（m³/min）/ MPa	3.2/1.0
2	环境温度/Ambient Temperature		℃	-5～+45
3	冷却方式/Cooling Mode			Air Cooling
4	排气温度/Discharge Temperature		℃	≤Ambient Temperatur+15
5	润滑油量/Oil Volume		L/kg	13L
6	传动方式/Driven Mode			Direct
7	气量调节方式/Adjusting way of air capacity			PM VFD
8	气体含油量/Oil Content in Discharge Air		ppm	≤3
9	噪声/Noise		dB(A)	70±2
10	润滑油牌号/Oil Brand			Shell,S46
11	安全阀设定压力/Safety valve setting pressure		MPa	Nominal Working Pressure x1.2
12	电动机/Motor	功率/Motor Power	kW	22
		转速/Main Motor Nominal Rpm	rpm	3000
		起动方式/Starting Mode		PM VFD
		电压/频率Voltage/Frequency	V/Hz	380/50
		防护等级/绝缘等级Protection Class/Insulation Class		IP23/F
13	风机/Fan	功率/Fan Power	kW	0.45
		电压/频率Voltage/Frequency	V/Hz	380/50
		转速/Main Fan Nominal Rpm	rpm	1440
		风量/Air Volume	m³/h	5600
14	外形尺寸/Dimentions		mm	1080x850x1200
15	重量/N.W		kg	344
16	出口管径/Outlet Connection		in	Rp1

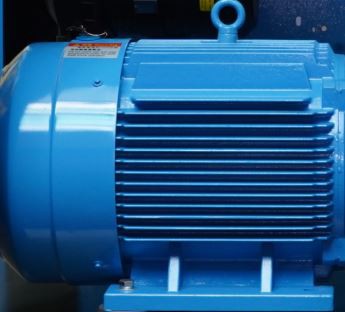

		Copper motor 1) High efficiency IE3+ motor 2) Low noise 3) All copper coil 4) Stable operation

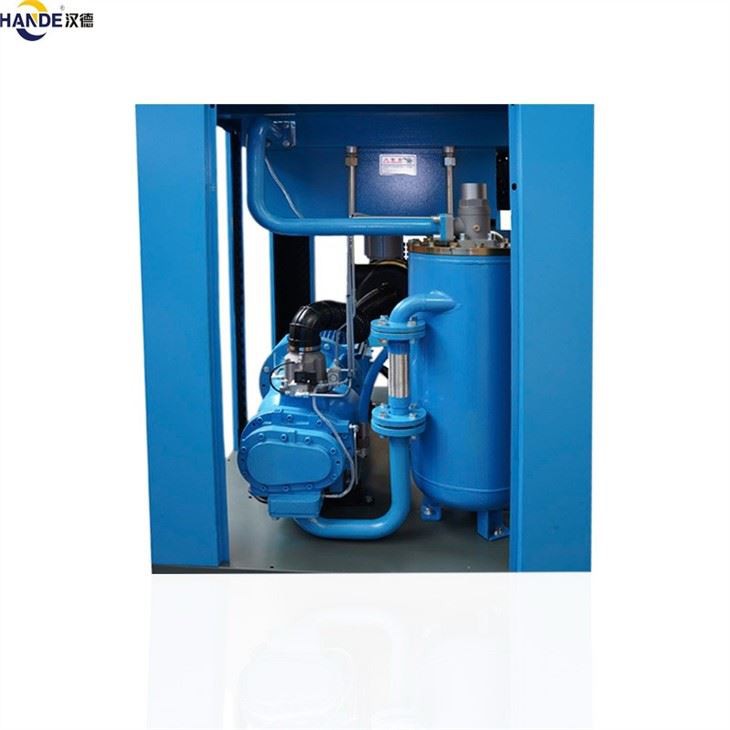

Screw air end 1) High efficiency and energy saving 2) SKF bearing 3) Big rotor at lower speed 4) Longer service life 5) Direct coupling 100% energy transmit
