| Model | HD-VPM7D5 | ||
| Working pressure: | 8bar | 10bar | 12bar |
| Air Delivery (m³/min) | 1.1 | 0.9 | 0.72 |
| Air Delivery (CFM) | 39 | 32 | 25 |
| Motor power | 7.5KW/10HP | ||
| Power voltage: | 380V/50hz/3phase (different voltage is available) | ||
| Compressor type: | Permanent Magnet Variable Frequency Screw Air Compressor | ||
| Cooling Mode | Air cooling | ||
| Starting mode | Variable Frequency Start | ||
| Ambient temperature | -5℃ ~ +45℃ | ||
| Discharge temperature | ≤ Ambient temperature+15℃ | ||
| Dimension (mm) | 900*670*880 | ||

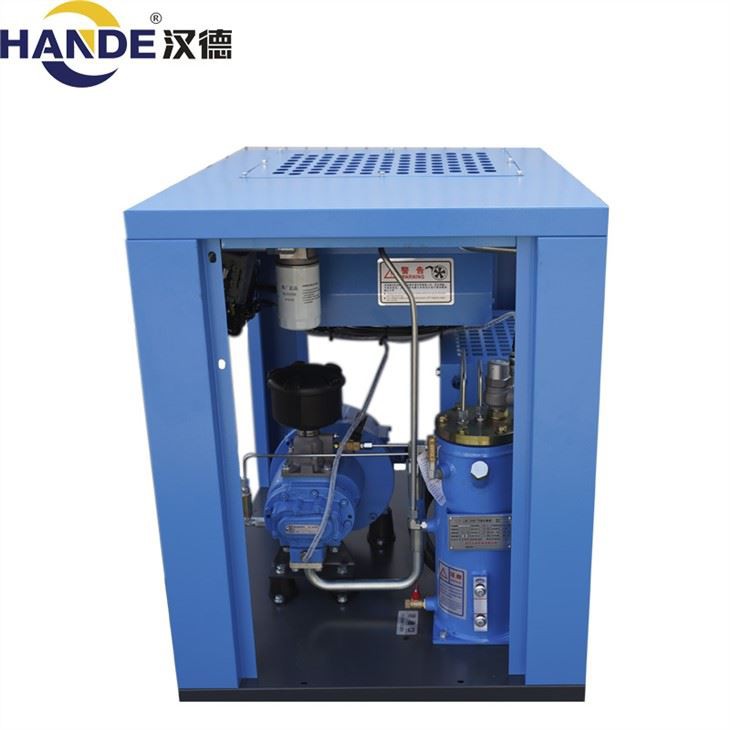

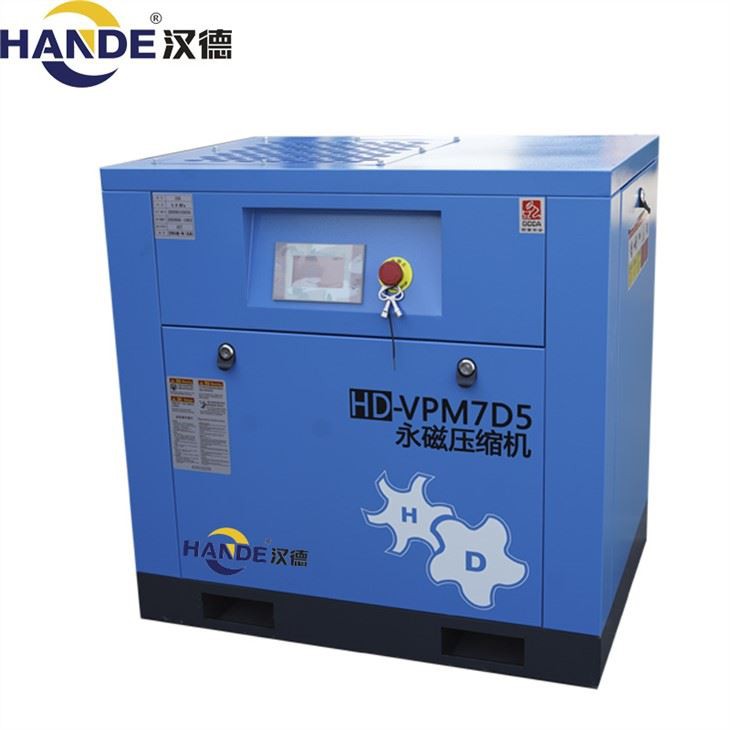

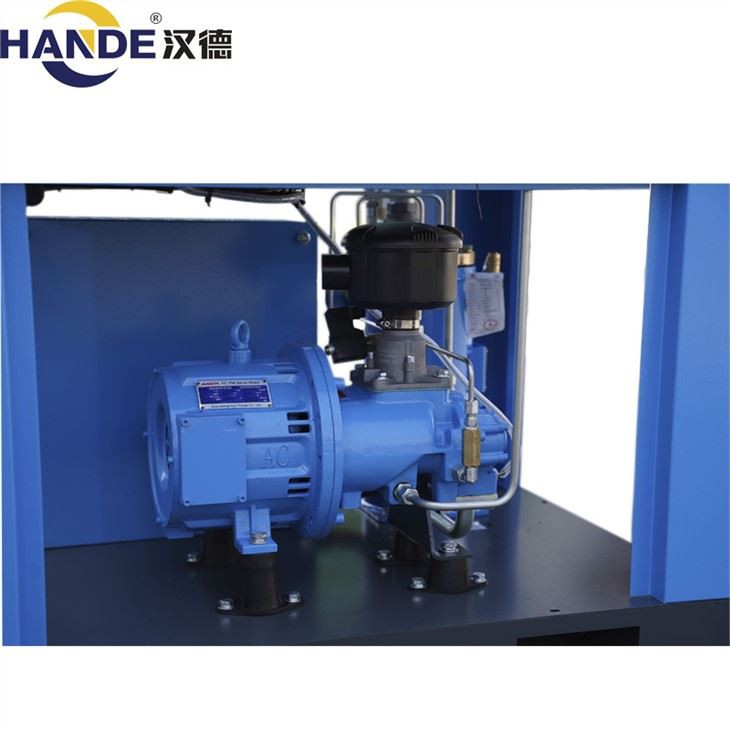

| Product display: |


| Product advantage: |
1.Optional setting pressure.
2.High efficiency while power-saving.
3.More reliable.
4.Energy saving and environmental protection.
5.Low noise of the air compressor.
In order to ensure the normal operation and long service life of the unit, good maintenance is the key. The maintenance procedures for screw compressor units must be carefully implemented. Before proceeding with maintenance, at least make the following preparations: advanced technology air compressor
1. Be sure to cut off the power of the host first and put a sign on the power switch.
2. Close the shut-off valve leading to the air supply system to prevent the compressed air from flowing back to the repaired part. Do not rely on the one-way valve to isolate the air supply system.
3. Open the manual vent valve to vent the pressure in the system and keep the vent valve in an open state. advanced technology air compressor
4. For water-cooled machines, the water supply system must be shut down to release the pressure of the water pipeline.
5. Make sure that the compressor unit is cooled to prevent scalds and burns.
6. Wipe off oil and water marks on the ground to prevent slipping.
These four points must be paid attention to during maintenance.
1. Don't think that the machine is shut down, just think that it can be overhauled and maintained. The automatic control system of the machine will start the compressor at any time.
2. Poor maintenance will not only affect the normal operation of the unit, but may also affect the safety of operators.
3. When the compressor is running or under pressure, do not disassemble nuts, fuel plugs and other parts.
4. Do not use flammable solvents such as gasoline or kerosene to clean the air filter or other parts.
All operations should be used and installed according to the instructions. Don't play on the spot by yourself, which may cause more failures of the air compressor. If you really don't know how to repair, you can contact the after-sales service personnel of the air compressor to solve it for you. advanced technology air compressor
