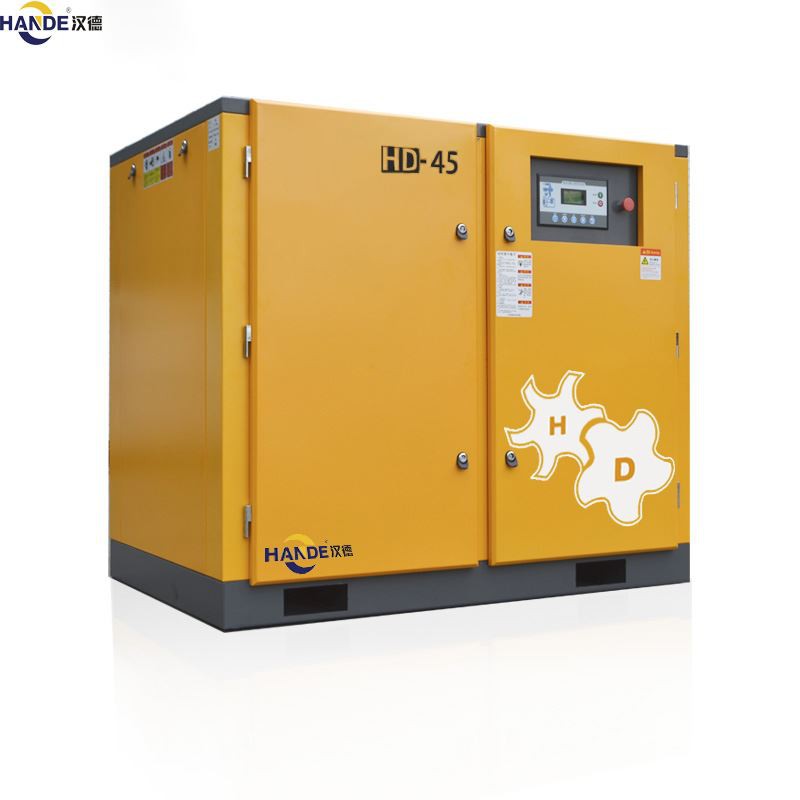

The twin-screw air compressor is a high-end product developed by Hande, According to market demand.
This product has the characteristics of large displacement and high efficiency. It adopts an integral box structure, an optimized air inlet duct design, high-efficiency NEMA motors, and high-quality components such as the original American variable-capacity host.
At the same time, it pays more attention to humanized design and noise reduction, provides a spacious work and maintenance space, facilitates the use and management of the majority of users, and is welcomed and praised by customers.
Horsepower: 400-600HP
Pressure range: 7bar-12.6bar
Air volume range: 47.2m³/min-85.5m³/min
Ordinary screw compressors use a single host to compress air from 1bar to 8bar of air. The two-stage compression screw machine divides the compression process into two stages, and uses an equal pressure ratio to set the interstage pressure, so the compression ratio of each stage is much lower than the single-stage compression ratio, the return leakage between the rotors is greatly reduced, and the volumetric efficiency And the adiabatic efficiency has been greatly improved, and the final gas production has been correspondingly improved.
The biggest advantage of the two-stage compression screw air compressor is high energy efficiency, the same power, and a larger displacement!
