| Model | HD-VPM7D5 | ||
| Working pressure: | 8bar | 10bar | 12bar |
| Air Delivery (m³/min) | 1.1 | 0.9 | 0.72 |
| Air Delivery (CFM) | 39 | 32 | 25 |
| Motor power | 10HP/7.5KW | ||
| Power voltage: | 380V/50hz/3phase (different voltage is available) | ||
| Compressor type: | Permanent magnet variable speed screw air compressor | ||
| Cooling Mode | Air cooling | ||
| Starting mode | Variable Frequency start | ||
| Ambient temperature | -5℃ ~ +45℃ | ||
| Discharge temperature | ≤Ambient temperature+15℃ | ||
| Dimension (mm) | 900*670*880 | ||

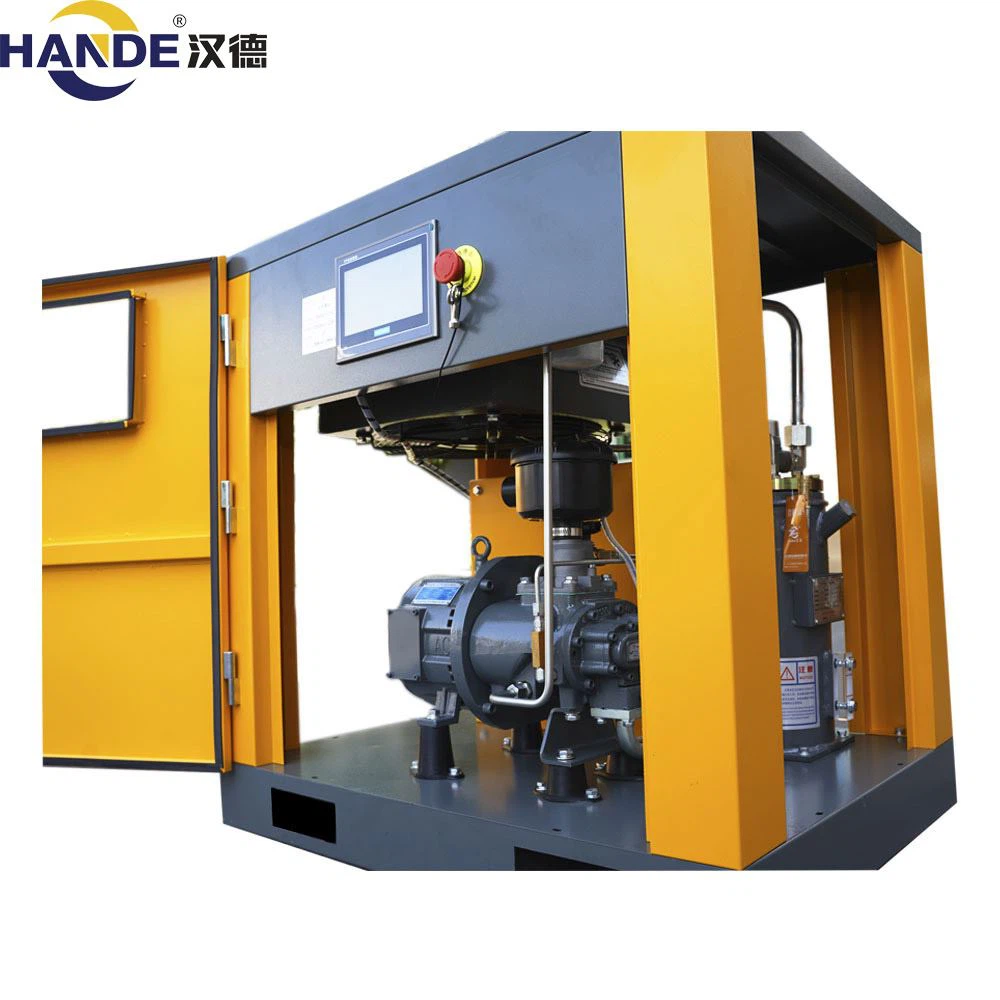

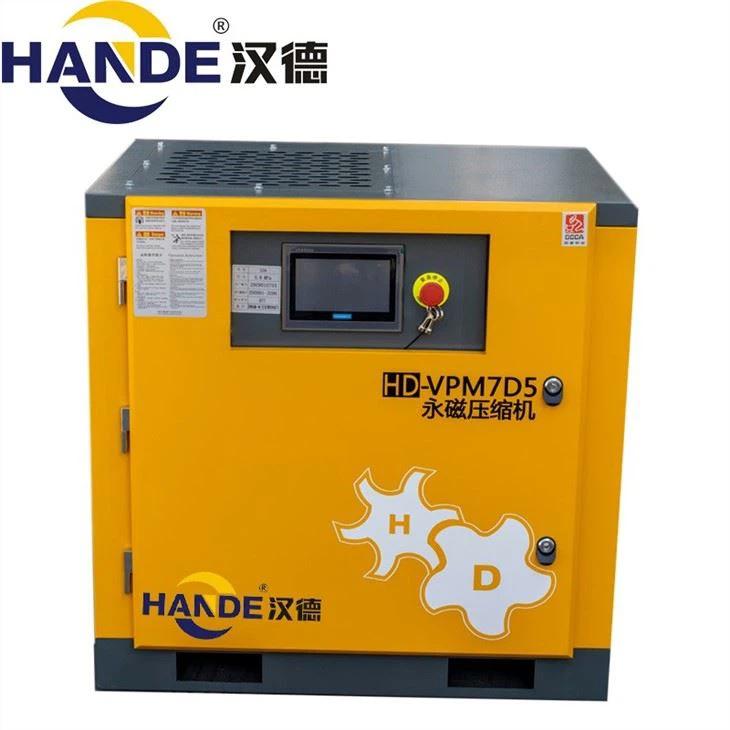

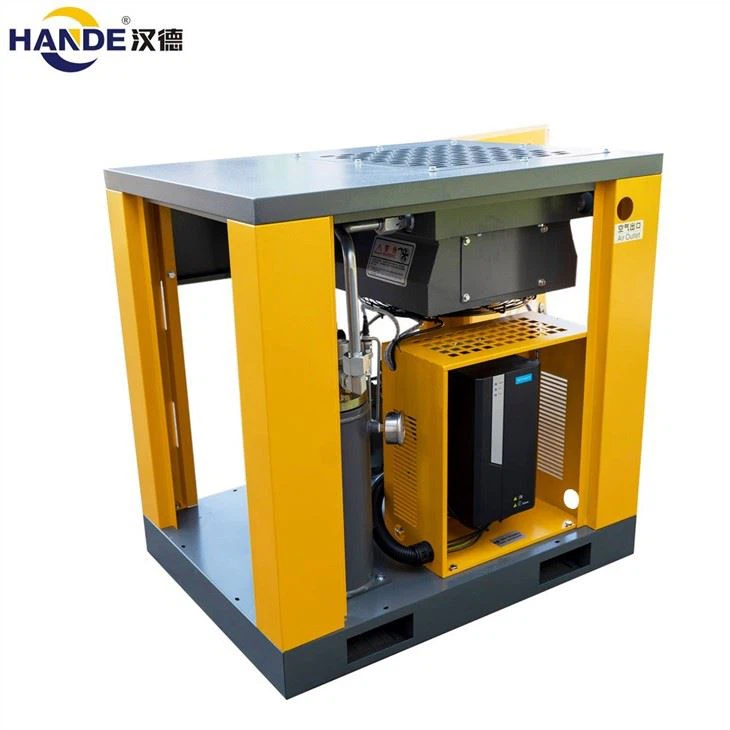

| Product display： |
| Product Overview: |
7 Bar Compressor is a kind of machine that compresses gas, raises air pressure or transports gas. It is mainly used for gas transportation, dynamic medium, cooling and gas separation. 7 Bar Compressor uses the high mute design, enables you to keep away from the noise pollution, selects the high quality muffler, the mute effect is outstanding. Real material, durable is low cost.
Our 7 Bar Compressor adopts high quality copper wire, high temperature resistance, strong power, durable, high performance, low energy consumption. It has double overload protection, equipped with safety valve, built-in overheat protector, strengthen motor protection, use more safe. It has power-off protection, which can protect the motor in case of sudden power-off.
