| Model | HD-VPM2T37 | ||
| Working pressure: | 8bar | 10bar | 12bar |
| Air Delivery (m³/min) | 7.1 | 6.3 | 5.4 |
| Air Delivery (CFM) | 251 | 223 | 191 |
| Motor power | 37KW/50HP | ||
| Power voltage: | 380V/50hz/3phase (different voltage is available) | ||
| Compressor type: | Dual Stage Compression PM VFD Screw Air Compressor | ||
| Cooling Mode | Air cooling | ||
| Starting mode | Variable Frequency Start | ||
| Ambient temperature | -5℃ ~ +45℃ | ||
| Discharge temperature | ≤ Ambient temperature+15℃ | ||
| Dimension (mm) | 1660*1115*1400 | ||

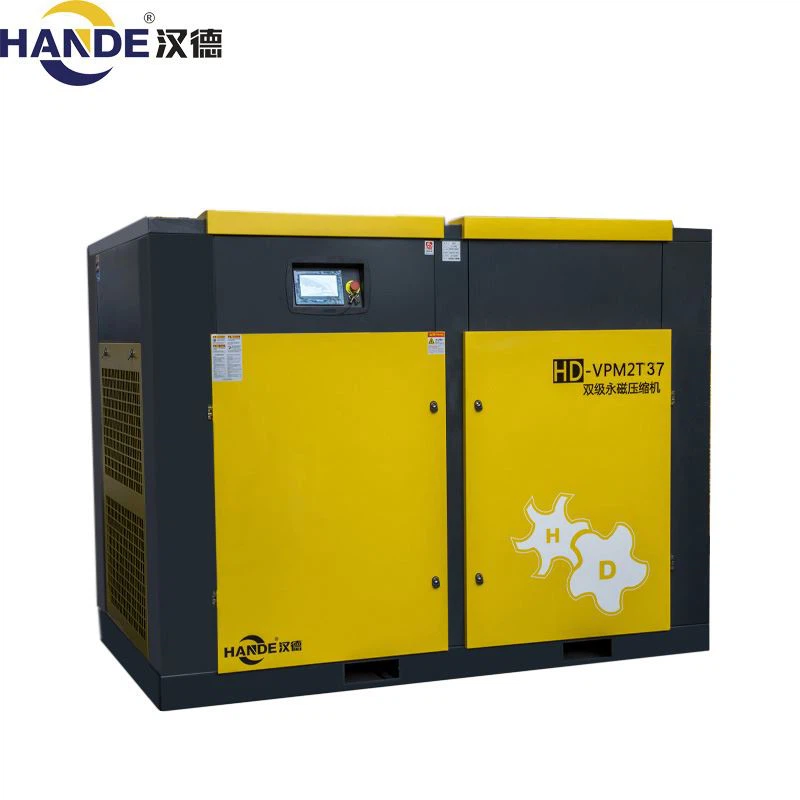

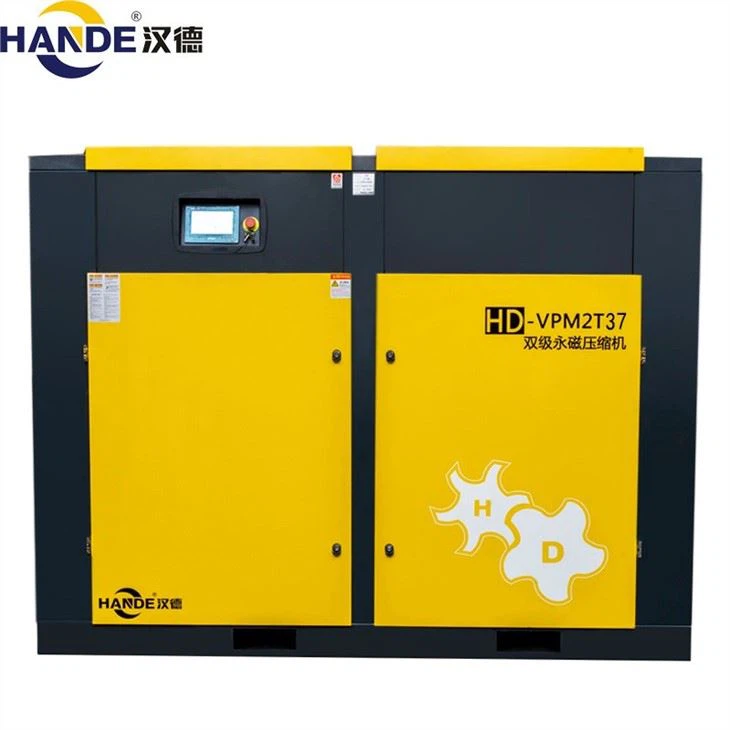

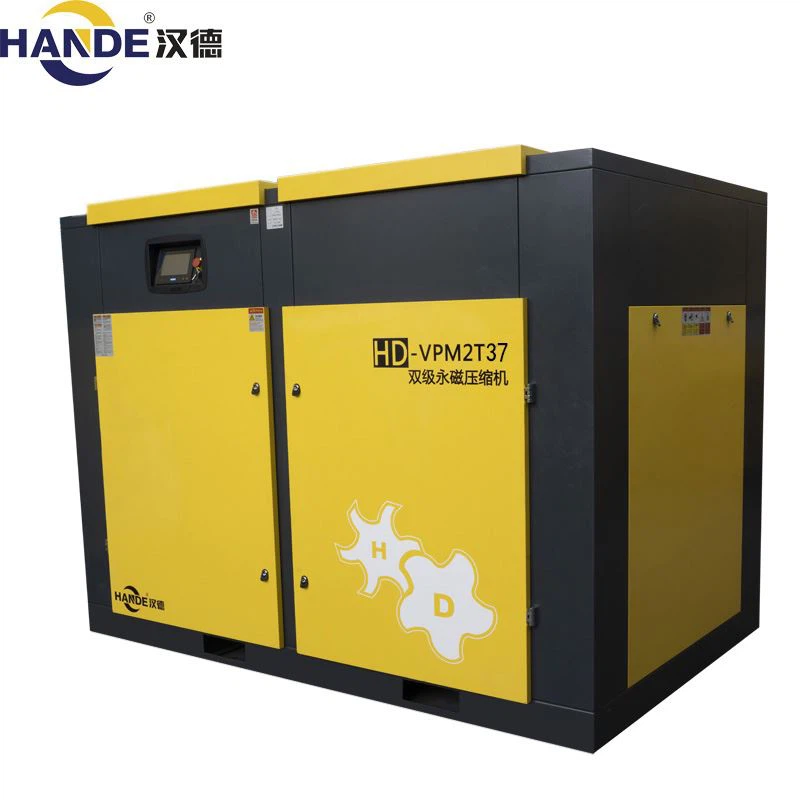

| Product display： |
| Product advantage: |
The screw air cooling compressor
●Stable and effncient operation at ultra-low frequency.
●Pressure fluctuation is controlled within +0.01MPa.
●High-performance inverter, small starting
impact, avoid starting overload.
1)Two Stage Air End
●Specially developed dual-stage compression air endfor frequency conversion technology, Low compression ratio, Low temperature rising, Low air leakage.
●Reached National Level 1 Energy Efficiency Standard, 15% energy-saving.
2 ) IE4 Permanent Magnet Motor
●The screw air cooling compressor IP55 protection for fully enclosed motor, eliminating the hidden danger of dust being attracted by the motor's magnetic steel.
●Using high-grade magnetic steel, 180°C temperature resistance.
●IE4 permanent magnet motor,Motor efficiency 97%,5% energy-saving.
3) L arge Touch Master Controller
●Matching inverter exclusive customization.
●LCD Chinese and English switch display.
●Rich self-diagnostic functions such as fault alarm,maintenance reminder, automatic shutdown, etc.
●Clock function, can set timing switch.
●cooling compressor Multiple signal outputs: RS485 port.
4 )Inverter
●ABB / Siemens brand vector control frequency conversion system, frequency conversion response speed is faster.
●Constant pressure output to remove pressure fluctuation and off-load .
●Constant temperature output at 9~85°C, Low starting current to protect components, 15% energy-saving.
