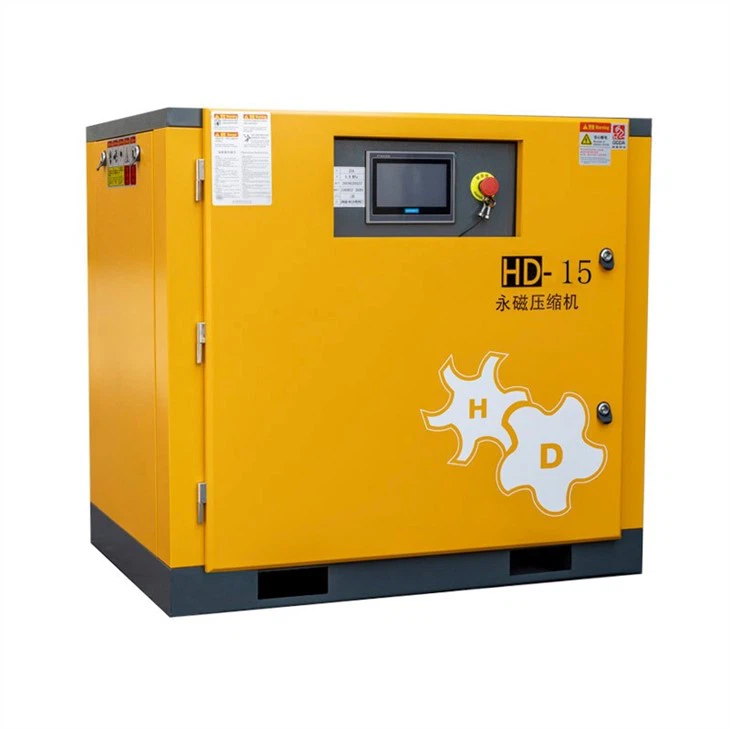

Overview
The Compressor Belt Drive is actually a device that uses air as a medium and obtains power from the process of compressing it. Our machine is mainly composed of motor, control system, oil and gas separator, screw main unit and other parts. The main material is stainless steel, which is able to resist corrosion and impact very well, so it has a long service life. The operating system of our Compressor Belt Drive is very intelligent and humanized, so it is easy to use.
Feature
Our Compressor Belt Drive has won the favor of users in the market with its good performance and reasonable price.
1. It has large aperture cooling holes for fast heat dissipation and long service life.
2. It reduces the rapid heat dissipation of the air compressor system and ensures that the system temperature is not high.
3. 5-in-1 vibration and noise reduction.
4. It adopts honeycomb cotton, which has excellent sound insulation performance and can greatly reduce noise.
Specification
| Model | HD-15 | ||
| Working pressure: | 8bar | 10bar | 12bar |
| Air Delivery (m³/min) | 2.2 | 1.9 | 1.8 |
| Air Delivery (CFM) | 78 | 67 | 64 |
| Motor power | 15KW/20HP | ||
| Power voltage: | 380V/50hz/3phase (different voltage is available) | ||
| Compressor type: | Fixed Speed Rotary Screw Air Compressor | ||
| Cooling Mode | Air cooling | ||
| Starting mode | Star-delta Start | ||
| Ambient temperature | -5℃ ~ +45℃ | ||
| Discharge temperature | ≤ Ambient temperature+15℃ | ||
| Dimension (mm) | 1080*750*1000 | ||
| Product display： |
| Company introduction |
| Production Capability |
| Corporate Qualifications |
| Global exhibition & Training |
| Packing and delivery |
