Introduction
30 Hp Rotary Screw Air Compressor has high reliability, few parts and no wearing parts, so it runs reliably and has a long life. The design life of the main screw machine head is generally up to 30 years. Besides, it has strong adaptability, with the characteristics of forced gas delivery, the volume flow is almost not affected by the exhaust pressure, and it can maintain high efficiency in a wide range of working conditions. 30 Hp Rotary Screw Air Compressor can be widely used in food, medicine And cotton spinning and other industries.
| Model | HD-22 | ||
| Working pressure: | 8bar | 10bar | 12bar |
| Air Delivery (m³/min) | 3.6 | 3.2 | 2.7 |
| Air Delivery (CFM) | 127 | 113 | 95 |
| Motor power | 22KW/30HP | ||
| Power voltage: | 380V/50hz/3phase (different voltage is available) | ||
| Compressor type: | Fixed Speed Rotary Screw Air Compressor | ||
| Cooling Mode | Air cooling | ||
| Starting mode | Star-delta Start | ||
| Ambient temperature | -5℃ ~ +45℃ | ||
| Discharge temperature | ≤ Ambient temperature+15℃ | ||
| Dimension (mm) | 1380*850*1160 | ||

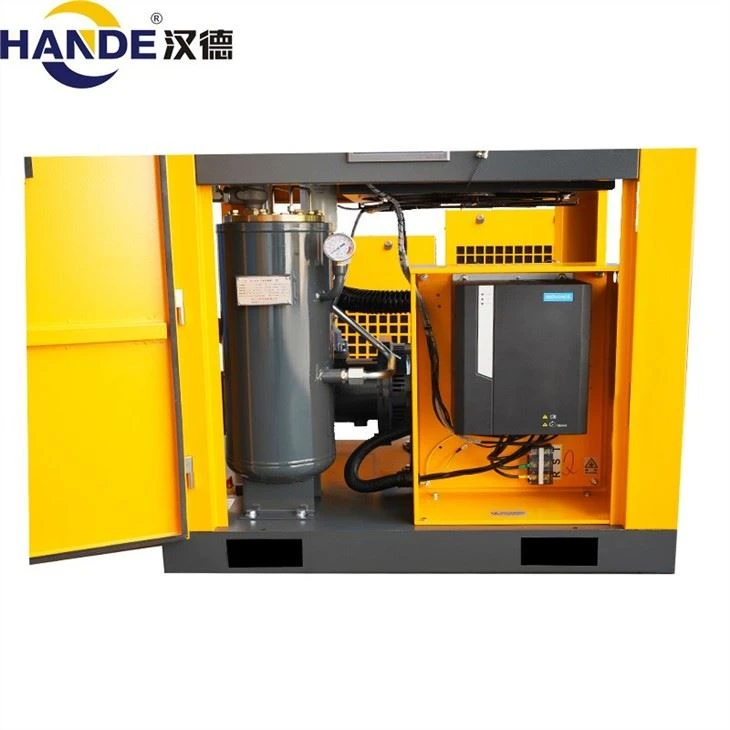

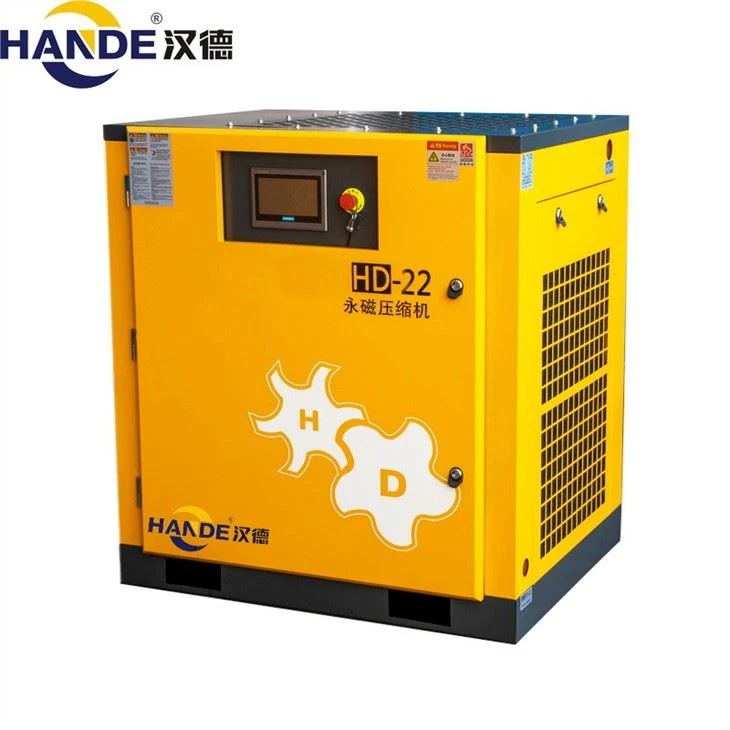

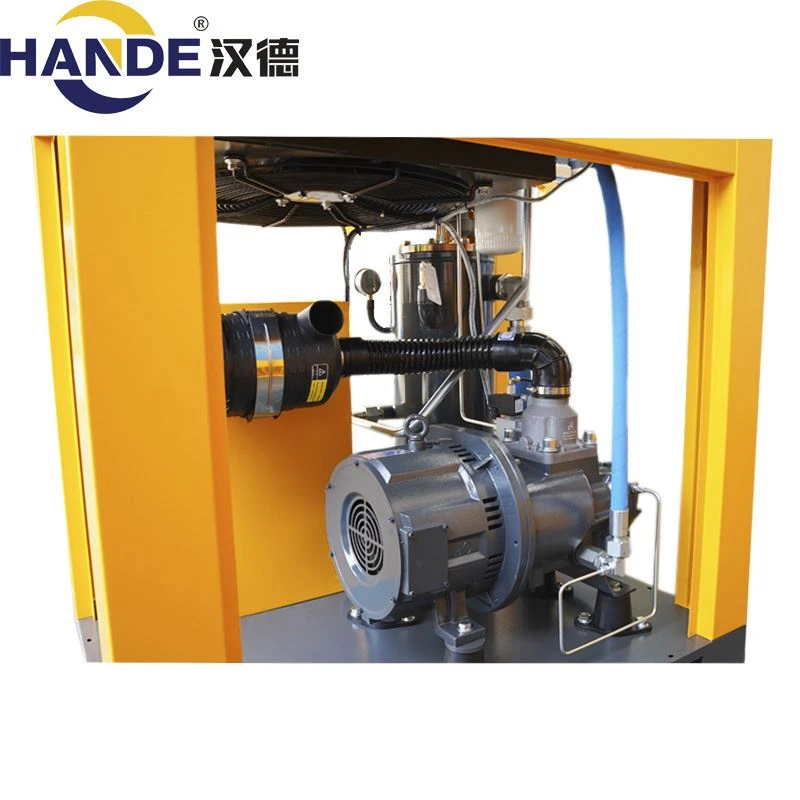

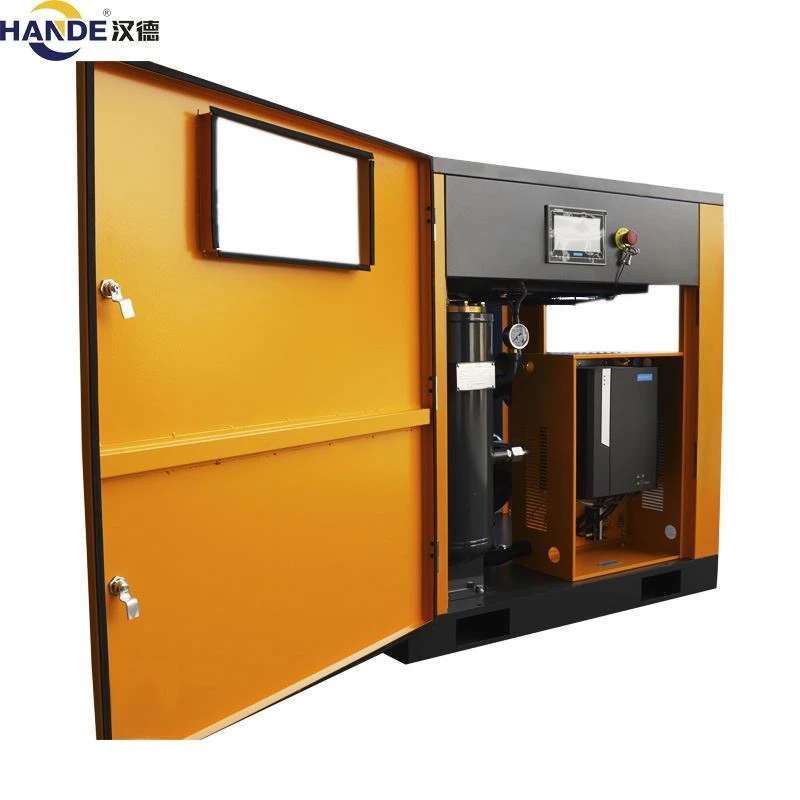

| Product Display: |


| Product Advantages |
1. 30 Hp Rotary Screw Air Compressor has high efficiency cooling system.
2. Integrated & high efficiency oil and gas separation system.
3. Compact structure, ultra-low noise design.
4. Advanced design concept makes the unit vibration value much lower.
5. High energy efficiency grade brought by the high-quality accessories.
6. Rational design, long running time and reliability.
7. Good power balance, no unbalanced inertial force, the machine can work steadily and at high speed, and realize no foundation operation.
