Compressor Air Machine

Compressor Air Machine

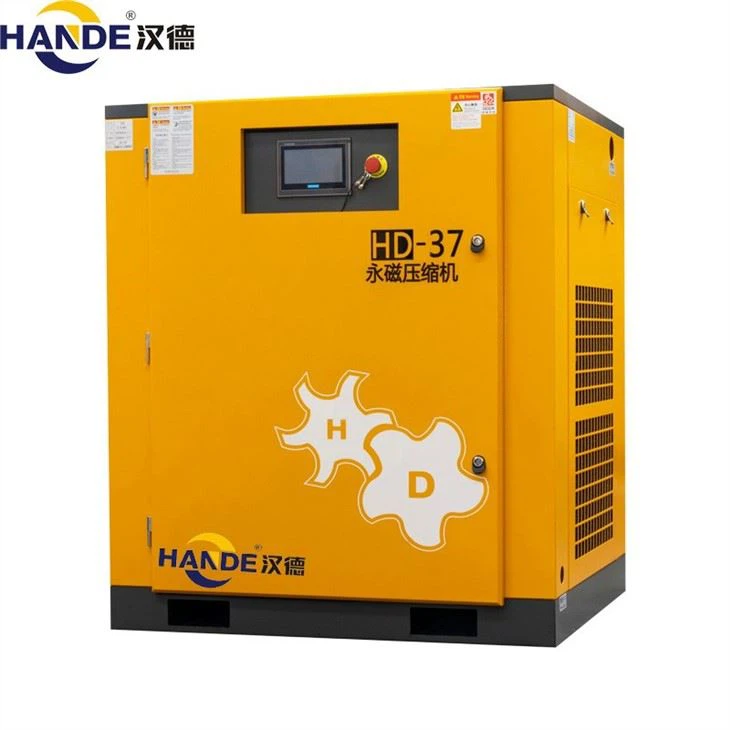

37KW 50HP fixed speed rotary screw compressor Specification
Model: HD-37
Power: 50HP/37kw
Working pressure: 8bar - 12bar
Air delivery: 6.2m³/min (219cfm)
Power voltage: 380V/50hz/3phase (different voltage is available)
OEM & ODM service support.

Product Introduction
ModelHD-37
Working pressure:8bar10bar12bar
Air Delivery (m³/min)6.25.255
Air Delivery (CFM)219186177
Motor power37KW/50HP
Power voltage:380V/50hz/3phase (different voltage is available)
Compressor type:Fixed Speed Rotary Screw Air Compressor
Cooling ModeAir cooling
Starting modeStar-delta Start
Ambient temperature-5℃ ~ +45℃
Discharge temperature≤ Ambient temperature+15℃
Dimension (mm)1500*1000*1330


Product display:

44


Product advantage:

Model: HD-50, 37KW 50HP compressor air machine, fixed speed rotary screw air comprssor, pls feel free to contact us for inquiry. My email: carly@gdhdair.com

37KW 50HP compressor air machine performance:

1.Germany imported technology air end makes sure the 30 years desgined lifetime.

2. Factory direct-selling with lower cost to help you save the payment throughthe agent or trading company.

3. Original Imported core spare parts, such as electrical control system,electromagnetic valve, and ects. to make sure the sufficient air supply, and the life-time of the air compressor.

4. Full copper coil motor to make sure the high efficiency.

5. Ultra-quiet design to make the noise under 68dB

6. Shock Absorbers design to reduce the equipment damage;

7.Oil-gas tank with German technology to ensure the oil content is less than 2ppm

News:

What is the lubrication oil replacement cycle of screw air compressor?

The role of the lubricating oil of the screw air compressor is to form a protective film between the critical points of the two friction screws to avoid contact between the screws, thus buffering the effect of friction, playing a lubrication role and reducing wear; In addition, there are cooling, noise reduction, sealing, rust prevention and other functions, but the use of lubricating oil is a certain period, we need to determine the replacement period according to the specific use environment.

So what factors will affect the replacement cycle of lubricating oil of screw air compressor? Lubricating oil quality will directly determine its use cycle. As long as it is produced by regular manufacturers and qualified quality verification of lubricating oil, it can be replaced once in a standard environment for 4000 hours, while the replacement cycle of inferior lubricating oil is very short; If the humidity in the air is greater, it means that the more water enters the air compressor, and the mixture of water and lubricating oil will lead to deterioration of lubricating oil, which will affect its service life; Impurities will contaminate the lubricating oil, resulting in its failure; There will be a large amount of acid-base gas in the use environment of some air compressors. The type of gas will also affect the working performance of lubricating oil, thus leading to the shortening of its service life.
