Screw Air Compressor Technical Parameters
序号/Sr.No. | 项目/Item Name | 单位/Unit | 参数/Datas | 备注/Remarks | |
1 | 公称容积流量/额定排气压力/F.A.D/Pressure | （m3/min）/ MPa | 1.0/0.8 | ||
2 | 环境温度/Ambient Temperature | ℃ | -5～+45 | ||
3 | 冷却方式/Cooling Mode | 风冷/Air Cooling | |||
4 | 排气温度/Discharge Temperature | ℃ | ≤环境温度+15 /≤Ambient Temperatur+15 | ||
5 | 润滑油量/Oil Volume | L/kg | 4L | ||
6 | 传动方式/Driven Mode | 直联/Direct | |||
7 | 气量调节方式/Adjusting way of air capacity | ON/OFF | |||
8 | 气体含油量/Oil Content in Discharge Air | ppm | ≤3 | ||
9 | 噪声/Noise | dB(A) | 68±2 | ||
10 | 润滑油牌号/Oil Brand | 壳牌Shell,S46 | |||
11 | 安全阀设定压力/Safety valve setting pressure | MPa | 额定工作压力x1.1 /Nominal Working Pressure x1.1 | ||
12 | 电动机/Motor
| 功率/Motor Power | kW | 7.5 | |
转速/Main Motor Nominal Rpm | rpm | 2980 | |||
起动方式/Starting Mode | 直启/Direct Start | ||||
电压/频率Voltage/Frequency | V/Hz | 380/50 | |||
防护等级/绝缘等级Protection Class/Insulation Class | IP54/F | ||||
13 | 风机/Fan
| 功率/Fan Power | kW | 0.18 | |
电压/频率Voltage/Frequency | V/Hz | 380/50 | |||
转速/ Main Fan Nominal Rpm | rpm | 1440 | |||
风量/Air Volume | m3/h | 2800 | |||
14 | 冷干机/Air dryer | 型号/Model | FL01-HD | ||
功率/Power | kW | 0.37 | |||
额定处理量/Air flow | M3/min | 1.2 | |||
电压频率/Voltage/Fn | V/Hz | 220V/50Hz | |||
进气温度/Intake Temp. | ℃ | ≤65℃ | |||
15 | 外形尺寸 | mm | 1430*710*1470 | ||
16 | 储气罐体积 | L | 250 | ||
17 | 整机重量 | kg | 380 | ||
18 | 输气口连接尺寸 | Rp3/4 | |||

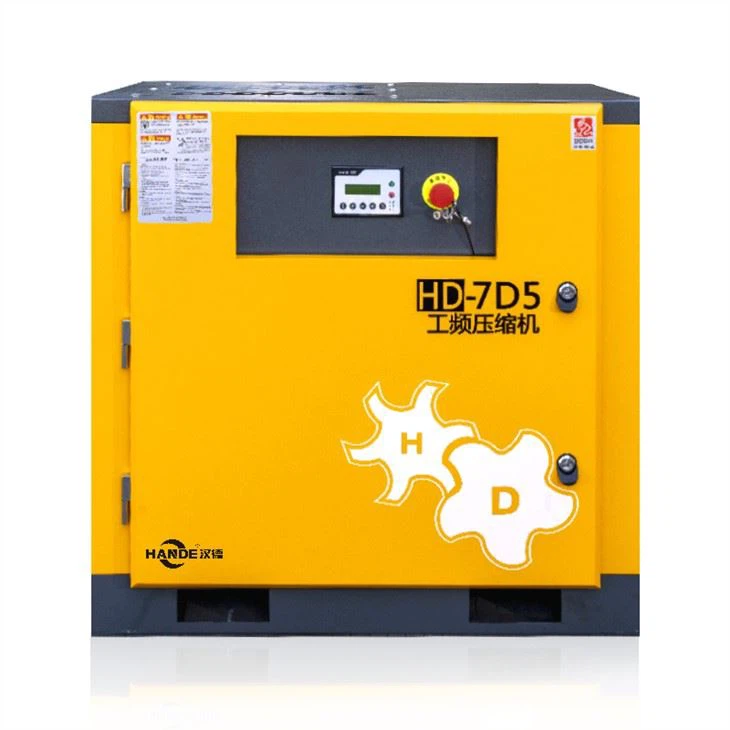

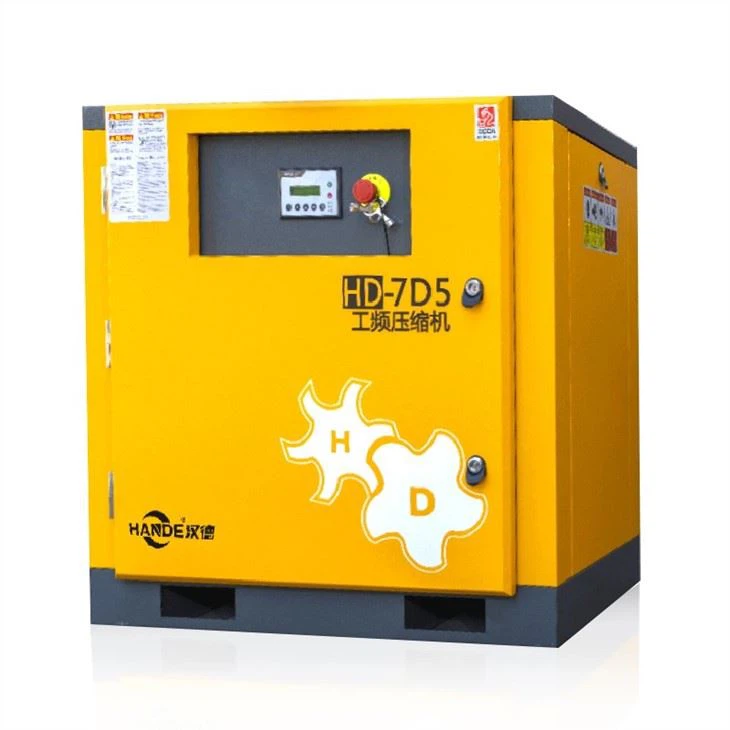

7.5KW Screw Air Compressor Feature
- Environment protection and good durability
- Low vibration and low noise
- High efficiency, heavy loading and silence
Note: the Hande 7.5KW Screw Air Compressor, model HD-7D5 follows the standard configuration above. If there is anything need to customize, please feel free to contact with sales & technical support.

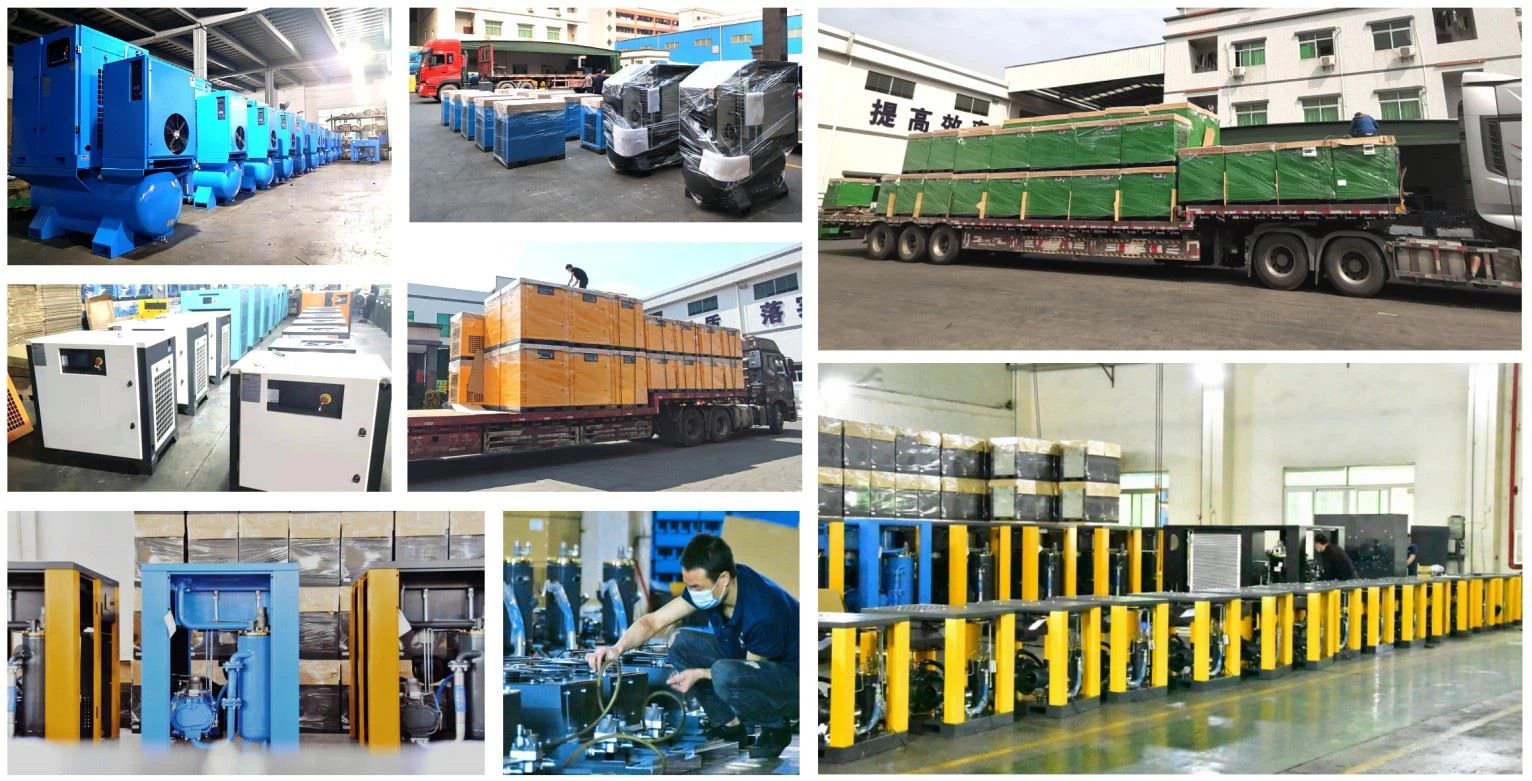

About Hande Air Compressor

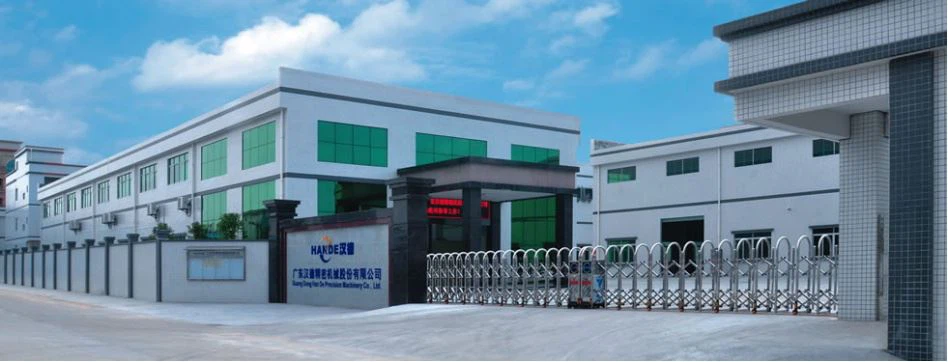

Guangdong Hande precision Machinery Co.,Ltd. Is one of a well known China’s leading manufacturers and providers of all series air compressed products and services.
Established in 2016 but has been in the industry for more than 2 decades, Hande team is tending to set up a brand new and smart manufacturing workshop to fulfill its INDUSTRY 4.0 process.
At the beginning, Hande severs for OEM/ODM for many famous air compressor brand name at home and abroad, reaching the annual sales 0.5 Billion RMB and, In order to release the productivity capacity, the Hande Industry Park is under construction, tending to be finished by 2022.
Currently, Hande has 32 agents and distributors in China, and 1 branch office in Vietnam. For the growing sales and global strategy, Hande welcomes world friends to set up business together to lead a valuable smart, peace and environmental life.
