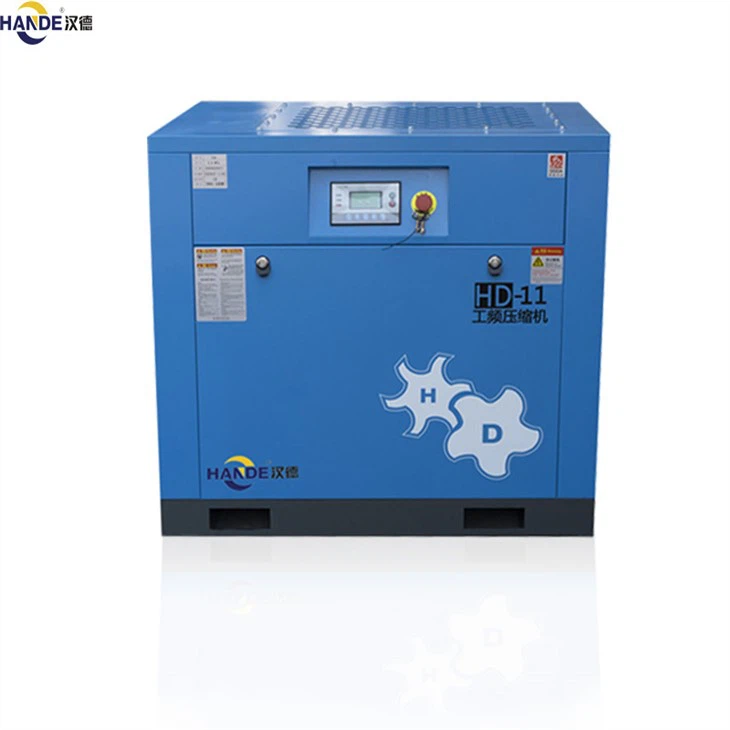

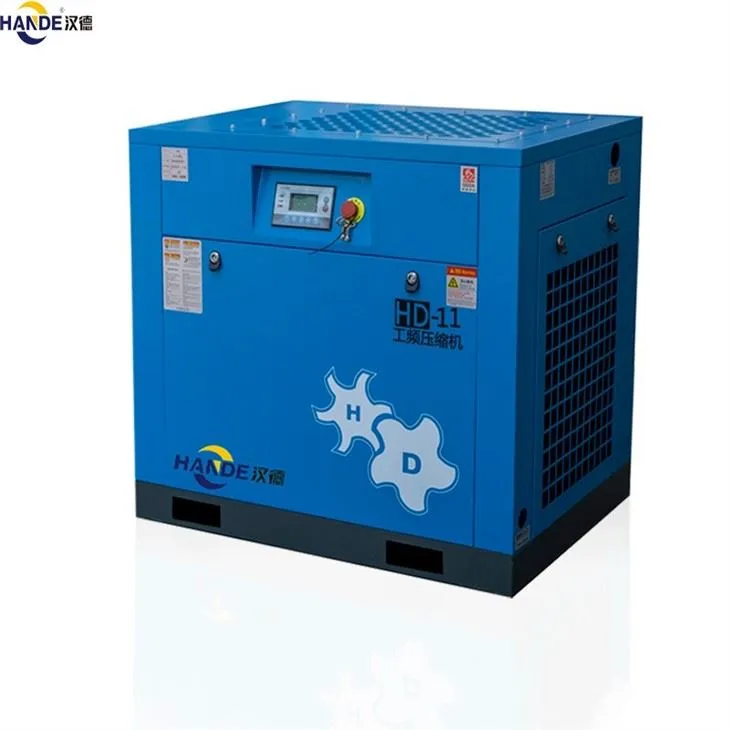

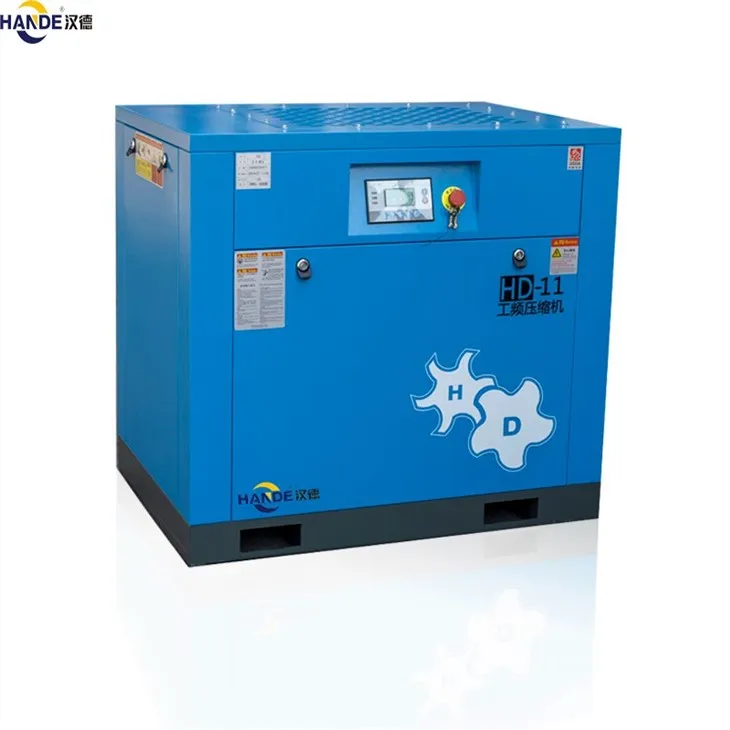

240v air compressor for sale Specifications:

序号/Sr.No.	项目/Item Name		单位/Unit	参数/Datas	备注/Remarks
1	公称容积流量/额定排气压力/F.A.D/Pressure		（m³/min）/ MPa	1.5/0.8
2	环境温度/Ambient Temperature		℃	-5～+45
3	冷却方式/Cooling Mode			风冷/Air Cooling
4	排气温度/Discharge Temperature		℃	≤环境温度+15 /≤Ambient Temperatur+15
5	润滑油量/Oil Volume		L/kg	10L
6	传动方式/Driven Mode			直联/Direct
7	气量调节方式/Adjusting way of air capacity			ON/OFF
8	气体含油量/Oil Content in Discharge Air		ppm	≤3
9	噪声/Noise		dB(A)	68±2
10	润滑油牌号/Oil Brand			壳牌Shell,S46
11	安全阀设定压力/Safety valve setting pressure		MPa	额定工作压力x1.2 /Nominal Working Pressure x1.2
12	电动机/Motor	功率/Motor Power	kW	11
		转速/Main Motor Nominal Rpm	rpm	2980
		起动方式/Starting Mode		Y-△启动/Star-delta Start
		电压/频率Voltage/Frequency	V/Hz	380/50
		防护等级/绝缘等级Protection Class/Insulation Class		IP23/F
13	风机/Fan	功率/Fan Power	kW	0.36
		电压/频率Voltage/Frequency	V/Hz	380/50
		转速/ Main Fan Nominal Rpm	rpm	1440
		风量/Air Volume	m³/h	3800
14	外形尺寸/Dimentions		mm	1080x750x1000
15	重量/N.W		kg	292
16	出口管径/Outlet Connection		in	Rp3/4

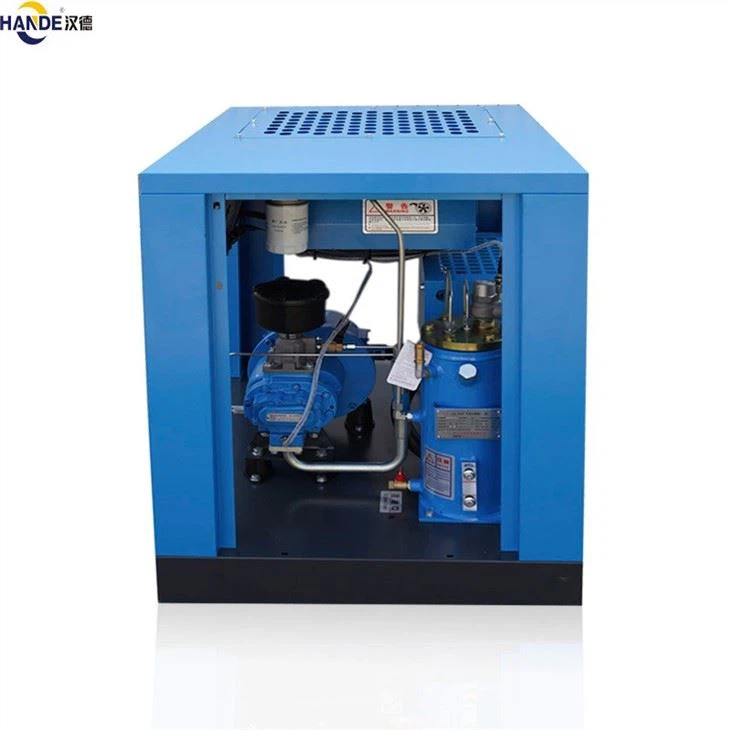

Excellent air end

1. precise rotors, engineered for 100% duty. 24hours*7days running.

2. Low operating speed for long lifespan.

3. Low maintance and low noise.

High efficiency motor

Three-phase asynchronous motor specifically designed for compressor has the characteristics of high efficiency, engine saving, low noise, low vibration and high reliability.

Easy operation control pannel

1. multi-language for choice.

2. display working status in real time.

3. history record check.

4. error alert, maintenance reminding.

Stable electronic control system

1. precision and durable electrical components.

2. powerful troubleshooting and protection performance.

3. precise frequency conversion control reduces operation cost.

Rebust cooling system

Equipped with temperature control cooling fan, to achieve optimal oil temperature control, extended 30% lubricant life time.

High efficiency filtration system
