Name: Hande Screw Style Air Compressor
Brand: Hande
SKU: 171935607

Hande Screw Style Air Compressor

The screw airend is the heart part of the screw air compressor, and its performance directly affects the economic cost and service life of the whole machine

Original imported SKF bearing;

The advanced SAP screw profile reduces the impact and vibration limit of the machine and effectively prolongs the life of the moving parts;

The moving parts are of good material and high machining accuracy;

With screw linear speed and high compression efficiency, it can save more than 5% energy than similar products in the market.

序号/ Sr.No.	项目/Item Name		单位/Unit	参数/Datas	备注/Remarks
1	公称容积流量/额定排气压力/F.A.D/Pressure		（m³/min）/ MPa	13.1/0.8
2	环境温度/Ambient Temperature		℃	-5～+45
3	冷却方式/Cooling Mode			Air Cooling
4	排气温度/Discharge Temperature		℃	≤Ambient Temperatur+15
5	润滑油量/Oil Volume		L/kg	48L
6	传动方式/Driven Mode			Direct
7	气量调节方式/Adjusting way of air capacity			PM VFD
8	气体含油量/Oil Content in Discharge Air		ppm	≤3
9	噪声/Noise		dB(A)	78±2
10	润滑油牌号/Oil Brand			Shell,S46
11	安全阀设定压力/Safety valve setting pressure		MPa	Nominal Working Pressure x1.2
12	电动机/Motor	功率/Motor Power	kW	75
		转速/Main Motor Nominal Rpm	rpm	3000
		起动方式/Starting Mode		PM VFD
		电压/频率Voltage/Frequency	V/Hz	380/50
		防护等级/绝缘等级Protection Class/Insulation Class		IP54/F
13	风机/Fan	功率/Fan Power	kW	1.5
		电压/频率Voltage/Frequency	V/Hz	380/50
		转速/Main Fan Nominal Rpm	rpm	1440
		风量/Air Volume	m³/h	12000
14	外形尺寸/Dimentions		mm	1800x1250x1670
15	重量/N.W		kg	1760
16	出口管径/Outlet Connection		in	Rp2

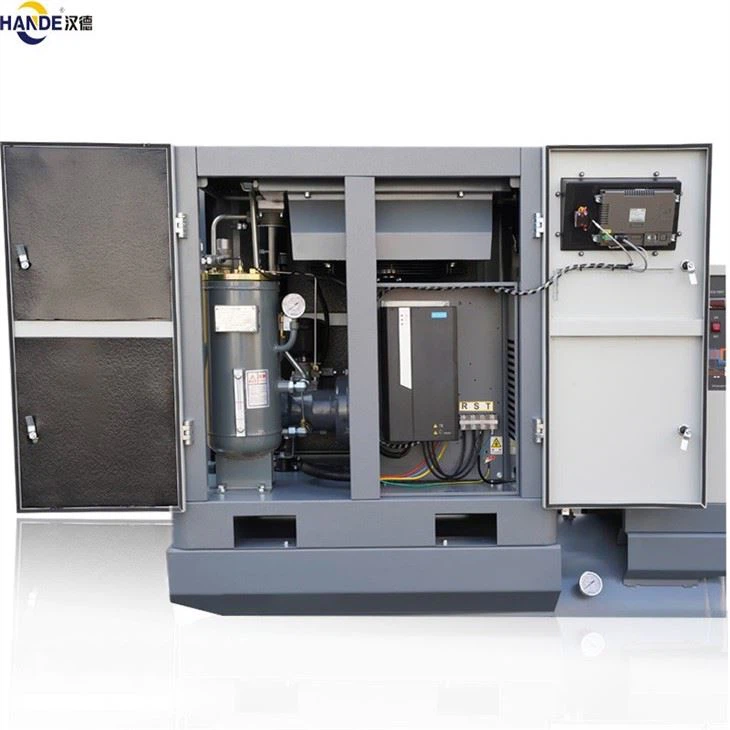

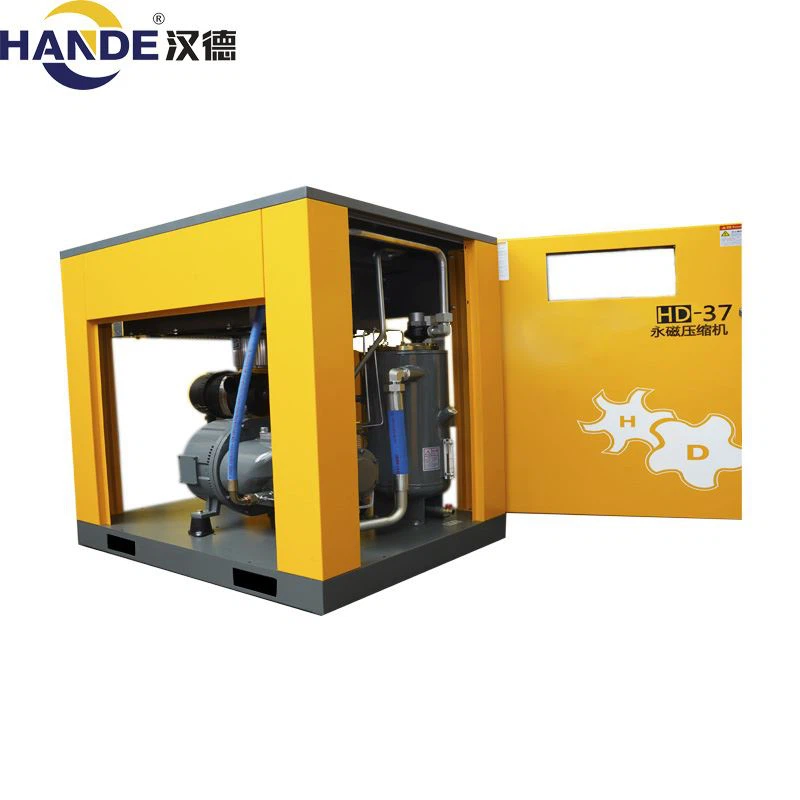

Product display：

·Reliable Air Manager computer control system with complete adjustment and protection functions to ensure the stable operation of the system.

·Color screen display, beautiful and clear operation interface, convenient for user man-machine dialogue;

·Large screen display, touch button, more user-friendly design and easier operation;

·Adapt to harsh working conditions: it can operate normally in an environment with a temperature of -10~60°C and a relative humidity of 90%, and the protection level of the panel is IP54;

·The memory can be expanded with 2GB SD card, and the information storage capacity is larger;

·A variety of status signal display methods, so that users can see the running status of the air compressor at a glance;

·The internal operating status of the air compressor can be uploaded to the upper system through the communication module, so as to achieve real-time monitoring in the true sense;

·Support Chinese, English, French three language switching forms;

·Schneider controller.
