| Model | HDC-VPM7D5 | ||
| Working pressure: | 10bar | ||
| Air Delivery (m³/min) | 0.9m3/min | ||
| Motor power | 10HP/7.5KW | ||
| Power voltage: | 380V/50hz/3phase (different voltage is available) | ||
| Compressor type: | Permanent magnet variable speed screw air compressor | ||
| Cooling Mode | Air cooling | ||
| Starting mode | Variable Frequency start | ||
| Ambient temperature | -5℃ ~ +45℃ | ||
| Discharge temperature | ≤Ambient temperature+15℃ | ||
| Dimension (mm) | 1730*780*1640 | ||

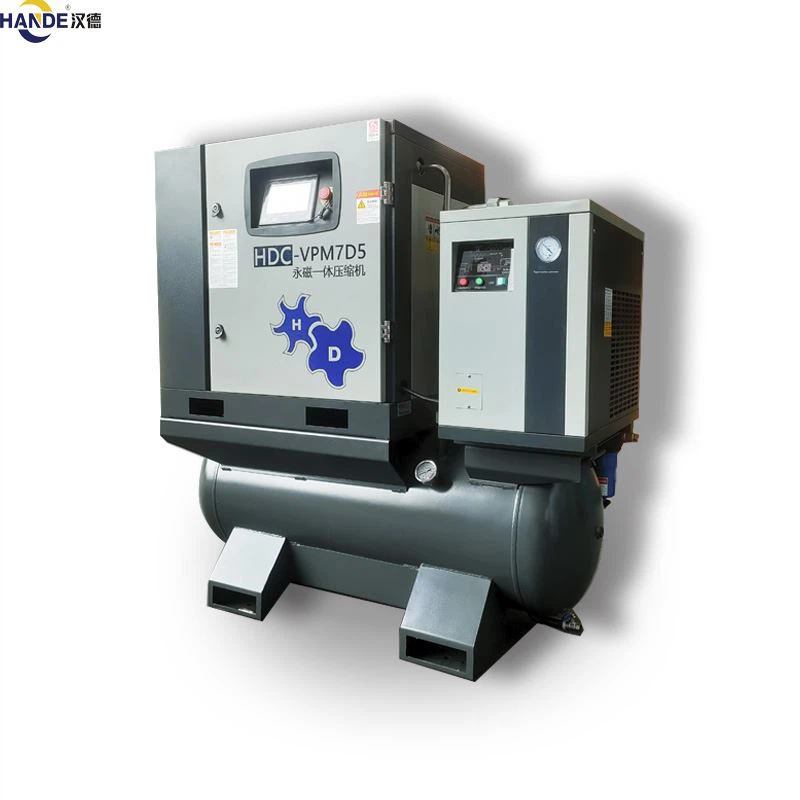

10HP compressor, The fully-assembled product, HANDE Combined Screw Air compressor is assembled with screw air compressor, refrigerated air dryer, air receiver tank and precision filter.
The HANDE screw compressor is your choice for performance, technology and durability without breaking the bank.
Whatsapp: (86) 13510473586 or email carly@gdhdair.com for a free quote, Let's discuss more and we will get in contact soon.
Features Of Direct Driven 10HP compressor Screw Air Compressor
1 . Air end with high-efficiency
2. Double Screw with low noise, Super Silenced Enclosure
3. Elegant compact design. Fully open access door to inner parts for easy service.
4. 100% Continuous duty operation. Load/No Load operation
5. High quality CE Certificate industrial electric motors. ISO,CE,UL Certificate
6. Supply the machine with different working voltage according to customer's request,
such as: 380Volt,3phase,50hz
420Volt,3phase,50hz
380Volt,3phase,60hz
220Volt,3phase and 60hz, et

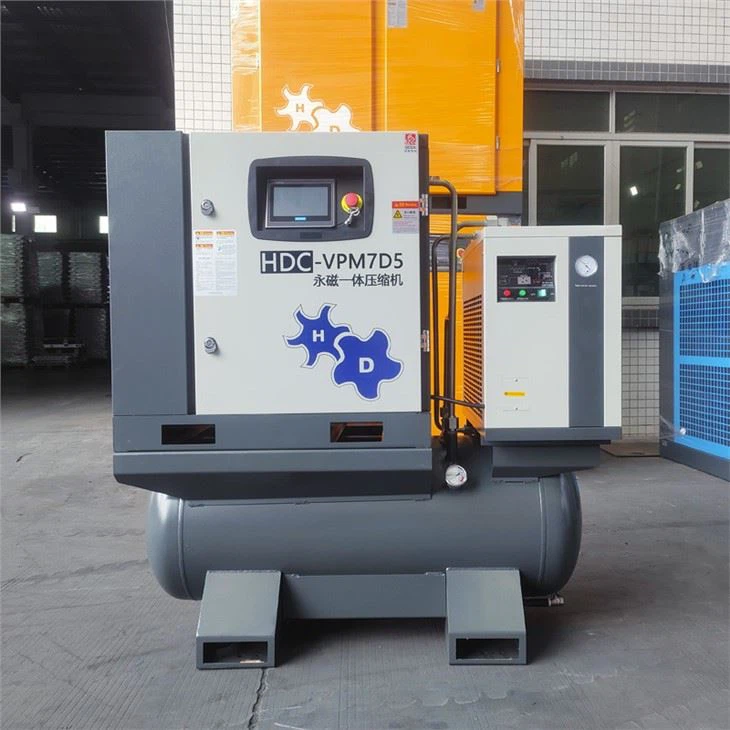

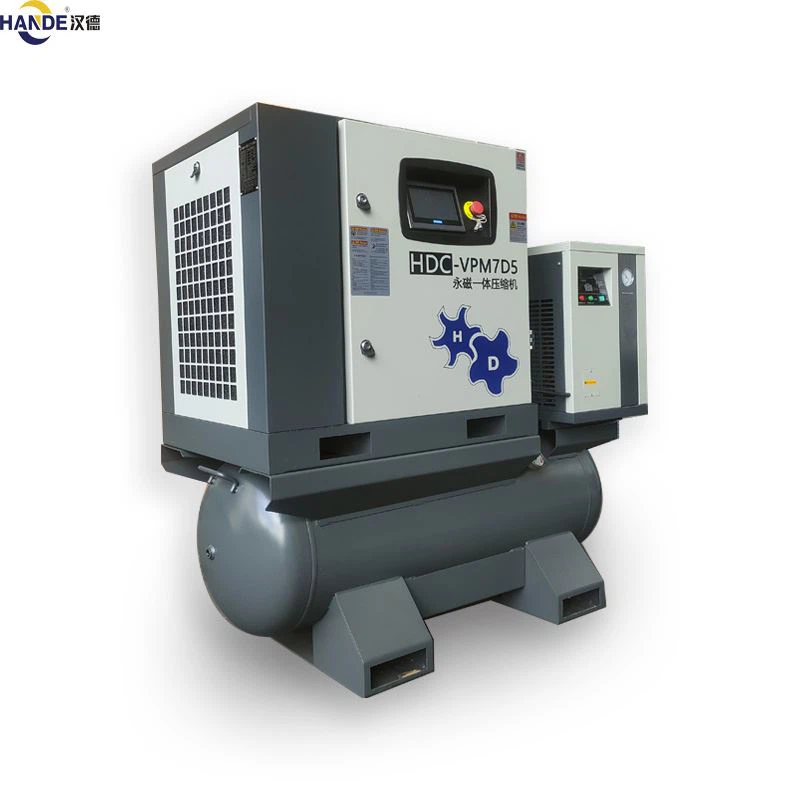

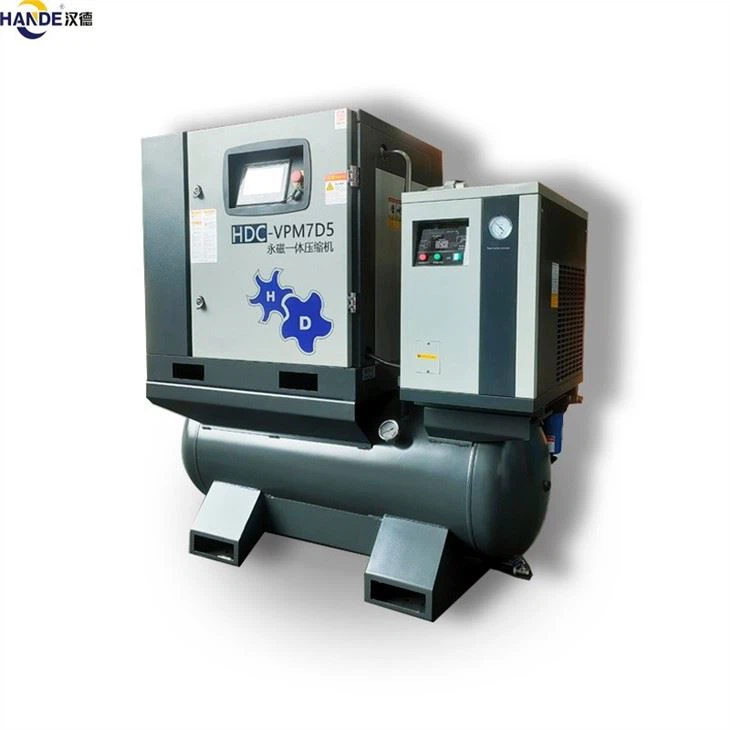

| Product display: |


| Product advantage: |
Whatsapp: (86) 13510473586 or email carly@gdhdair.com for a free quote, Let's discuss more and we will get in contact soon.
Company introduction |

| Production Capability |

| Corporate Qualifications |


| Global exhibition & Training |

| Packing and delivery |
