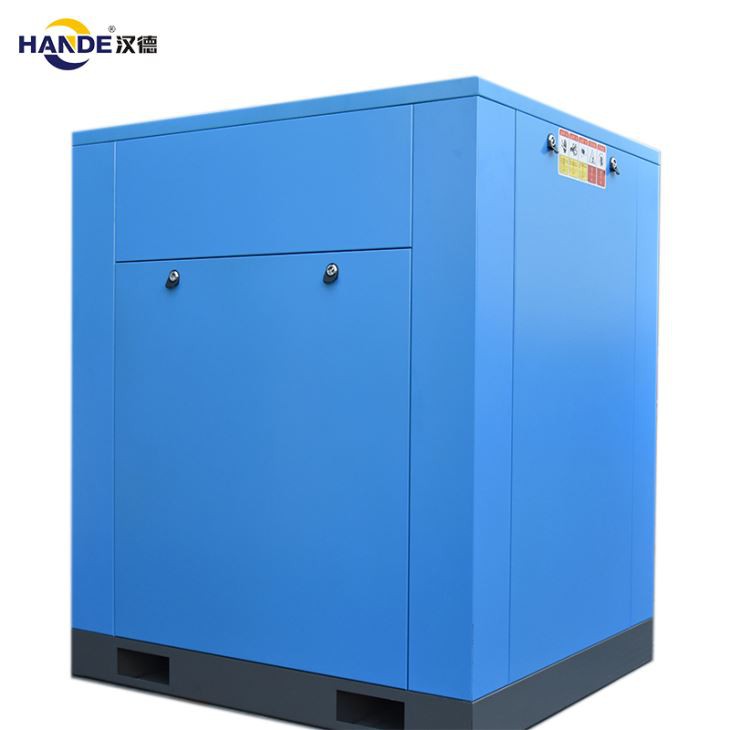

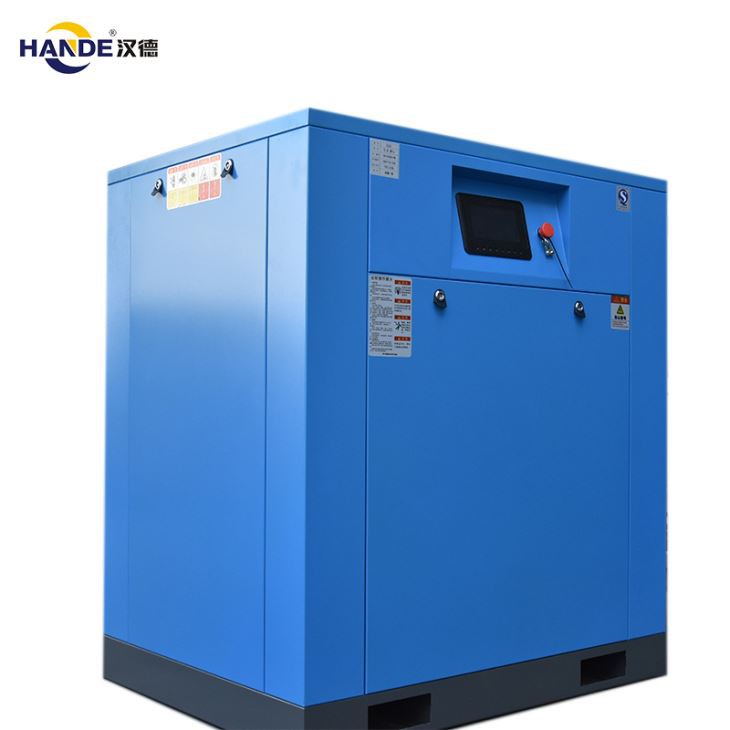

General Industrial Equipment 35kw Screw Air Compressor
Screw air compressor adopts pre-set configuration screw air compressor only needs a single power connection and compressed air connection, and built-in cooling system, greatly simplifying the installation.Screw type air compressor with its high efficiency, high efficiency, no maintenance, high reliability and other advantages of consistent for all walks of life to provide quality compressed air.
Main composition
1.Maintenance free drive system.
- The GA drive system is 100% maintenance free – eliminating the risks inherent to the greasing of conventional motor bearings.
- Patented technology allows the drive system to run in ambient temperatures up to 55°C/131°F.*
2.Oil filter.
- A high efficiency oil filter removes 300% smaller particles than a conventional filter, providing clean oil to extend the lifetime of all lubricated parts in the compressor.
- The oil filter rating of ß12=75 sets a new industrial compressor standard that is fully compliant with ISO 16889.
3.Aftercooler with integrated water separator.
- The GA's aftercooler with integrated water separator immediately removes 100% of condensate – avoiding the risk of corrosion in downstream equipment and improving air quality compared to conventional cyclone separators.

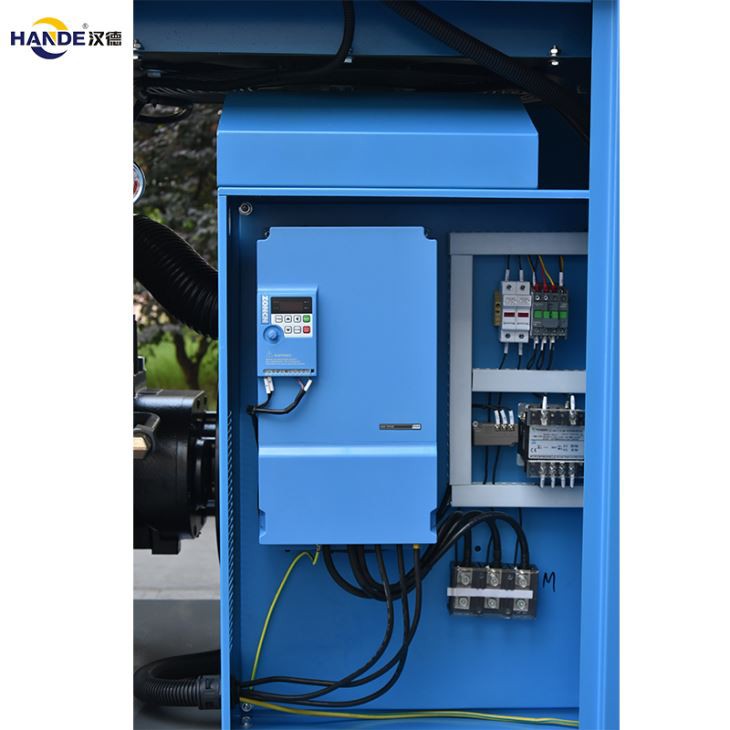

4.Electrical cubicle cooling booster.
- The main cooling fan cools the electrical cubicle, ensuring operating temperatures are strictly regulated even in ambient temperatures up to 55°C/131°F.*
5.Oil separator.
- Innovative filter material removes oil particles from the compressed air while minimizing pressure drop. This results in optimal air quality at the highest efficiency.
6.Inlet valve.
- The inlet valve is sized for maximum flow to eliminate any inefficient pressure drops.
- The valve is operated through vacuum and air pressure to offer superior reliability compared to spring operated inlet valves.
7.Inlet filter.
- A heavy duty air intake filter protects the compressor components by removing 99.9% of dirt particles down to 3 microns.
* Standard up to 46°C/114.8°F, optional high ambient version up to 55°C/131°F.
Technical Parameters
Model | Pressure(bar) | Max Working Pressure (bar) | Capacity FAD (m3/min) | Motor Power (KW) | NoiseLevel (dB(A)) |
HD50A | 7 | 7 | 6.8 | 35 | 71 |
8 | 8 | 6.5 | 35 | 71 | |
10 | 10 | 5.6 | 35 | 71 | |
12 | 12 | 5.2 | 35 | 71 |
Application
About us
Exhibition
Why choose us
Strict quality inspection system, no unqualified products will be sent to customers.
Have complete production equipment, experienced workers, quality assurance.
Control production cost, unit price will be competitive.
Complete orders on time, or even ahead of time.
We can offer constructive solutions according to your drawings.
If customers buy products from us that they don't know how to install, we can provide free installation instructions.
