Oil Lubricated Direct Driving Energ Saving Screw Air Compressor for Gas

Oil Lubricated Direct Driving Energ Saving Screw Air Compressor for Gas

Variable frequency air compressor and fan motor pump power saving, according to the load change, control the input voltage frequency, it can maintain the stability of pressure, flow, temperature and other parameters, thus greatly improving the performance of the compressor. Specifications:...

Product Introduction

Our company not only can provide high quality products, but also has strong technical force to develop new Power Frequency Screw Air Compressor, Permanent Magnet Variable Frequency Air Compressor, 1 Year Warranty Air Compressor 37kw. With the development of global marketing, emerging technology and cultural integration, our company has made great progress. With the emergence and development of information technology and knowledge economy, the process of globalization has been accelerating, which has promoted the pace of our company's comprehensive integration with the international market. We sincerely hope to establish business contacts with our customers, provide high-quality services, and start a business together. We stick to the principle of 'quality first, service first, continuous improvement and innovation to meet the customers' for the management and 'zero defect, zero complaints' as the quality objective.

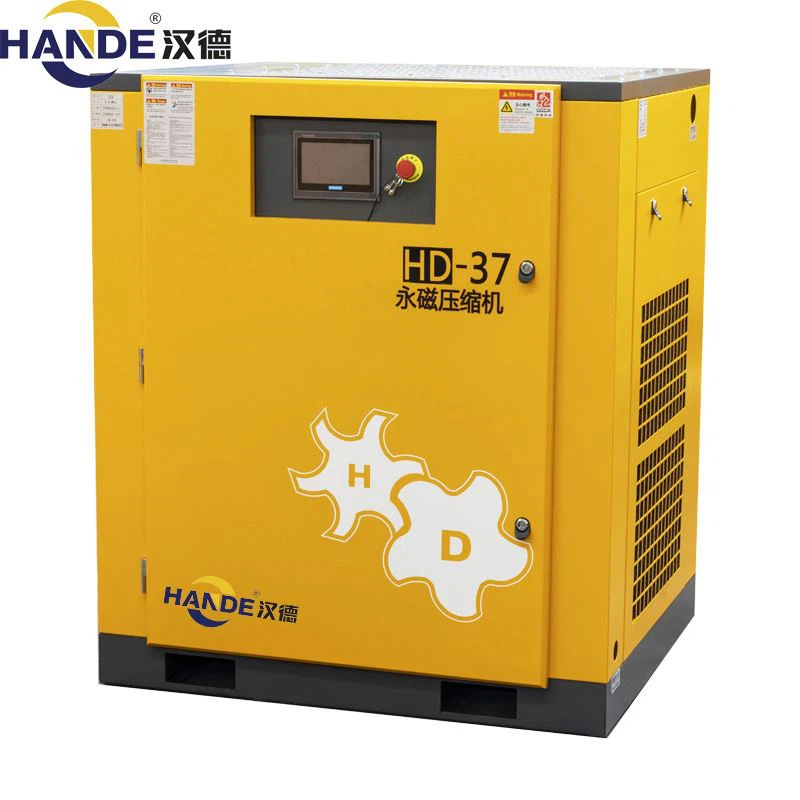

ModelHD-37
Working pressure:8bar10bar12bar
Air Delivery (m³/min)6.25.255
Air Delivery (CFM)219186177
Motor power37KW/50HP
Power voltage:380V/50hz/3phase (different voltage is available)
Compressor type:Fixed Speed Rotary Screw Air Compressor
Cooling ModeAir cooling
Starting modeStar-delta Start
Ambient temperature-5℃ ~ +45℃
Discharge temperature≤ Ambient temperature+15℃
Dimension (mm)1500*1000*1330
Product display:


Product advantage:

1. Reduce impact and operate reliably

2. Constant voltage power saving

3. The voltage adaptability of the AC power supply is strong

4. Low noise

Factors and control methods for the formation of carbon deposits in air compressors

The main factors for the formation of carbon deposits

1. High temperature: High temperature is a decisive factor for the oxidation and deterioration of lubricating oil. The higher the temperature, the faster the oxidation rate, and the greater the possibility of carbon deposits;

2. Pressure: After the air is compressed by an air compressor, the pressure increases and the oxygen concentration increases, which increases the oxidation rate of the oil and the possibility of formation of carbon deposits;

3. Metal catalysis: Metal has a positive catalytic effect on the oxidation reaction, which will accelerate the progress of the reaction;

4. Type of air compressor oil: The quality and amount of air compressor oil will affect the formation of carbon deposits to varying degrees. If mineral air compressor oil is used, the unsaturated components in the base oil are more likely to form carbon deposits. tendency.

Air compressor explosion accidents are mostly caused by the accumulation of carbon deposits. Carbon deposits are high-temperature products, but they will ignite spontaneously at high temperatures. Usually the spontaneous combustion temperature of carbon deposits is around 180°C, and the outlet temperature of air compressors is generally not higher than 160°C. Therefore, carbon deposits will not be ignited under normal operation. However, when some failures of the air compressor appear at momentary high temperature or high pressure, the temperature in the air compressor rises sharply, causing spontaneous combustion of carbon deposits, causing the oil in the carbon deposits to aporize rapidly. When the vaporized oil and gas and compressed air contain high concentrations of oxygen When high temperature exists at the same time, it will cause the compressor to explode and cause an accident. best deal on air compressor

Control of Carbon Deposit in Oil Sludge of Air Compressor

Aiming at the generation mechanism of harmful substances such as carbon deposits in air compressor sludge, the following effective measures can be taken to maintain good working conditions of the

air compressor:

1. Choose clean and high-quality air compressor oil, and replace the air compressor oil regularly according to maintenance requirements. According to the operating conditions and conditions, you can choose the air compressor oil of the V and IV synthetic oil formulations, at least you must use the air compressor oil based on the III highly refined hydrocarbon oil to avoid the use of insufficient saturation and impurities More I/II mineral oils. best deal on air compressor

2. Choose high-quality maintenance parts and materials, and replace them regularly according to maintenance requirements. High-quality and efficient use of oil, oil filter, air filter, can effectively filter external and internal pollution sources, to ensure the normal operation of the air compressor.

3. Maintaining normal working temperature and working pressure and ensuring effective ventilation of the air compressor station is a way to get twice the result with half the effort.

4. Adopt auxiliary cleaning method to keep the compressor clean, choose mature online cleaning fluid, and clean the air compressor regularly, which can keep the rotor and oil circuit of the machine head clean and prevent problems before they happen. best deal on air compressor

Company introduction

01

Production Capability

3.0

Corporate Qualifications

Global exhibition & Training

Packing and delivery

(1)

We have absorbed advanced technology and craftsmanship, improved the quality of Oil Lubricated Direct Driving Energ Saving Screw Air Compressor for Gas and production efficiency, and ensured its stability and durability. We not only produce traditional standard products, but also continue to adapt to customer needs and continually develop new varieties. Over the years, our company has adapted to the needs of enterprise development and market competition with advanced skills. Customer satisfaction is paramount. We aim for total quality performance with each and every order.
