Product Introduction
Small Compressed Air can be widely used in construction, food, medicine, energy, auto repair, energy, laser cutting and other industries. Its main components include oil pipeline, oil filter, oil and gas separator filter element, cooling lubricant, protective shutdown system, air filter element, oil cooler. This machine adopts microelectronic processing so that temperature, pressure and other parameters are closely monitored. Small Compressed Air achieves intelligent operation, effectively saves energy and extends the life of the system.
| Model | HD-22 | ||
| Working pressure: | 8bar | 10bar | 12bar |
| Air Delivery (m³/min) | 3.6 | 3.2 | 2.7 |
| Air Delivery (CFM) | 127 | 113 | 95 |
| Motor power | 22KW/30HP | ||
| Power voltage: | 380V/50hz/3phase (different voltage is available) | ||
| Compressor type: | Fixed Speed Rotary Screw Air Compressor | ||
| Cooling Mode | Air cooling | ||
| Starting mode | Star-delta Start | ||
| Ambient temperature | -5℃ ~ +45℃ | ||
| Discharge temperature | ≤ Ambient temperature+15℃ | ||
| Dimension (mm) | 1380*850*1160 | ||

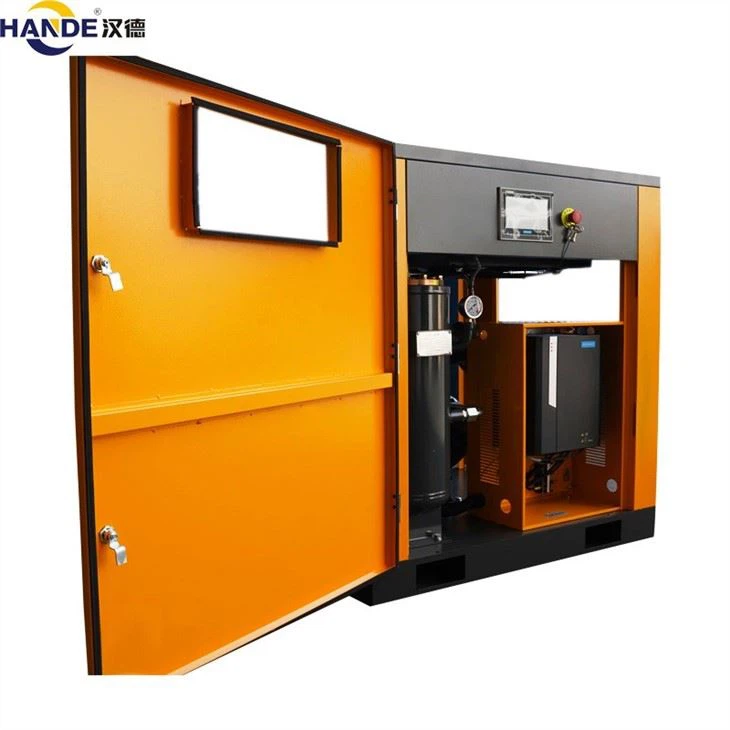

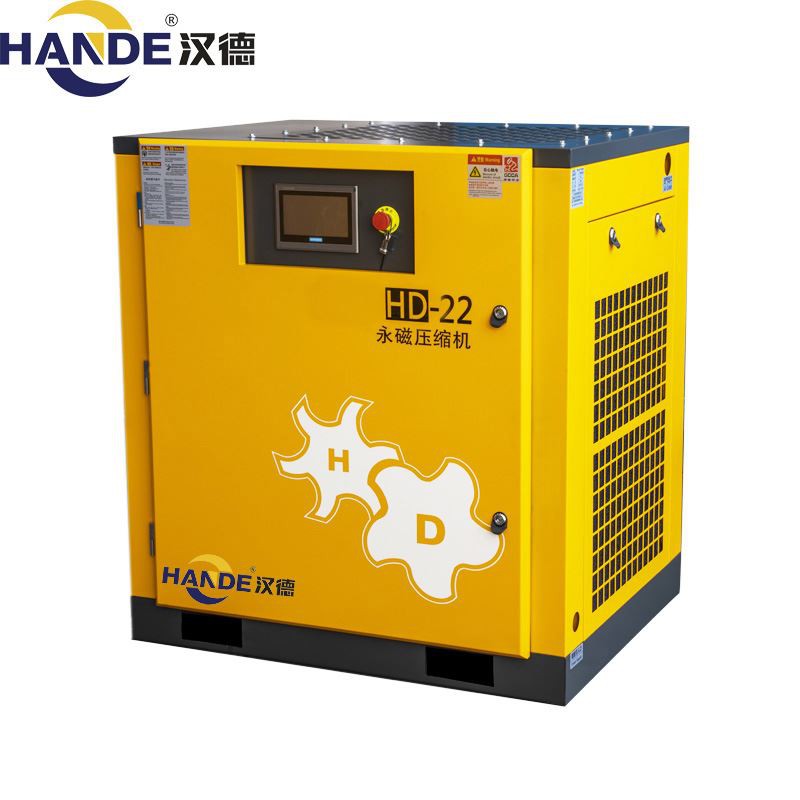

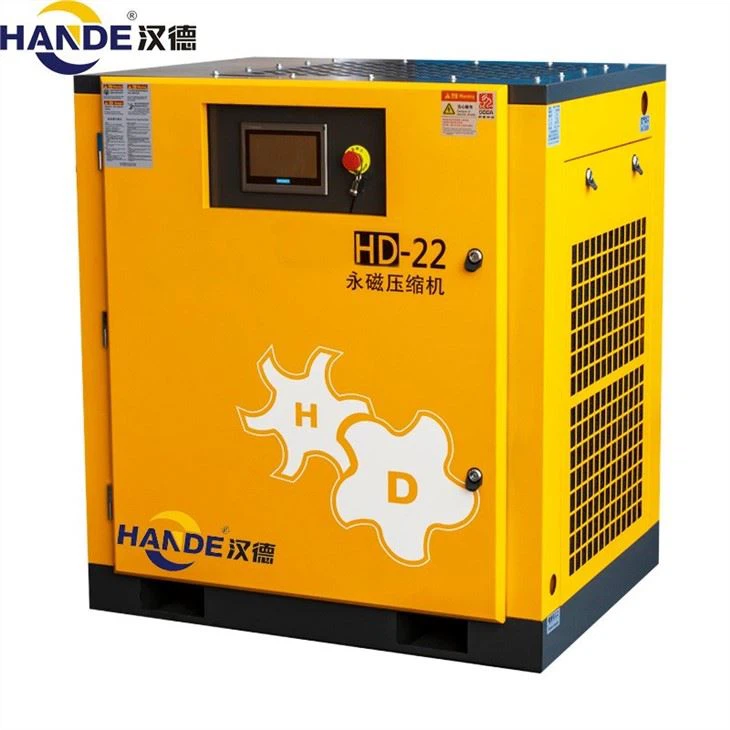

| Product display: |


| Product advantage: |
1. Small Compressed Air has the advantages of low energy consumption, low maintenance costs.
2. Intelligent PID function control.
3. Compact structure, 100% transmission efficiency.
4. Constant pressure gas supply, gas production depending on working conditions.
5. High-efficiency permanent magnet motor, super energy-saving.
6. Frequency conversion control of centrifugal cooling fan.
