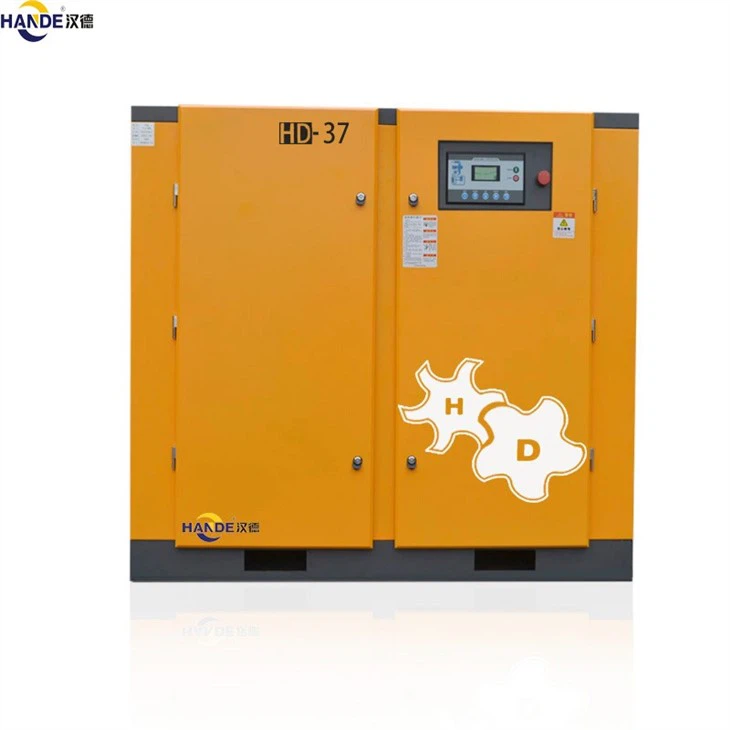

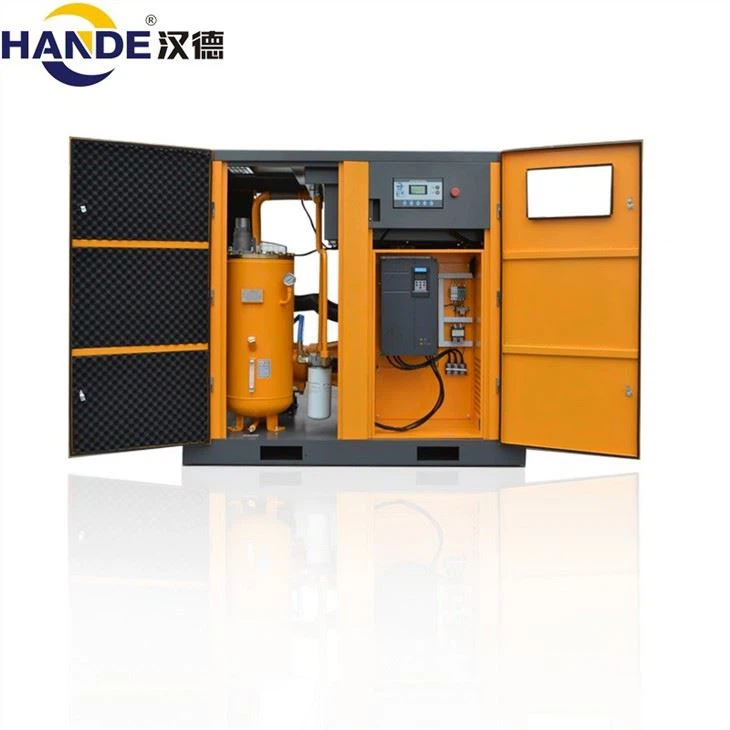

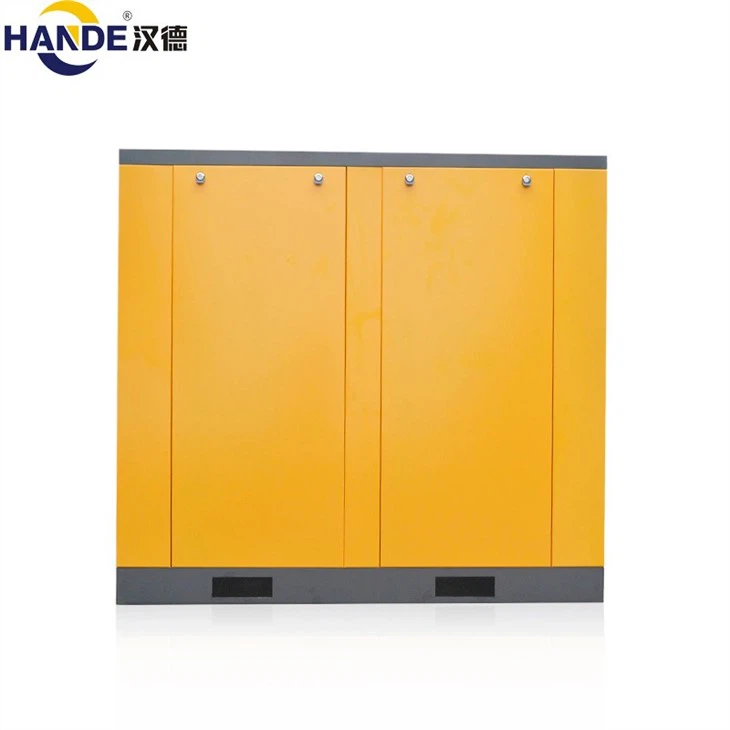

Our Air Compressor Energy Efficient, the perfect solution for all your compressed air needs! Our state-of-the-art design incorporates advanced energy-saving features that will significantly reduce your operating costs. With the latest technology to optimize energy consumption and reduce wasted energy. This not only saves you money on your energy bills but also reduces your carbon footprint, making it an environmentally friendly option.
One of the key features of our Air Compressor Energy Efficient is its variable speed drive (VSD) technology. This allows the compressor to adjust its speed based on the demand for compressed air, which means that it only uses the amount of energy required to meet that demand. This leads to significant energy savings compared to traditional fixed-speed compressors.
Additionally, our Air Compressor Energy Efficient has a highly efficient motor that is designed to minimize energy losses and maximize performance. The motor is also equipped with a cooling system that reduces its operating temperature, which further improves its energy efficiency and extends its lifespan. In summary, our Air Compressor is a high-performance and energy-efficient solution that is perfect for all your compressed air needs. It not only saves you money but also reduces your impact on the environment. Contact us today to learn more about how our Air Compressor Energy Efficient can benefit your business!
Characteristic
* Simple structure, small size, light weight, few parts (especially few wearing parts), high reliability
* Small torque change, high balance, small vibration, and stable operation, so it is easy to operate and easy to realize automation
* High efficiency within the range of parameter adaptation
*Continuous and stable gas transmission, reliable operation and clean gas source
Sr.No. | /Item Name | Unit | Datas | Remarks | |
1 | F.A.D/Pressure | （m3/min）/ MPa | 7.1/0.8 | ||
2 | Ambient Temperature | ℃ | -5～+45 | ||
3 | Cooling Mode | 风冷/Air Cooling | |||
4 | Discharge Temperature | ℃ | ≤环境温度+15 /≤Ambient Temperatur+15 | ||
5 | Oil Volume | L/kg | 22L | ||
6 | Driven Mode | 直联/Direct | |||
7 | Adjusting way of air capacity | ON/OFF | |||
8 | Oil Content in Discharge Air | ppm | ≤3 | ||
9 | Noise | dB(A) | 74±2 | ||
10 | Oil Brand | Shell,S46 | |||
11 | Safety valve setting pressure | MPa | x1.2 /Nominal Working Pressure x1.2 | ||
12 | Motor
| Motor Power | kW | 45 | |
Main Motor Nominal Rpm | rpm | 2960 | |||
Starting Mode | △Star-delta Start | ||||
Voltage/Frequency | V/Hz | 380/50 | |||
Protection Class/Insulation Class | IP23/F | ||||
13 | Fan
| Fan Power | kW | 1.3 | |
Voltage/Frequency | V/Hz | 380/50 | |||
Main Fan Nominal Rpm | rpm | 1440 | |||
Air Volume | m3/h | 8000 | |||
14 | /Dimentions | mm | 1500x1000x1330 | ||
15 | N.W | kg | 676 | ||
16 | Outlet Connection | in | Rp1,1/2 |
