| Model | HD-75 | ||
| Working pressure: | 8bar | 10bar | 12bar |
| Air Delivery (m³/min) | 12.6 | 11 | 9.5 |
| Air Delivery (CFM) | 445 | 389 | 336 |
| Motor power | 75KW/100HP | ||
| Power voltage: | 380V/50hz/3phase (different voltage is available) | ||
| Compressor type: | Fixed Speed Rotary Screw Air Compressor | ||
| Cooling Mode | Air cooling | ||
| Starting mode | Star-delta Start | ||
| Ambient temperature | -5℃ ~ +45℃ | ||
| Discharge temperature | ≤ Ambient temperature+15℃ | ||
| Dimension (mm) | 1800*1250*1670 | ||

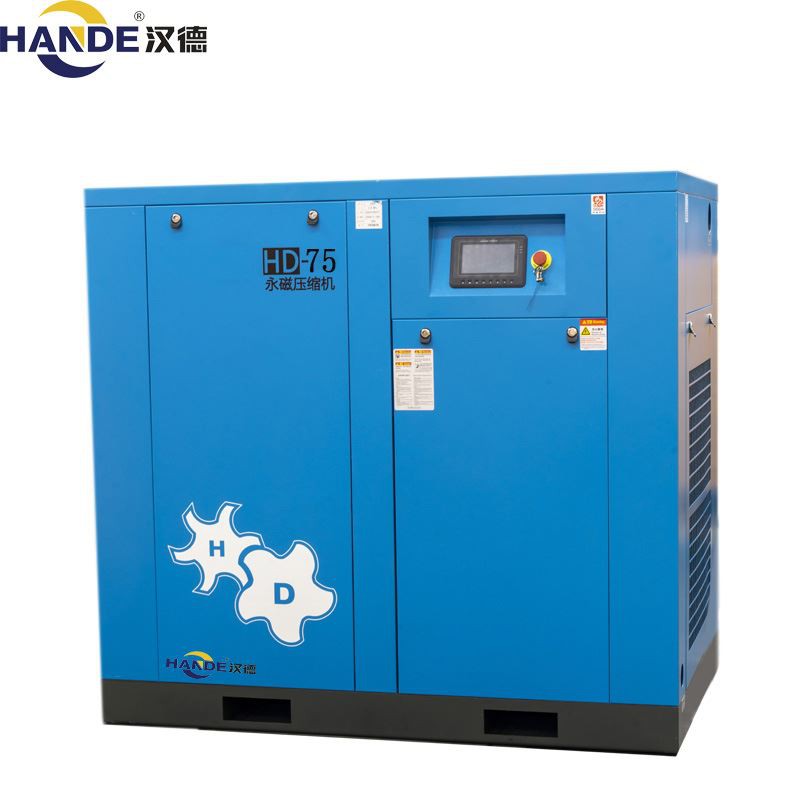

| Product display： |
| Product advantage: |
1. Adopt reliable PM motor supplier.
2. Direct Taper connection, no transmission power loss, easy maintenance.
3. Touch Screen PLC with preset running schedule, more intelligent control.
4. Both main motor and fan motor are inverter control, more accurate control.
5. Easy for installation and service.
Several characteristics of air compressor oil
Choosing a good oil can also extend the service life of the air compressor, so what are the characteristics of a good oil?
Features 1. Good anti-emulsification, anti-corrosion and anti-foaming properties. Compressor oil is easily mixed with condensate and air to emulsify and deteriorate the oil, increase mechanical corrosion, wear, and oxidize the oil, so it is required to have good Demulsibility, corrosion resistance and oxidation resistance. 75HP Air Compression Machine
Features 2. Suitable viscosity. Proper viscosity can make the screw air compressor play a good role in lubrication, cooling and sealing under the working temperature and pressure, and ensure the normal operation of the compressor.
Feature 3. The carbon deposit has good directional properties. The exhaust system has carbon deposits, which will make the exhaust valve not close tightly. At the same time, the cooling effect is poor, the exhaust temperature will rise, the compressor will malfunction, or even catch fire or explode. Therefore, the compressor is required to have a good carbon deposit tendency. 75HP Air Compression Machine
Feature 4. Good oxidation stability. Since the discharge temperature of the compressor is usually between 120°C and 200°C, and may reach 300°C, the air compressor oil is easily oxidized at high temperatures and deteriorated to form sludge. 75HP Air Compression Machine
