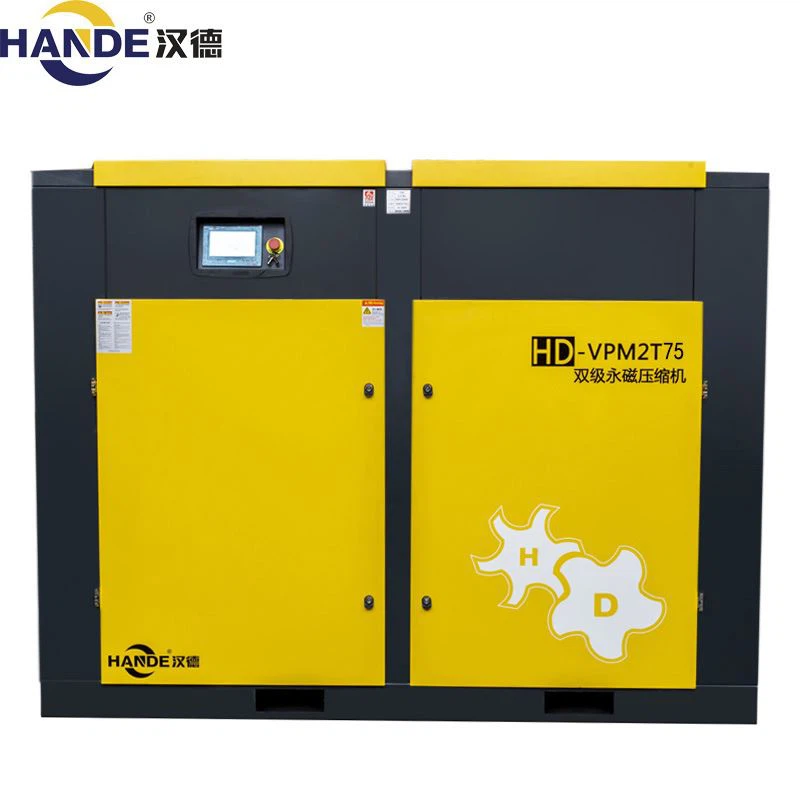

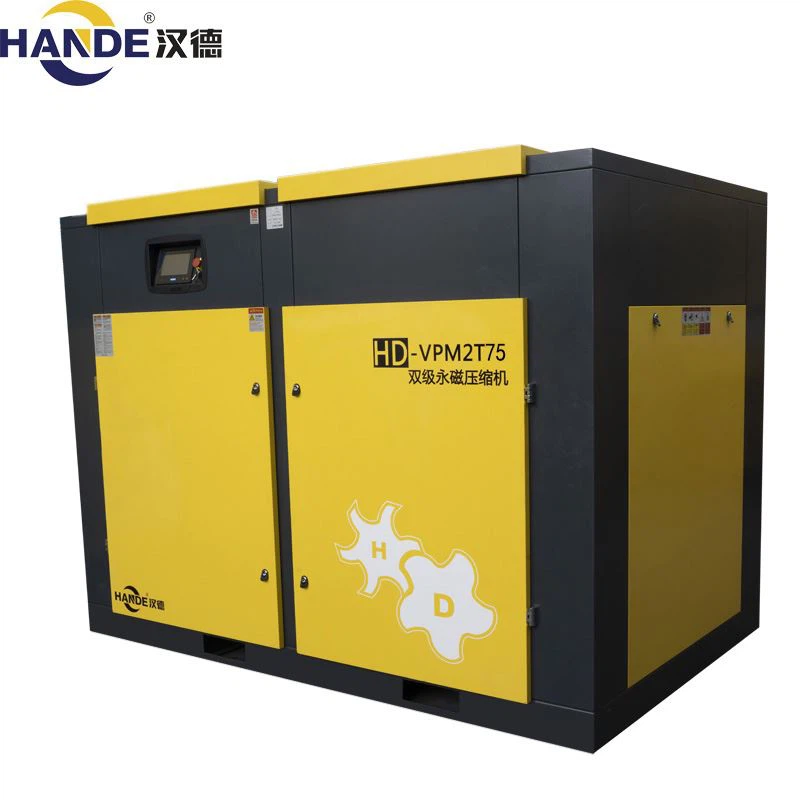

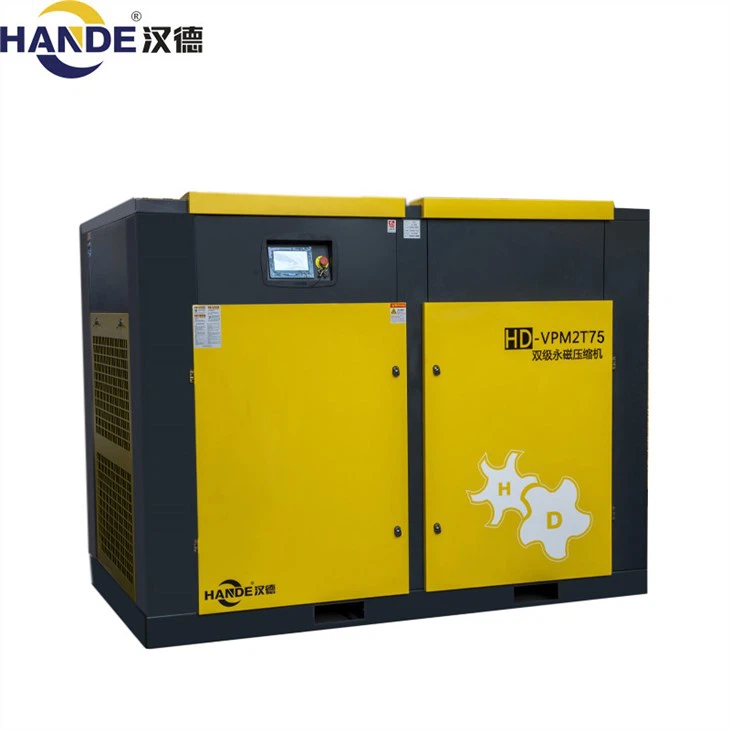

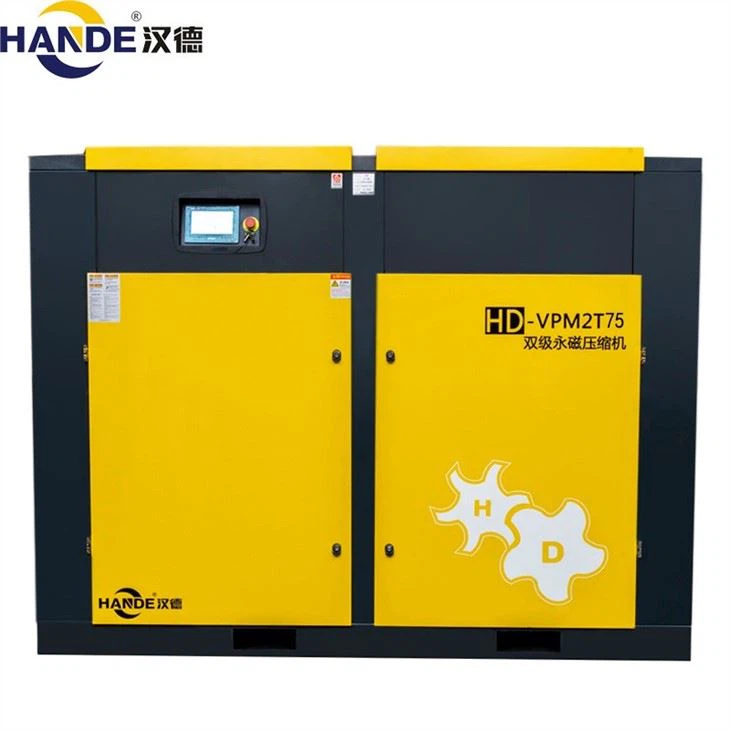

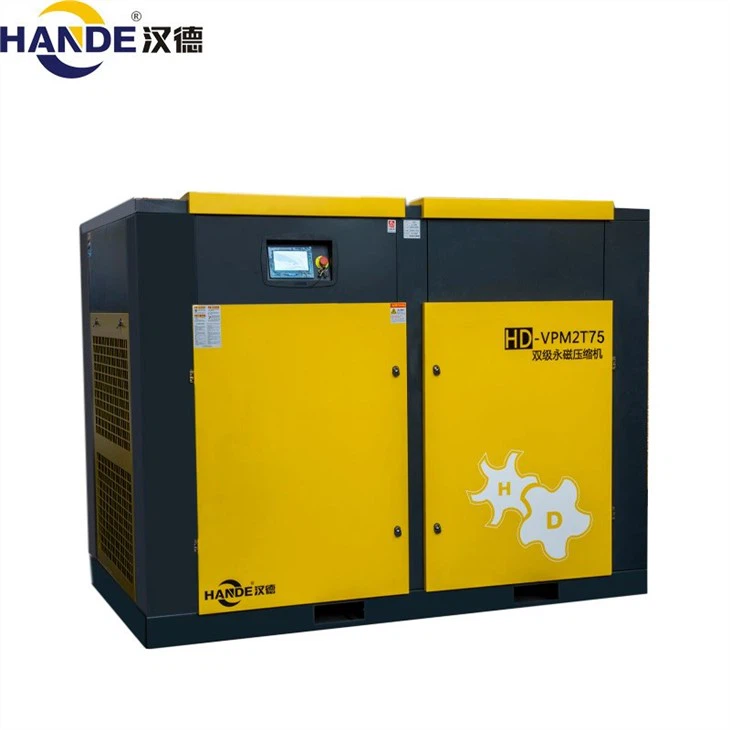

| Model | HD-VPM2T75 | ||
| Working pressure: | 8bar | 10bar | 12bar |
| Air Delivery (m³/min) | 16.3 | 12.4 | 11 |
| Air Delivery (CFM) | 574 | 437 | 388 |
| Motor power | 75KW/100HP | ||
| Power voltage: | 380V/50hz/3phase (different voltage is available) | ||
| Compressor type: | Two stage Permanent magnet VSD screw air compressor | ||
| Cooling Mode | Air cooling | ||
| Starting mode | Variable Frequency start | ||
| Ambient temperature | -5℃ ~ +45℃ | ||
| Discharge temperature | ≤Ambient temperature+15℃ | ||
| Dimension (mm) | 2180*1390*1660 |
Oil lubricated two-stage variable speed rotary screw air compressor 55-250KW (75-350HP)
two stage screw compressor

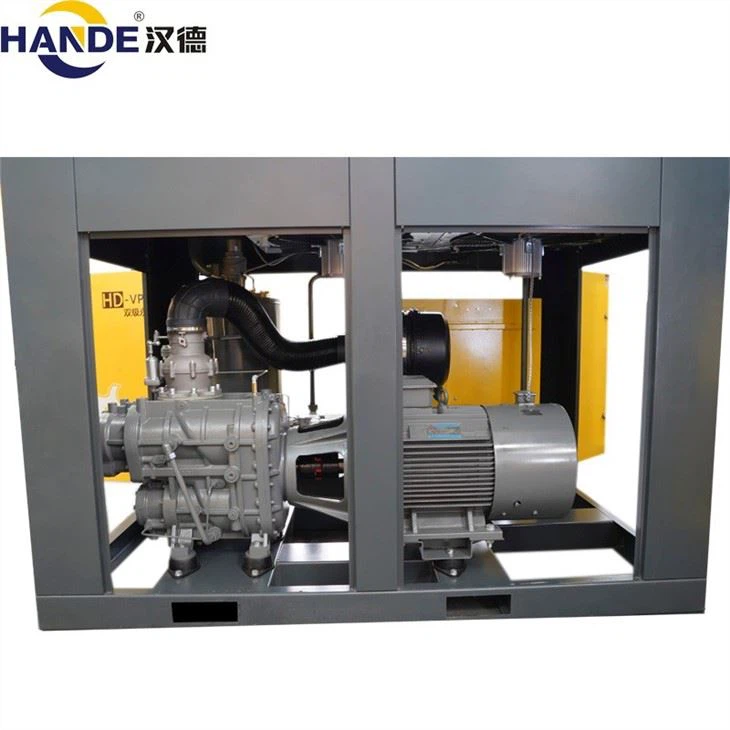

The two-stage rotary screw compressor is the most efficient compressor in the world. Designed to deliver tremendous energy savings, the compressor matches the compressed air supply to the specific needs of your system. The machine consists of two independent compressor rotors and a drive system that minimizes the power required to compress the air in the rotary screw compressor.
two stage screw compressor
The two-stage lubricated rotor compresses the air in two steps. The first or first stage compresses the atmosphere air to the discharge pressure target. The second or second stage inhales the air at the interstage pressure and compresses it to the discharge pressure target. Two-stage compression increases efficiency, but adds cost and complexity to additional rotors, iron, and other components. The improved efficiencies result in larger dollar savings when air use is large.
Contact us for inquiry!
| Product display： |
| Product advantage: |
Oil lubricated two-stage variable speed rotary screw air compressor 55-250KW (75-350HP)
The two-stage rotary screw compressor is the most efficient compressor in the world. Designed to deliver tremendous energy savings, the compressor matches the compressed air supply to the specific needs of your system. The machine consists of two independent compressor rotors and a drive system that minimizes the power required to compress the air in the rotary screw compressor.
The two-stage lubricated rotor compresses the air in two steps. The first or first stage compresses the atmosphere air to the discharge pressure target. The second or second stage inhales the air at the interstage pressure and compresses it to the discharge pressure target. Two-stage compression increases efficiency, but adds cost and complexity to additional rotors, iron, and other components. The improved efficiencies result in larger dollar savings when air use is large.
