PM Type Rotary Screw Compressor

PM type rotary screw compressor is also named permanent magnet variable frequency air compressor. It USES the energy saving controller, simultaneously monitors more than 20 parameters, the current, the voltage, the speed, the torque, the electricity consumption, the system intelligence degree is...

Chat Now

PM type rotary screw compressor is also named permanent magnet variable frequency air compressor.

It USES the energy saving controller, simultaneously monitors more than 20 parameters, the current, the voltage, the speed, the torque, the electricity consumption, the system intelligence degree is very high. Make the air system more stable and reliable, reduce the downtime, reduce the loss of production.


Specifications:

Brand:

Hande

Model:

HD20PMA

Power:

15kw

Airend:

Hanbell/BSC

Capacity:

2.65~2.95m³/min

Pressure:

7~10bar

Electricity:

380V/50HZ

Protection class:

IP23/IP54 only for motor

Driven mode:

Direct

Starting Mode:

Variable frequency starting

Dimension:

1080*750*1000mm

Net weight:

260kgs

Noise:

Low noise

Warranty:

1 year for whole machine, 2years for airend.

Shipping port:

Shengzhen Yantian

Packing:

Inner PE film, outside wooden case





Advantages

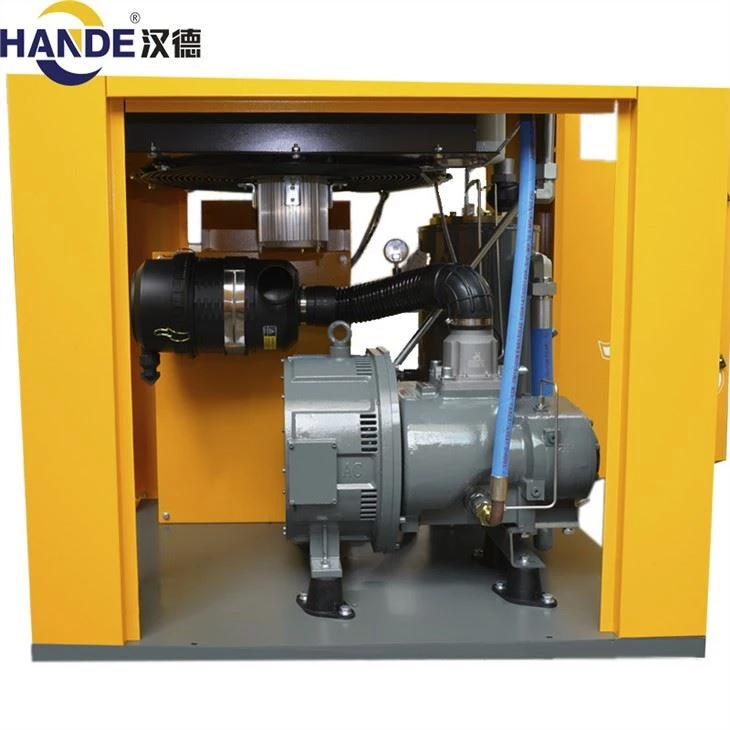

Permanent magnet frequency screw air compressor adopts rare earth permanent magnet synchronous motor direct drive screw host, 120 ℃ with magnetic, life up to 10 years.Permanent magnet frequency conversion air compressor screw host and motor share the same spindle, no belt, coupling, transmission efficiency of 100%. Motor bearing, eliminate motor bearing fault point.
