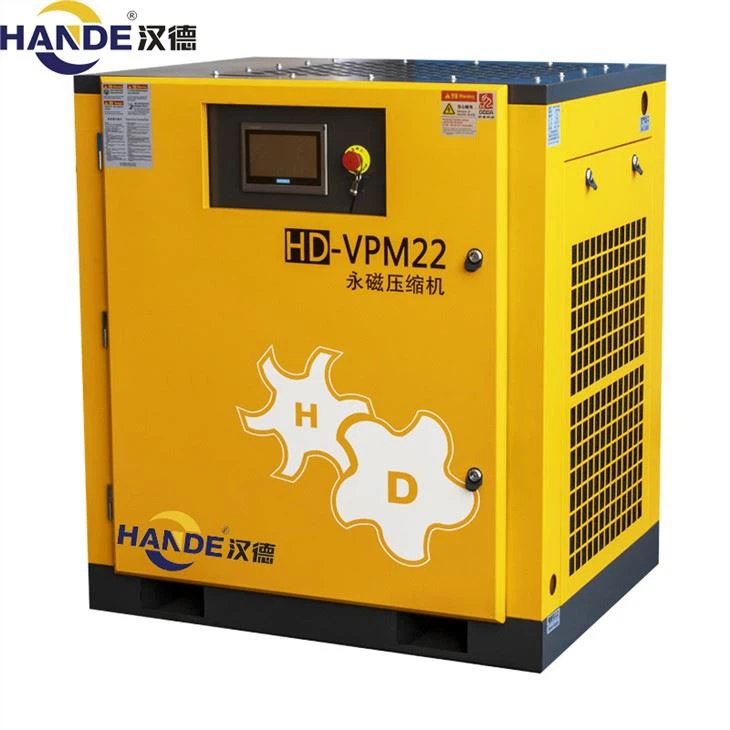

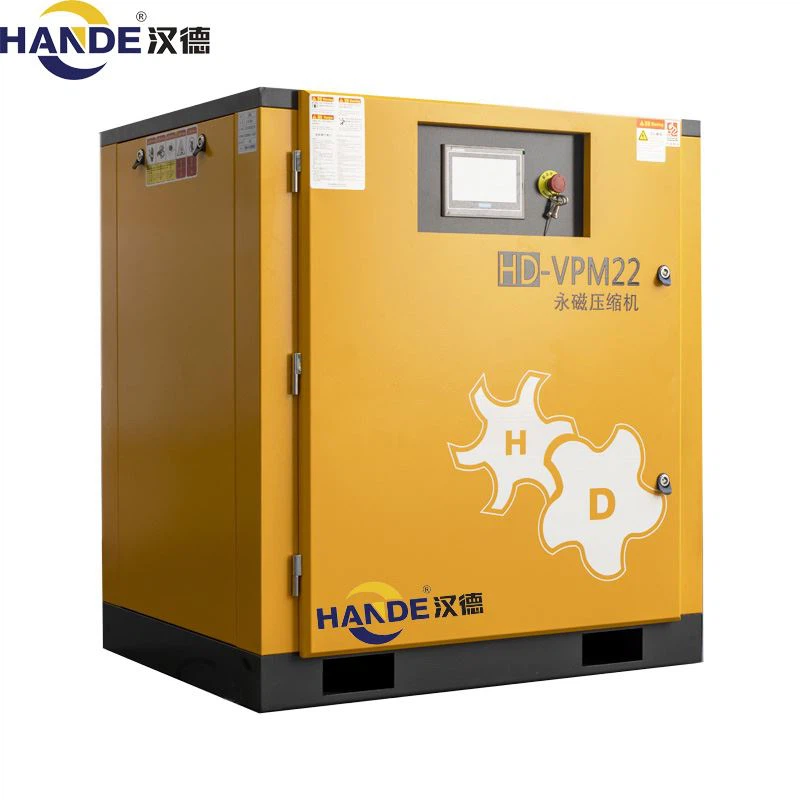

| Model | HD-VPM22 | ||
| Working pressure: | 8bar | 10bar | 12bar |
| Air Delivery (m³/min) | 3.6 | 3.2 | 2.7 |
| Air Delivery (CFM) | 127 | 113 | 95 |
| Motor power | 22KW/30HP | ||
| Power voltage: | 380V/50hz/3phase (different voltage is available) | ||
| Compressor type: | Two stage Permanent magnet VSD screw air compressor | ||
| Cooling Mode | Air cooling | ||
| Starting mode | Variable Frequency start | ||
| Ambient temperature | -5℃ ~ +45℃ | ||
| Discharge temperature | ≤Ambient temperature+15℃ | ||
| Dimension (mm) | 1080*850*1200 | ||
| Product display: |



| Product advantage: |
SCREW AIREND design adopts the third generation of screw model line, in accordance with the idea of large rotor, large bearing, low speed, all models are used. 22KW 30HP 460V rotary screw compressor
A pair of continuous design, low speed to reduce the failure rate, to ensure a long service life of the host.
Adopt direct driven mode, high transmission efficiency, reliable imported coupling, easy to install, elastomer stress uniformity, long life.
When the intake of the main engine is closed and the exhaust is opened, the positions of the oil injection port and oil return port are designed according to the latest research results. The internal pressure ratio is reasonable and the oil and gas heat exchange is sufficient.
Low speed, low noise, reduce the stimulation to the eardrum, effectively protect human health.
The machine structure is compact, mature and reliable, easy to assemble and maintain.
22KW 30HP 460V rotary screw compressor
