The refrigerated dryer matching with the air compressor should not be placed in the sun, rain, wind or relative humidity greater than 85% of the place.Do not place in dusty, corrosive or flammable gas environment.Do not place in a place where there is a risk of vibration or condensation of water.Do not get too close to the wall to avoid poor ventilation.It is necessary to use in the corrosive gas environment, should choose copper tube after rust treatment of the freeze dryer or stainless steel heat exchanger type freeze dryer.It should be used in the environment temperature below 40℃.
Attention should be paid to the configuration of the refrigerated dryer matching with the air compressor:

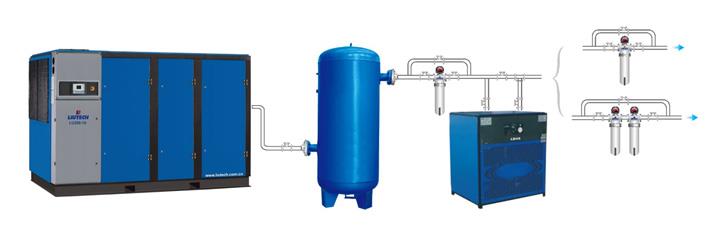

Air compressor output of compressed air and refrigerated dryer inlet do not connect wrong.In order to facilitate maintenance, bypass pipelines should be set up to ensure maintenance space.The vibration of air compressor should be prevented from passing to freeze dryer.Do not add piping weight directly to the freeze dryer.
With the air compressor matching the refrigerated dryer drainage pipes do not stand up, do not discount or squashed.
The allowable fluctuation of the voltage of the refrigerated drying machine is less than ±10%.Leakage circuit breakers with appropriate capacity should be installed.Grounding is required before use.
Matching with air compressor refrigeration type compressed air dryer inlet temperature is too high, the environmental temperature is too high (more than 40 ℃), use the traffic over the rated air quantity, voltage fluctuation more than plus or minus 10%, poor ventilation (winter also want to take a breath, room temperature can also rise) cases, such as protection circuit will play a role, lights out, stop running.
When the air pressure is higher than 0.15mpa, the drain of the normally open automatic drainer can only be closed.Air compressor drainage is too small, the drain in the open state, there is air blowing out.
If the compressed air produced by the air compressor is of poor quality, such as mixed with dust and oil, the stolen goods will stick to the heat exchanger, reducing its working efficiency, and the drainage is easy to fail.You want to install a filter at the inlet of the freeze dryer and make sure to drain at least once a day.
The vents of the freeze dryer are vacuumed once a month.
Turn on the power supply. After the running state is stable, turn on the compressed air.After stopping operation, it must wait for more than 3min before starting again.
